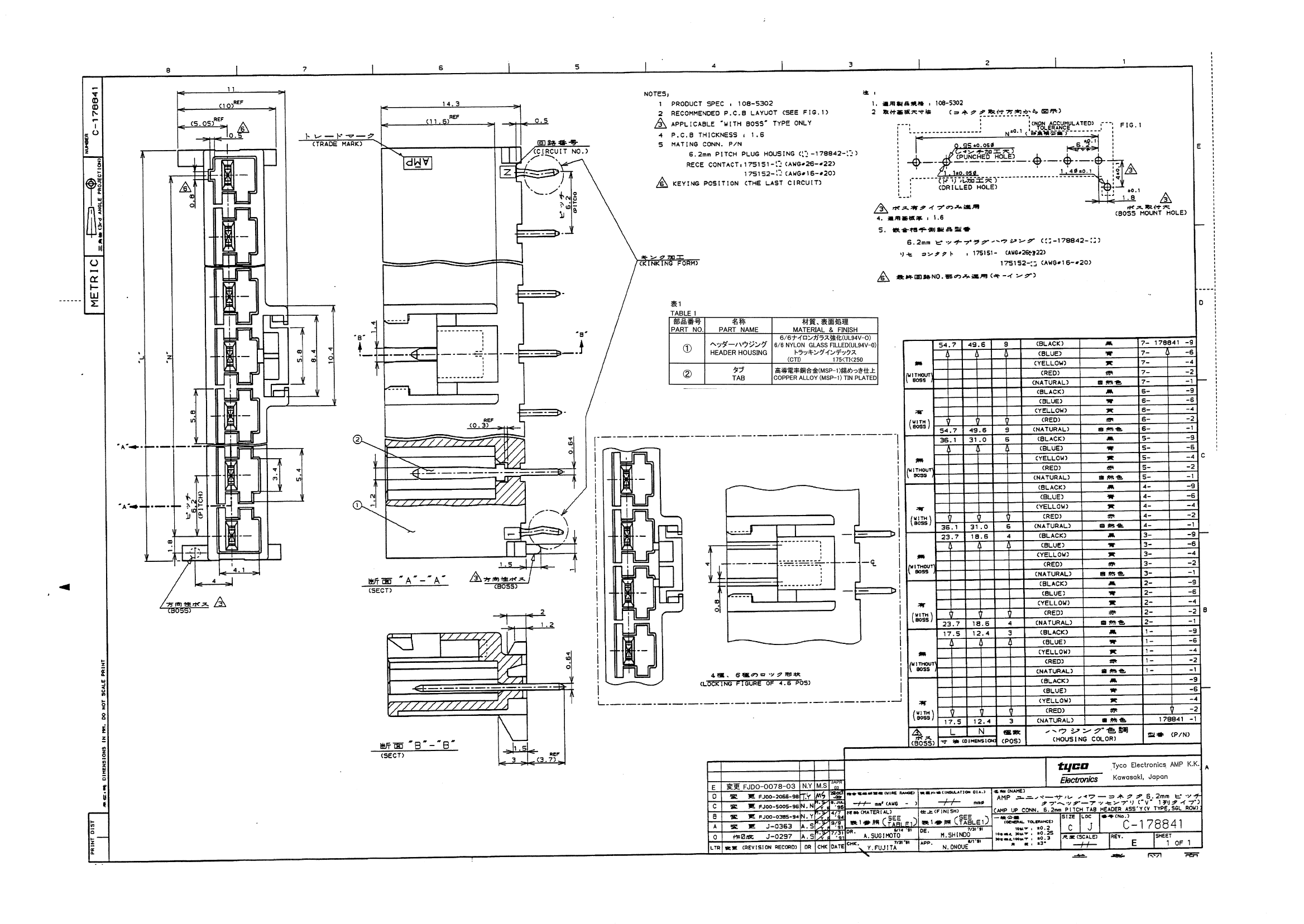

4 CONTACT(S), MALE, POWER CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | POLARIZED |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact point gender | MALE |
| DIN compliance | NO |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 178841 |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation type | BOARD |
| Options | GENERAL PURPOSE |
| Shell material | GLASS FILLED POLYAMIDE66 |
| Termination type | SOLDER |
| Total number of contacts | 4 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 3-178841-1 | NTR12A5300CTRF | NTR12B2641DTR1KF | NTR12C1240STRF | NTR12C2641CTR1KF | |
|---|---|---|---|---|---|
| Description | 4 CONTACT(S), MALE, POWER CONNECTOR, SOLDER | Fixed Resistor, Thin Film, 0.125W, 530ohm, 150V, 0.05% +/-Tol, 25ppm/Cel, Surface Mount, 1206, CHIP | Fixed Resistor, Thin Film, 0.125W, 2640ohm, 150V, 0.1% +/-Tol, -50,50ppm/Cel, 1206, | Fixed Resistor, Thin Film, 0.125W, 124ohm, 150V, 0.25% +/-Tol, 5ppm/Cel, Surface Mount, 1206, CHIP | Fixed Resistor, Thin Film, 0.125W, 2640ohm, 150V, 0.25% +/-Tol, -25,25ppm/Cel, 1206, |
| Reach Compliance Code | unknown | compliant | compliant | compliant | compliant |
| Is it Rohs certified? | - | conform to | conform to | conform to | conform to |
| Objectid | - | 228527939 | 228530458 | 279962512 | 228534200 |
| package instruction | - | SMT, 1206 | SMT, 1206 | SMT, 1206 | SMT, 1206 |
| Country Of Origin | - | Japan, Mainland China, Taiwan | Japan, Mainland China, Taiwan | Japan, Mainland China, Taiwan | Japan, Mainland China, Taiwan |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 |
| YTEOL | - | 8.45 | 7.35 | 7.65 | 7.45 |
| structure | - | Rectangular | Rectangular | Rectangular | Rectangular |
| JESD-609 code | - | e3 | e3 | e3 | e3 |
| Installation features | - | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Number of terminals | - | 2 | 2 | 2 | 2 |
| Maximum operating temperature | - | 155 °C | 155 °C | 155 °C | 155 °C |
| Minimum operating temperature | - | -55 °C | -55 °C | -55 °C | -55 °C |
| Package height | - | 0.55 mm | 0.55 mm | 0.55 mm | 0.55 mm |
| Package length | - | 3.05 mm | 3.05 mm | 3.05 mm | 3.05 mm |
| Package form | - | SMT | SMT | SMT | SMT |
| Package width | - | 1.55 mm | 1.55 mm | 1.55 mm | 1.55 mm |
| method of packing | - | TR, Paper, 7 Inch | TR, Paper, 7 Inch | TR, Paper, 7 Inch | TR, Paper, 7 Inch |
| Rated power dissipation(P) | - | 0.125 W | 0.125 W | 0.125 W | 0.125 W |
| Rated temperature | - | 70 °C | 70 °C | 70 °C | 70 °C |
| resistance | - | 530 Ω | 2640 Ω | 124 Ω | 2640 Ω |
| Resistor type | - | FIXED RESISTOR | FIXED RESISTOR | FIXED RESISTOR | FIXED RESISTOR |
| size code | - | 1206 | 1206 | 1206 | 1206 |
| surface mount | - | YES | YES | YES | YES |
| technology | - | THIN FILM | THIN FILM | THIN FILM | THIN FILM |
| Temperature Coefficient | - | 25 ppm/°C | 50 ppm/°C | 5 ppm/°C | 25 ppm/°C |
| Terminal surface | - | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Terminal shape | - | WRAPAROUND | WRAPAROUND | WRAPAROUND | WRAPAROUND |
| Tolerance | - | 0.05% | 0.1% | 0.25% | 0.25% |
| Operating Voltage | - | 150 V | 150 V | 150 V | 150 V |
