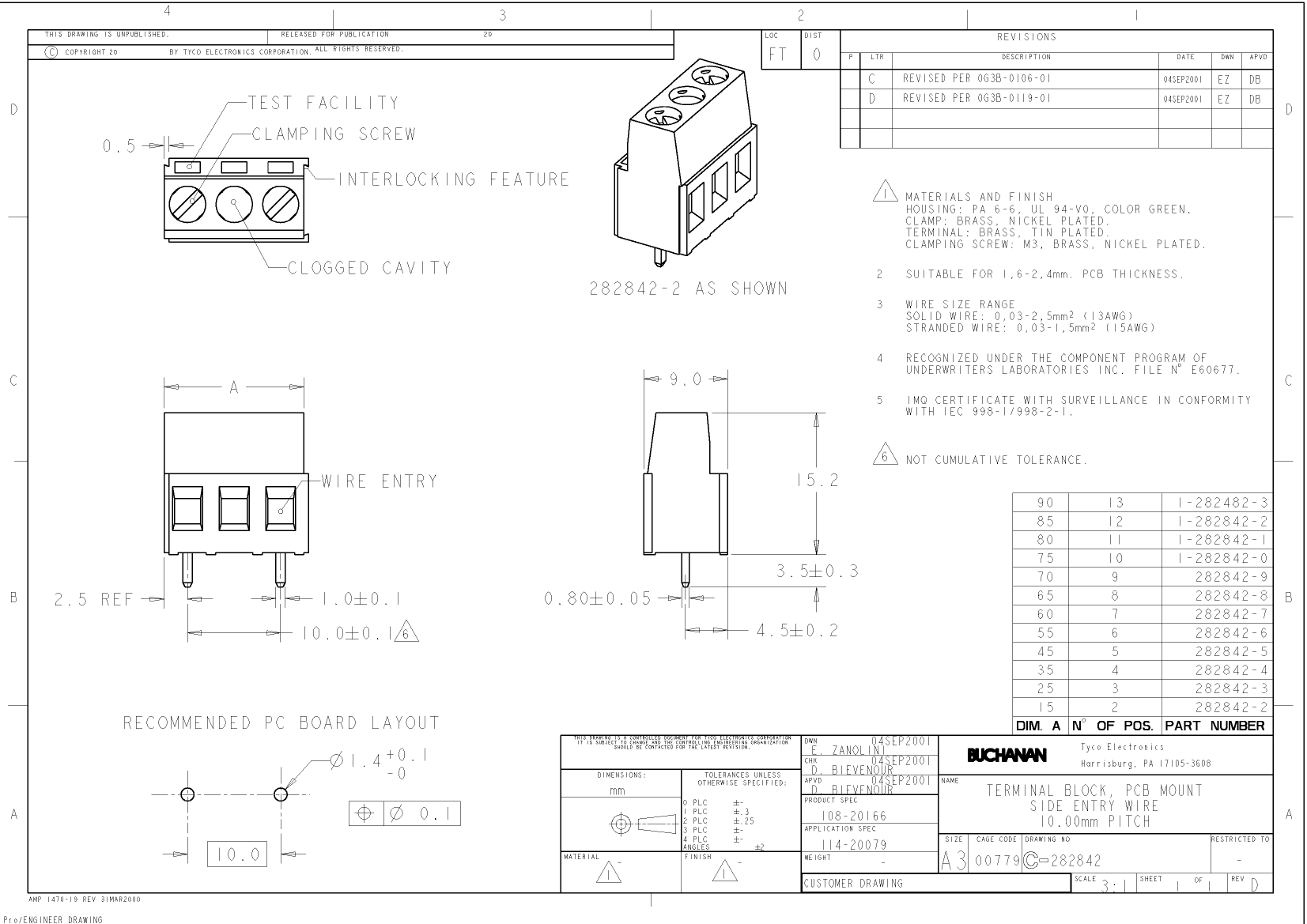

Preview

1-282842-2: Description17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size41KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-282842-2 Overview

17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK

1-282842-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	PA66, 94V-0
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	12
Rated current	17.5 A
Rated voltage	600 V
safety certificate	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

1-282842-2 Related Products

	1-282842-2	282842-5	282842-6	282842-7	282842-8	282842-9	1-282842-0	1-282842-1	1-282842-3
Description	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK	17.5A, MODULAR TERMINAL BLOCK, 1 ROW, 1 DECK
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	PA66, 94V-0	PA66, 94V-0	PA66, 94V-0	PA66, 94V-0	PA66, 94V-0	PA66, 94V-0	PA66, 94V-0	PA66, 94V-0	PA66, 94V-0
Fastening method	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of layers	1	1	1	1	1	1	1	1	1
Rows	1	1	1	1	1	1	1	1	1
Number of channels	12	5	6	7	8	9	10	11	13
Rated current	17.5 A	17.5 A	17.5 A	17.5 A	17.5 A	17.5 A	17.5 A	17.5 A	17.5 A
Rated voltage	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V	600 V
safety certificate	UL	UL	UL	UL	UL	UL	UL	UL	UL
Terminal and terminal strip types	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK	MODULAR TERMINAL BLOCK
Conductor cross section	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2
Wire gauge	12 AWG	12 AWG	12 AWG	12 AWG	12 AWG	12 AWG	12 AWG	12 AWG	12 AWG
Base Number Matches	1	1	1	1	1	1	-	-	1
