1-282832-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1-282832-4

Preview

1-282832-4: Description13 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-282832-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-282832-4	-	-	View	Buy Now

1-282832-4 Overview

13 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

1-282832-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Other features	UNSHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5 mm
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

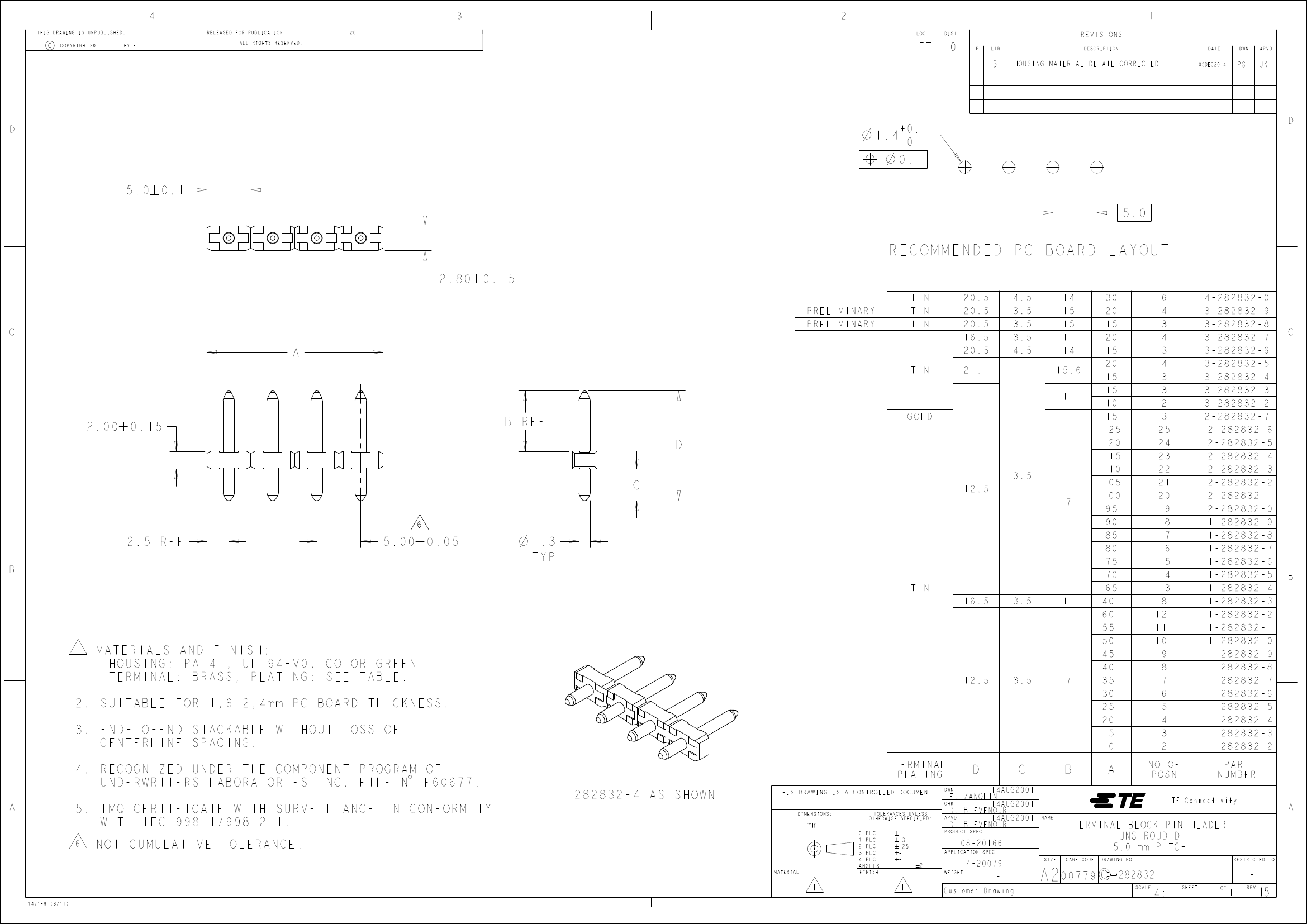

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

FT

0

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

H5

HOUSING MATERIAL DETAIL CORRECTED

05DEC2014

PS

JK

D

1.4

+0.1

0

D

5.0

0.1

5.0

RECOMMENDED PC BOARD LAYOUT

2.80

0.15

PRELIMINARY

TIN

20.5

16.5

20.5

TIN

21.1

4.5

3.5

4.5

14

15

11

14

15.6

11

15

30

20

15

20

15

20

15

10

6

4

3

4

3

2

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

5

4

3

2

NO OF

POSN

6

8

3

4

4-282832-0

3-282832-9

3-282832-8

3-282832-6

3-282832-5

3-282832-4

3-282832-3

3-282832-2

2-282832-7

2-282832-6

3-282832-7

C

A

2.00

0.15

B REF

D

C

6

GOLD

125

120

115

12.5

3.5

7

110

105

100

95

90

85

80

75

70

16.5

3.5

11

40

60

55

50

45

12.5

3.5

7

40

35

25

20

15

10

30

65

2-282832-5

2-282832-4

2-282832-3

2-282832-2

2-282832-0

1-282832-9

1-282832-8

1-282832-7

1-282832-6

1-282832-5

1-282832-4

2-282832-1

2.5 REF

B

5.00

0.05

1.3

TYP

TIN

B

1-282832-3

1-282832-2

1-282832-1

1-282832-0

282832-9

282832-8

282832-6

282832-5

282832-4

282832-3

282832-2

PART

NUMBER

282832-7

1

MATERIALS AND FINISH:

HOUSING: PA 4T, UL 94-V0, COLOR GREEN

TERMINAL: BRASS, PLATING: SEE TABLE.

2. SUITABLE FOR 1,6-2,4mm PC BOARD THICKNESS.

3. END-TO-END STACKABLE WITHOUT LOSS OF

CENTERLINE SPACING.

4. RECOGNIZED UNDER THE COMPONENT PROGRAM OF

UNDERWRITERS LABORATORIES INC. FILE N $ E60677.

A

TERMINAL

PLATING

D

DWN

C

B

A

5. IMQ CERTIFICATE WITH SURVEILLANCE IN CONFORMITY

WITH IEC 998-1/998-2-1.

6

282832-4 AS SHOWN

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

mm

NOT CUMULATIVE TOLERANCE.

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

.3

.25

-

14AUG2001

E. ZANOLINI

CHK

14AUG2001

D. BIEVENOUR

APVD

14AUG2001

D. BIEVENOUR

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

A

108-20166

114-20079

SIZE

2

WEIGHT

1

1471-9 (3/11)

1

-

Customer Drawing

A2

00779

CAGE CODE

TERMINAL BLOCK PIN HEADER

UNSHROUDED

5.0 mm PITCH

DRAWING NO

RESTRICTED TO

282832

SCALE

4:1

SHEET

1

OF

1

REV

-

H5
