3-1546700-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 3-1546700-4

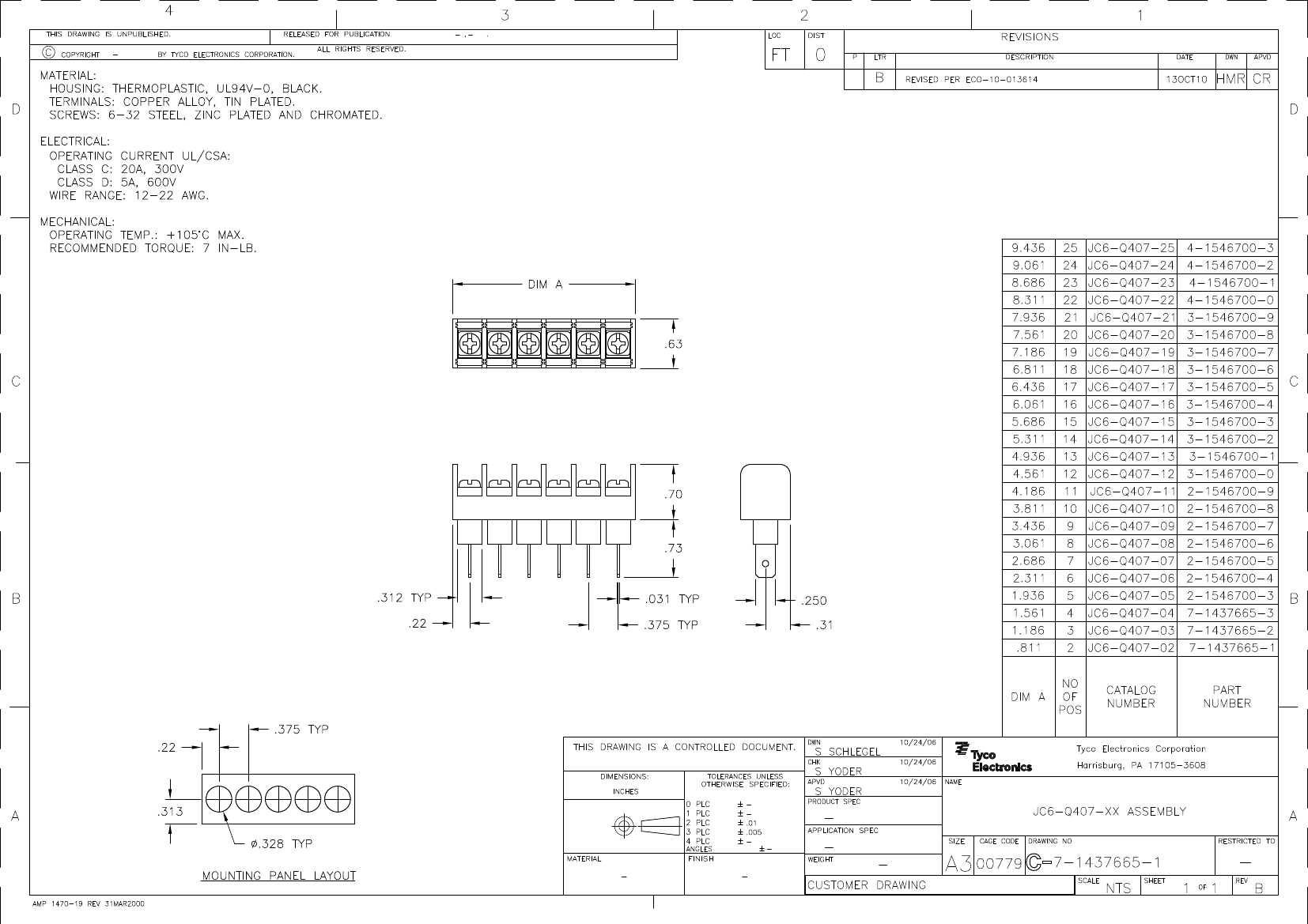

3-1546700-4: Description20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK; CategoryThe connector terminals; File Size84KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-1546700-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1546700-4	-	-	View	Buy Now

3-1546700-4 Overview

20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

3-1546700-4 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	POLYETHYLENE, 94V-0
Fastening method	SCREW
Manufacturer's serial number	1546700
Installation type	CABLE AND PANEL
Number of layers	1
Rows	1
Number of channels	16
Rated current	20 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

3-1546700-4 Related Products

	3-1546700-4	RK73H2ALTED2104F	RK73H2ARTTD1472F	3-1546700-3	RK73H2ARTTD1581D	RK73H2ARTTDD18R7F	RK73H2ARTTE1820F	3-1546700-8	3-1546700-9
Description	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 2100000ohm, 150V, 1% +/-Tol, 400ppm/Cel, Surface Mount, 0805, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 14700ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 1580ohm, 150V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 18.7ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 182ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
Reach Compliance Code	unknown	not_compliant	compliant	unknown	compliant	compliant	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLYETHYLENE, 94V-0	PRECISION	ANTI-SULFUR, IEC60115-8	POLYETHYLENE, 94V-0	ANTI-SULFUR, IEC60115-8	ANTI-SULFUR	ANTI-SULFUR, IEC60115-8	POLYETHYLENE, 94V-0	POLYETHYLENE, 94V-0
Is it Rohs certified?	-	incompatible	conform to	-	conform to	conform to	conform to	-	-
Objectid	-	2128354507	1990233159	-	1990232930	1990232008	1990231252	-	-
package instruction	-	CHIP	SMT, 0805	-	CHIP	CHIP	CHIP	-	-
YTEOL	-	2	7.75	-	8.2	7.75	7.75	-	-
structure	-	Rectangular	Rectangular	-	Rectangular	RECTANGULAR PACKAGE	Rectangular	-	-
JESD-609 code	-	e0	e3	-	e3	e3	e3	-	-
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-
Number of terminals	-	2	2	-	2	2	2	-	-
Maximum operating temperature	-	155 °C	155 °C	-	155 °C	155 °C	155 °C	-	-
Minimum operating temperature	-	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-
Package height	-	0.5 mm	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	-	-
Package length	-	2 mm	2 mm	-	2 mm	2 mm	2 mm	-	-
Package form	-	SMT	SMT	-	SMT	SMT	SMT	-	-
Package width	-	1.25 mm	1.25 mm	-	1.25 mm	1.25 mm	1.25 mm	-	-
method of packing	-	TR, EMBOSSED PLASTIC, 10 INCH	TR, PUNCHED PAPER, 7 INCH	-	TR, PUNCHED PAPER, 7 INCH	TR, PAPER, 10 INCH	TR, EMBOSSED PLASTIC, 7 INCH	-	-
Rated power dissipation(P)	-	0.25 W	0.25 W	-	0.25 W	0.25 W	0.25 W	-	-
Rated temperature	-	70 °C	70 °C	-	70 °C	70 °C	70 °C	-	-
Guideline	-	AEC-Q200	AEC-Q200	-	AEC-Q200	AEC-Q200	AEC-Q200	-	-
resistance	-	2100000 Ω	14700 Ω	-	1580 Ω	18.7 Ω	182 Ω	-	-
Resistor type	-	FIXED RESISTOR	FIXED RESISTOR	-	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	-	-
size code	-	0805	0805	-	0805	0805	0805	-	-
surface mount	-	YES	YES	-	YES	YES	YES	-	-
technology	-	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	-	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	-	-
Temperature Coefficient	-	400 ppm/°C	100 ppm/°C	-	100 ppm/°C	100 ppm/°C	100 ppm/°C	-	-
Terminal surface	-	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier	MATTE TIN OVER NICKEL	-	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	-	-
Terminal shape	-	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	-
Tolerance	-	1%	1%	-	0.5%	1%	1%	-	-
Operating Voltage	-	150 V	150 V	-	150 V	150 V	150 V	-	-
