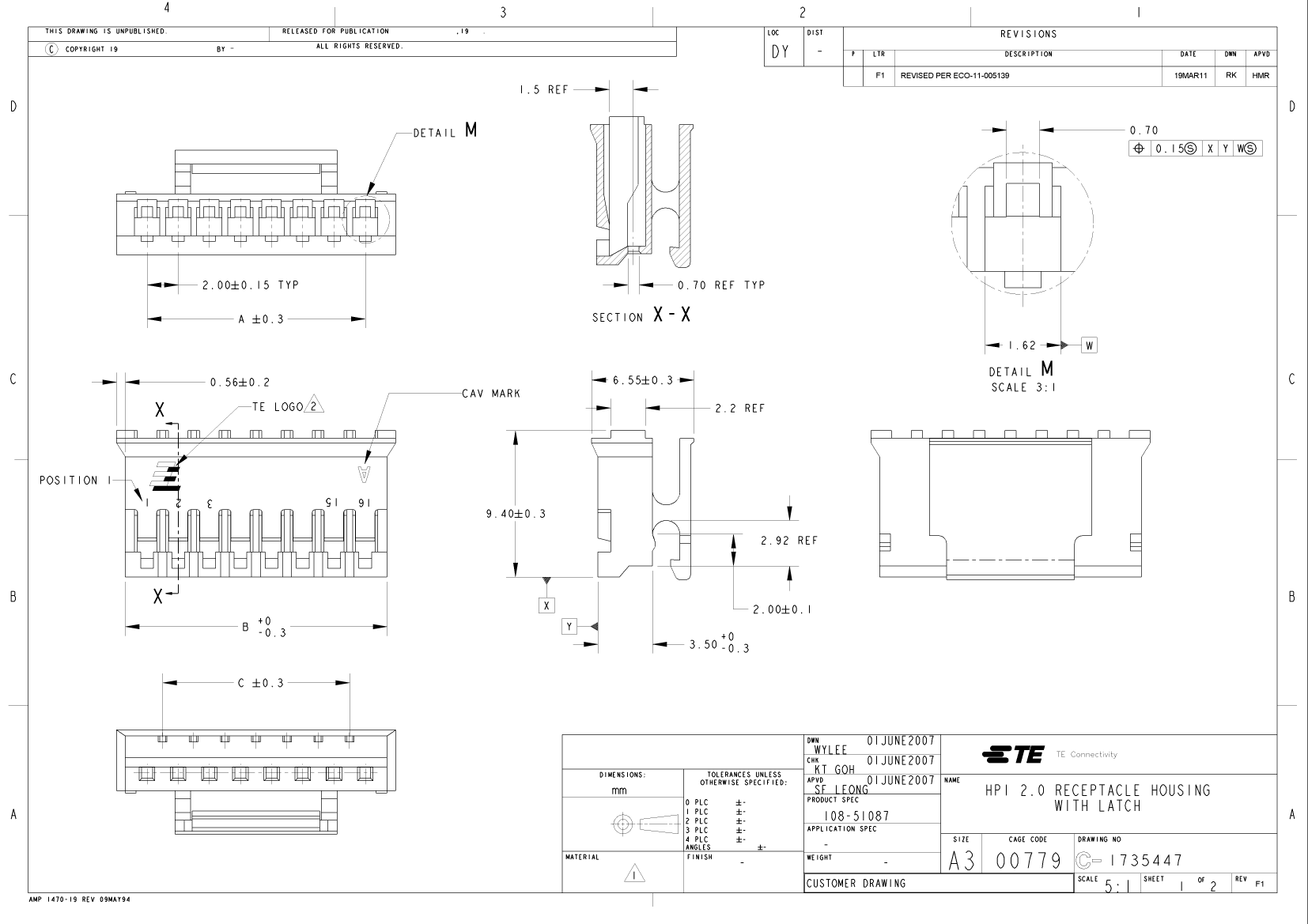

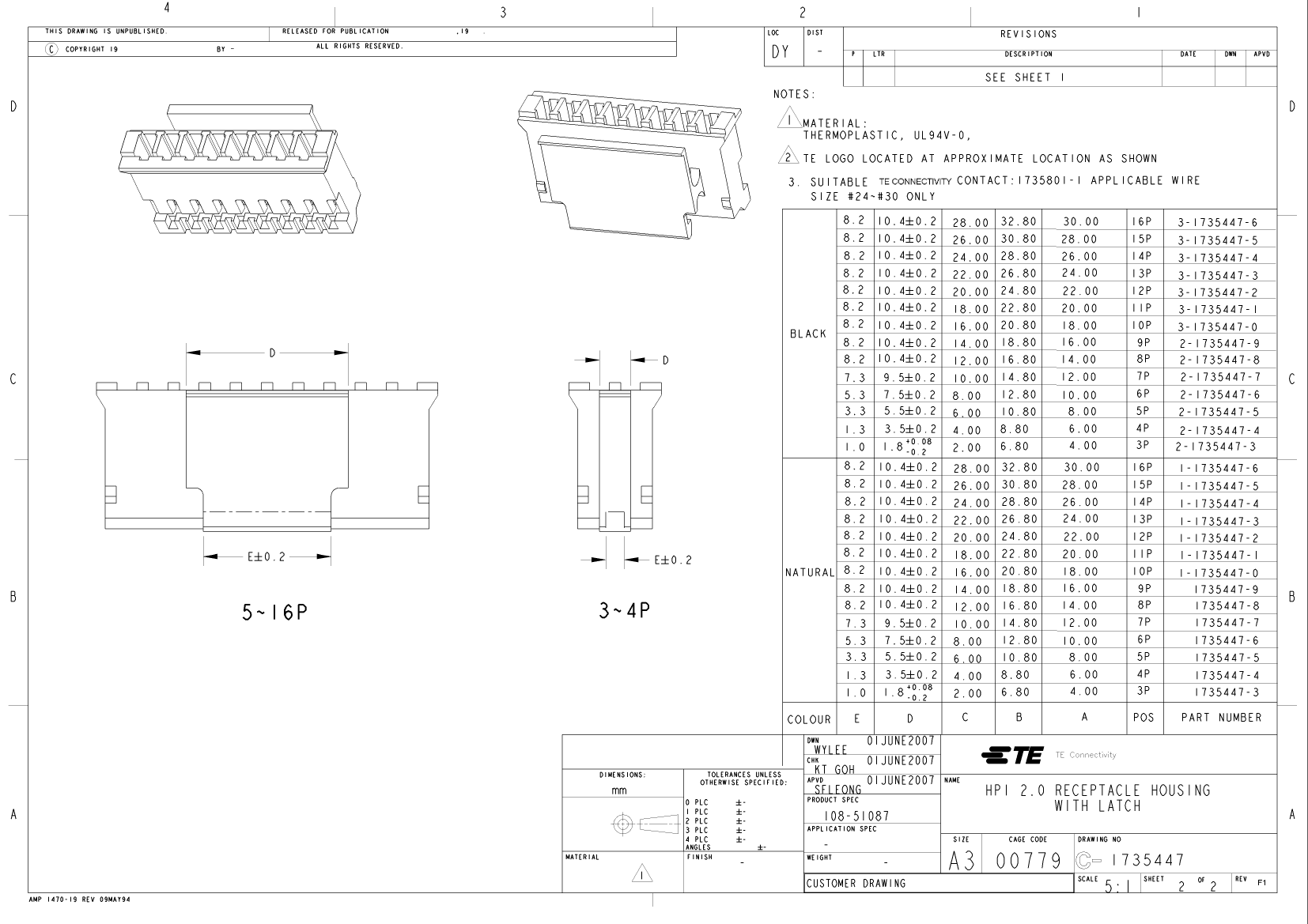

3-1735447-5: DescriptionHEADER CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LATCH,BLACK; CategoryThe connector The connector; File Size95KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-1735447-5 Overview

HEADER CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LATCH,BLACK

Parameter Name	Attribute value
Objectid	308262426
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
body width	0.258 inch
subject depth	0.37 inch
body length	1.257 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
Filter function	NO
maximum insertion force	6.672 N
Minimum insulation diameter	0.035 inch
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
Termination type	CRIMP
Total number of contacts	15
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.7784 N

	3-1735447-5	3-1735447-6
Description	HEADER CONNECTOR,CABLE MNT,RECEPT,15 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LATCH,BLACK	HEADER CONNECTOR,CABLE MNT,RECEPT,16 CONTACTS,SKT,0.079 PITCH,CRIMP TERMINAL,LATCH,BLACK
Objectid	308262426	308262425
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
body width	0.258 inch	0.258 inch
subject depth	0.37 inch	0.37 inch
body length	1.257 inch	1.335 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	50 Cycles	50 Cycles
Filter function	NO	NO
maximum insertion force	6.672 N	6.672 N
Minimum insulation diameter	0.035 inch	0.035 inch
Insulation resistance	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK
insulator material	POLYETHYLENE	POLYETHYLENE
Plug contact pitch	0.079 inch	0.079 inch
Mixed contacts	NO	NO
Installation option 1	LATCH	LATCH
Installation option 2	LOCKING	LOCKING
Installation type	CABLE	CABLE
Number of connectors	ONE	ONE
Number of rows loaded	1	1
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A
Guideline	UL	UL
Termination type	CRIMP	CRIMP
Total number of contacts	15	16
Maximum wire diameter	24 AWG	24 AWG
Minimum wire diameter	30 AWG	30 AWG
Evacuation force-minimum value	.7784 N	.7784 N
