1-1825002-9 datasheet, PDF - EEWORLD Datasheet

1-1825002-9: DescriptionSLIDE DIP SWITCH-12SWITCHES, SPST, LATCHED,0.1A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; File Size166KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

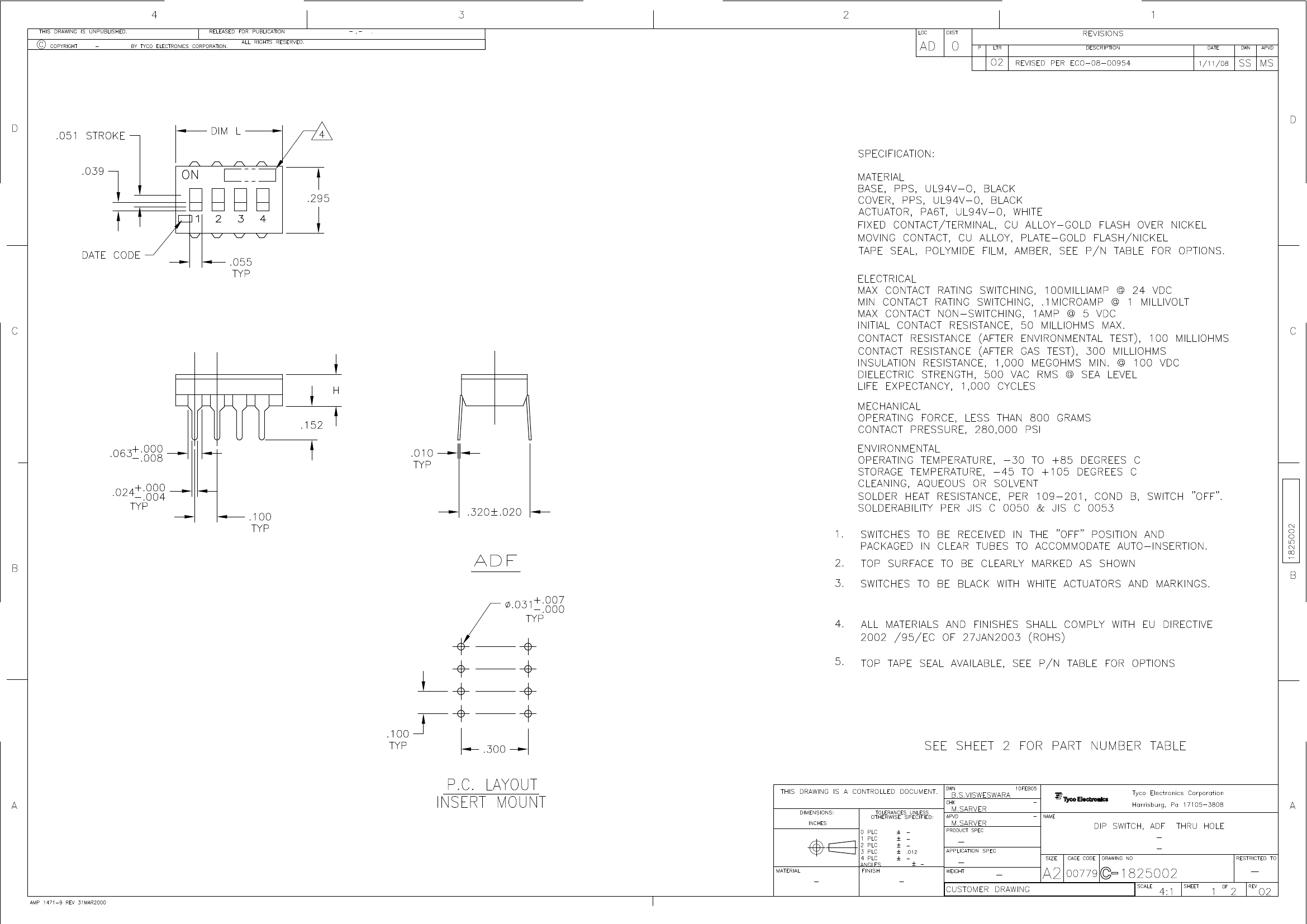

1-1825002-9 Overview

SLIDE DIP SWITCH-12SWITCHES, SPST, LATCHED,0.1A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1736650666
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	7.1
body width	7.49 mm
body height	3.61 mm
Body length or diameter	32.51 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@24VDC
Maximum contact voltage (DC)	24 V
Electrical life	1000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	12
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TUBE
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Termination type	SOLDER

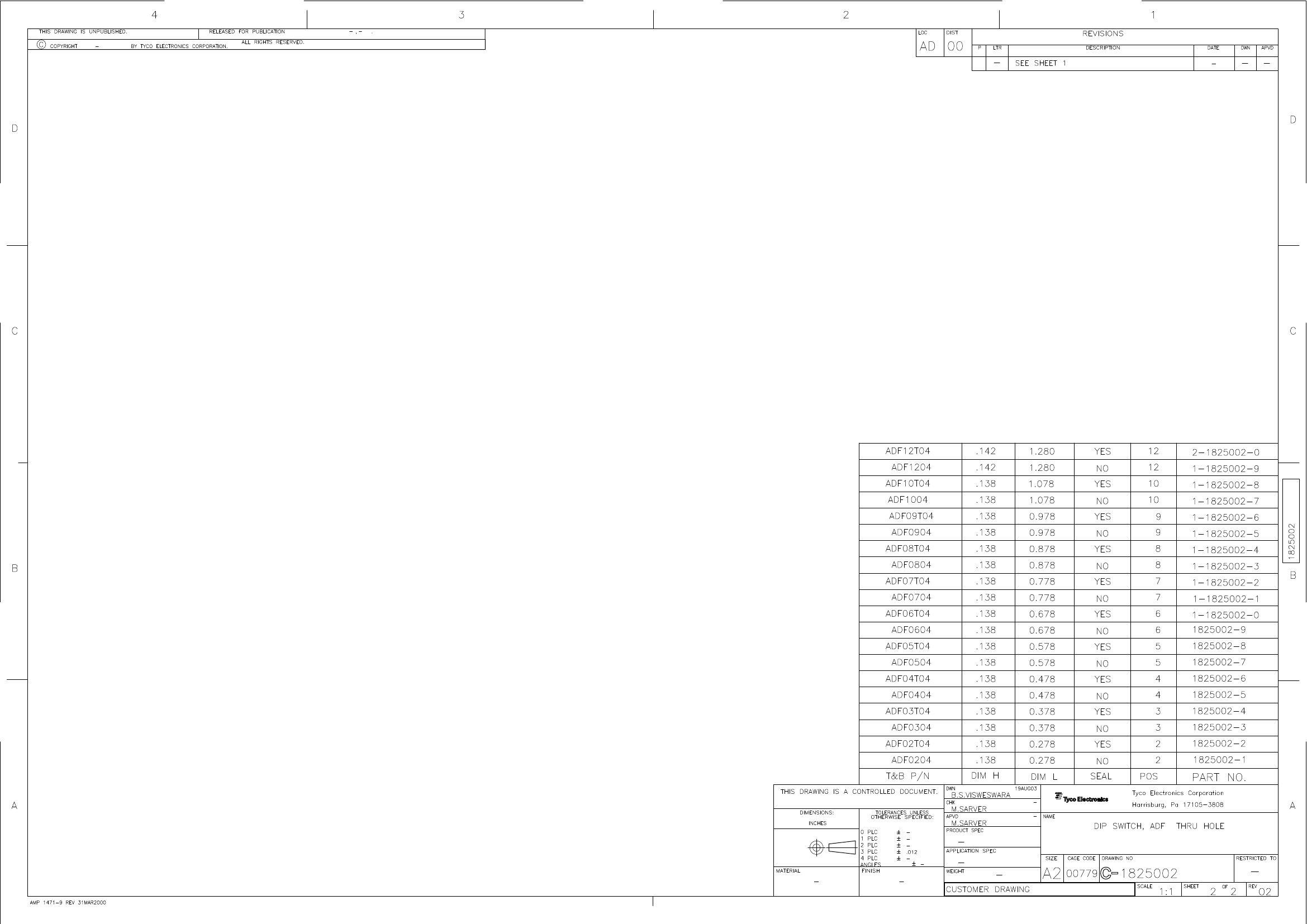

	1-1825002-9	RK73B2BTTE391J	RN732ALTD4322A05
Description	SLIDE DIP SWITCH-12SWITCHES, SPST, LATCHED,0.1A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.25W, 390ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 0.1W, 43200ohm, 100V, 0.05% +/-Tol, 5ppm/Cel, Surface Mount, 0805, CHIP
Is it Rohs certified?	conform to	conform to	incompatible
Objectid	1736650666	2019203391	1675063254
package instruction	ROHS COMPLIANT	SMT, 1206	CHIP
Reach Compliance Code	unknown	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
YTEOL	7.1	7.65	1.31
Installation features	THROUGH HOLE-STRAIGHT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	155 °C	155 °C
Minimum operating temperature	-30 °C	-55 °C	-55 °C
method of packing	TUBE	TR, EMBOSSED PLASTIC, 7 INCH	TR, PUNCHED PAPER, 7 INCH
surface mount	NO	YES	YES
Is it lead-free?	-	Lead free	Contains lead
structure	-	Rectangular	Rectangular
JESD-609 code	-	e3	e0
Number of terminals	-	2	2
Package height	-	0.6 mm	0.5 mm
Package length	-	3.2 mm	2 mm
Package form	-	SMT	SMT
Package width	-	1.6 mm	1.25 mm
Rated power dissipation(P)	-	0.25 W	0.1 W
Rated temperature	-	70 °C	70 °C
resistance	-	390 Ω	43200 Ω
Resistor type	-	FIXED RESISTOR	FIXED RESISTOR
size code	-	1206	0805
technology	-	METAL GLAZE/THICK FILM	THIN FILM
Temperature Coefficient	-	200 ppm/°C	5 ppm/°C
Terminal surface	-	MATTE TIN OVER NICKEL	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
Terminal shape	-	WRAPAROUND	WRAPAROUND
Tolerance	-	5%	0.05%
Operating Voltage	-	200 V	150 V
