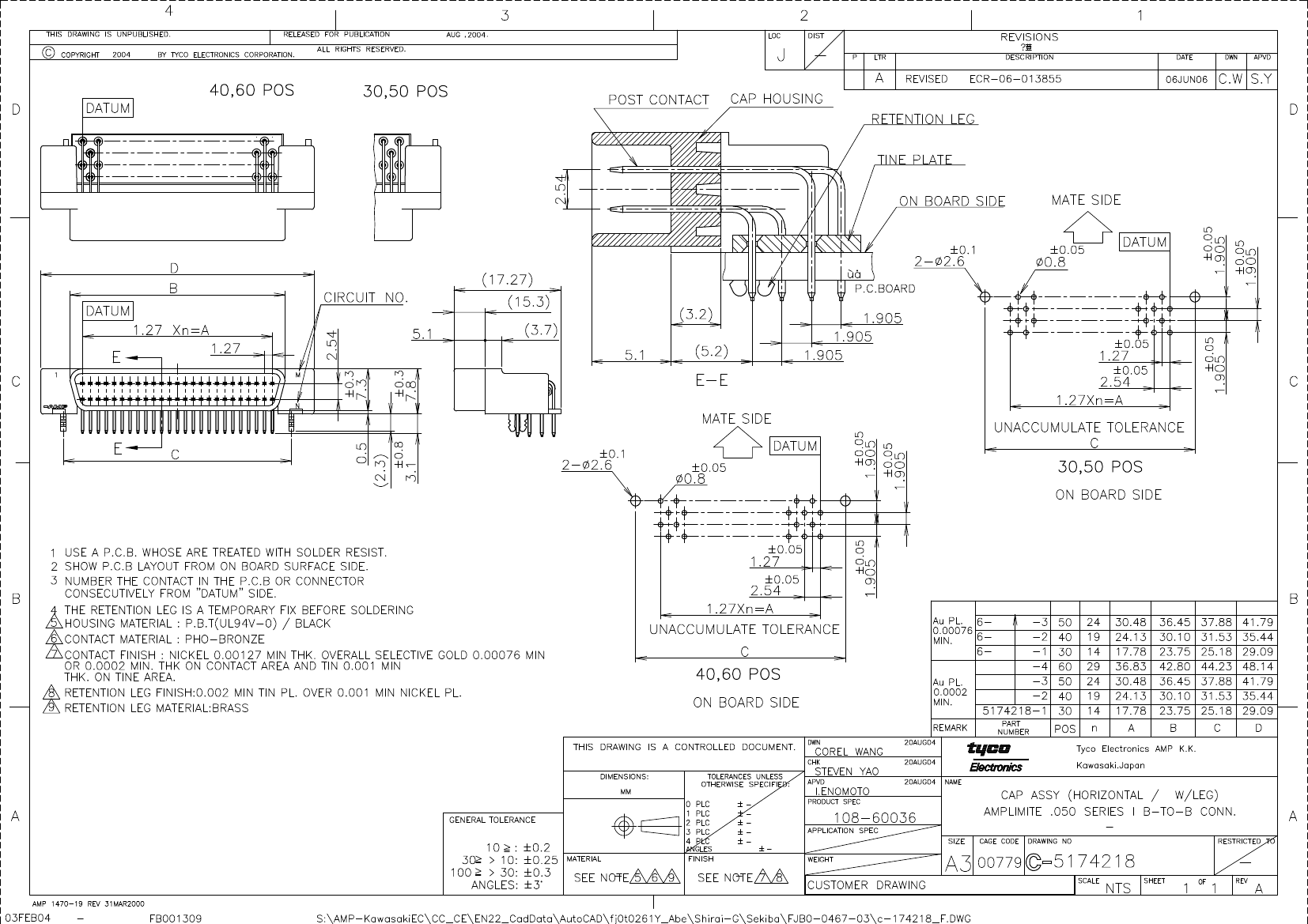

5174218-2: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,40 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,LOCKING; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5174218-2 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,40 CONTACTS,PIN,0.05 PITCH,R ANGLE PC TAIL TERMINAL,LOCKING

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304385884
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.307 inch
subject depth	0.602 inch
body length	1.395 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	100VDC V
maximum insertion force	.7784 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	8u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
Evacuation force-minimum value	.1946 N
