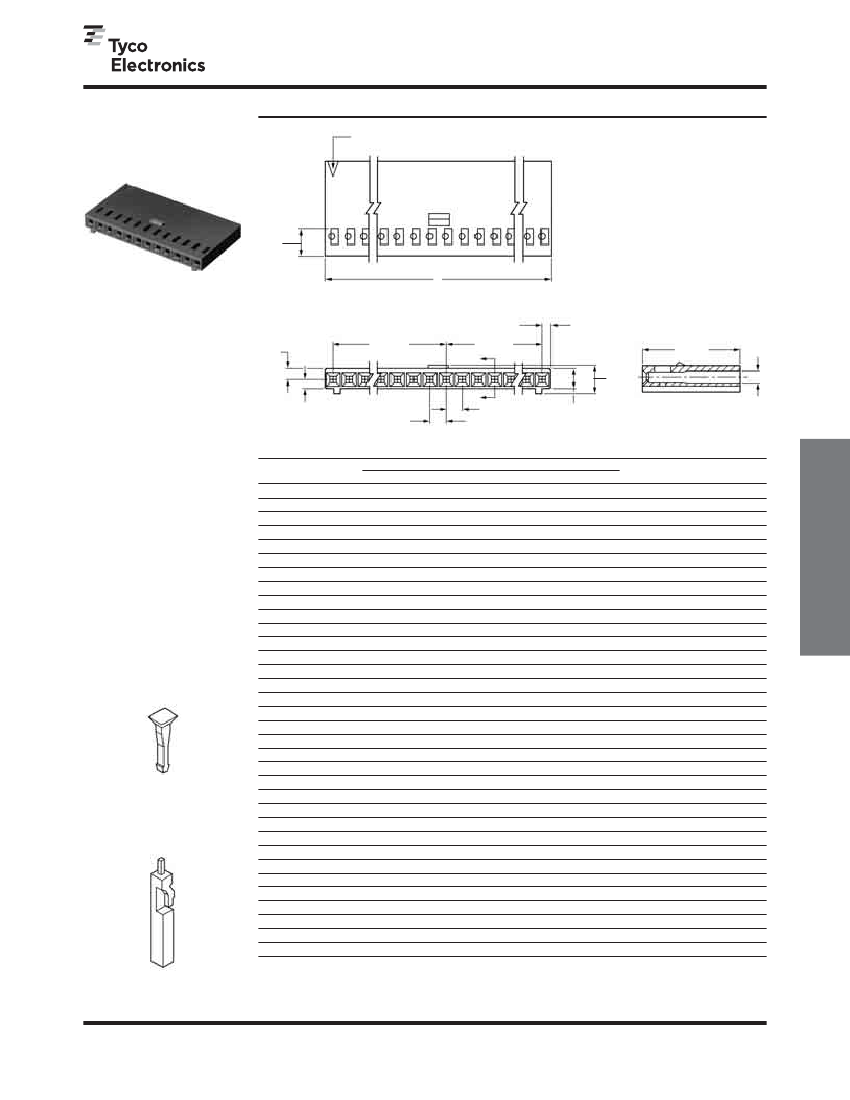

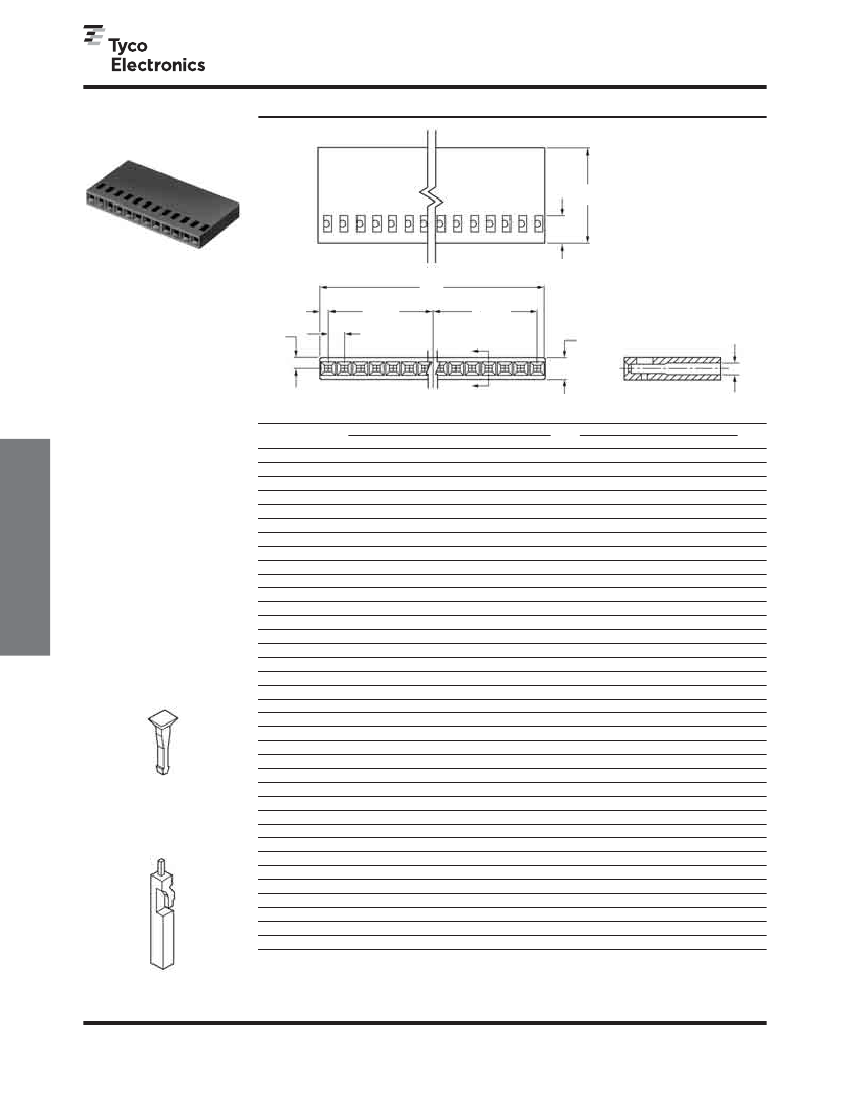

AMPMODU Interconnection System
Mod IV Wire-Applied Housings, Single-Row, .100 [2.54] Centerline
Non-Polarized
.600
[15.24]
Material
Black thermoplastic, flame retardant
.050
[1.27]
Typ.
B ±.003
[±0.08]
.100
Typ.
[2.54]
A
Max.
C ±.003
[±0.08]
.175
[4.45]
Related Product Data
Contacts
— pages 211-213
Mateable Headers and Posts
—
pages 93-95, 101-103
.070
[1.78]
Typ.
X
.140
[3.56]
.072
[1.83]
X
Section X-X
Technical Documents
—
pages 277, 278
Mod IV Wire-Applied Housings
Product Specification
108-25007, 108-25019, 108-25020,
108-25021
Application Specification
114-25003, 114-25016
No. of
Pos.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
A
.105
[2.67]
.205
[5.21]
.305
[7.75]
.405
[10.29]
.505
[12.83]
.605
[15.37]
.705
[17.91]
.805
[20.45]
.905
[22.99]
1.005
[25.53]
1.105
[28.01]
1.205
[30.61]
1.305
[33.15]
1.405
[35.69]
1.505
[38.23]
1.605
[40.77]
1.700
[43.18]
1.805
[45.85]
1.900
[48.26]
2.005
[50.93]
2.100
[53.34]
2.205
[56.01]
2.300
[58.42]
2.400
[60.96]
2.500
[63.50]
2.605
[66.17]
2.700
[68.58]
2.800
[71.12]
2.900
[73.66]
3.005
[76.33]
3.100
[78.74]
3.200
[81.28]
3.300
[83.82]
3.400
[86.36]
3.500
[88.98]
3.600
[91.44]
Dimensions
B
—
.100
[2.54]
.100
[2.54]
.200
[5.08]
.200
[5.08]
.300
[7.62]
.300
[7.62]
.400
[10.16]
.400
[10.16]
.500
[12.70]
.500
[12.70]
.600
[15.24]
.600
[15.24]
.700
[17.78]
.700
[17.78]
.800
[20.32]
.800
[20.32]
.900
[22.86]
.900
[22.86]
1.000
[25.40]
1.000
[25.40]
1.100
[27.94]
1.100
[27.94]
1.200
[30.48]
1.200
[30.48]
1.300
[33.02]
1.300
[33.02]
1.400
[35.56]
1.400
[35.56]
1.500
[38.10]
1.500
[38.10]
1.600
[40.64]
1.600
[40.64]
1.700
[43.18]
1.700
[43.18]
1.800
[45.72]
Part No.
C
—
—
.100
[2.54]
.100
[2.54]
.200
[5.08]
.200
[5.08]
.300
[7.62]
.300
[7.62]
.400
[10.16]
.400
[10.16]
.500
[12.70]
.500
[12.70]
.600
[15.24]
.600
[15.24]
.700
[17.78]
.700
[17.78]
.800
[20.32]
.800
[20.32]
.900
[22.86]
.900
[22.86]
1.000
[25.40]
1.000
[25.40]
1.100
[27.94]
1.100
[27.94]
1.200
[30.48]
1.200
[30.48]
1.300
[33.02]
1.300
[33.02]
1.400
[35.56]
1.400
[35.56]
1.500
[38.10]
1.500
[38.10]
1.600
[40.64]
1.600
[40.64]
1.700
[43.18]
1.700
[43.18]
Stamped*
—
87499-3
87499-5
87499-7
87499-9
1-87499-1
87499-1
1-87499-3
1-87499-5
1-87499-7
1-87499-9
2-87499-1
2-87499-3
2-87499-5
2-87499-7
2-87499-9
—
—
—
3-87499-7
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Unstamped**
7-87499-2
87499-4
87499-6
87499-8
1-87499-0
1-87499-2
87499-2
1-87499-4
1-87499-6
1-87499-8
2-87499-0
2-87499-2
2-87499-4
2-87499-6
2-87499-8
3-87499-0
3-87499-2
3-87499-4
3-87499-6
3-87499-8
4-87499-0
4-87499-2
4-87499-4
4-87499-6
4-87499-8
5-87499-0
5-87499-2
5-87499-4
5-87499-6
5-87499-8
6-87499-0
6-87499-2
6-87499-4
6-87499-6
6-87499-8
7-87499-0
5
Keying Plugs
Part No. 86286-1
(Plugs into standard or intermediate
pressure receptacle contact)
Material
— Natural color nylon
Part No. 87077-2
(Plugs directly into housing)
**Cavity
identification, part number and date code stamped on housing where size permits.
**No marking on housing.
Notes:
1. Strain reliefs are available and may be purchased separately. Consult Tyco Electronics.
Notes:
2. Contact
Extraction/Lance Reset Tool No. 843996-3.
Note:
All part numbers are RoHS compliant.
214
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMPMODU Interconnection System
Mod IV Wire-Applied Housings, Single-Row, .100 [2.54] Centerline
(Continued)
Polarized (with
Detent Latching)
Recessed Area
.175
[4.45]
A
Material
Black thermoplastic, flame retardant
.050
Typ.
[1.27]
.071
[1.80]
B ±.003
[±0.08]
X
.182
[4.62]
X
.056
[1.42]
.100
[2.54]
Typ.
.100
[2.54]
Typ.
.127
[3.23]
C ±.003
[±0.08]
.600
[15.24]
.072
[1.83]
Related Product Data
Contacts
— pages 211-213
Mateable Headers and Posts
—
pages 115, 116
Flexible Film Connectors,
Single-Row Pin Assemblies
—
Catalog 82007
Section X-X
Mod IV Wire-Applied Housings
Technical Documents
—
pages 277, 278
Product Specification
108-25007, 108-25019, 108-25020,
108-25021
Application Specification
114-25003, 114-25016
Keying Plugs
Part No. 86286-1
(Plugs into standard or intermediate
pressure receptacle contact)
Material
— Natural color nylon
No. of
Pos.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
A
.300
[7.62]
.400
[10.16]
.500
[12.70]
.600
[15.24]
.700
[17.78]
.800
[20.32]
.900
[22.86]
1.000
[25.40]
1.100
[27.94]
1.200
[30.48]
1.300
[33.02]
1.400
[35.56]
1.500
[38.10]
1.600
[40.64]
1.700
[43.18]
1.800
[45.72]
1.900
[48.26]
2.000
[50.80]
2.100
[53.34]
2.200
[55.88]
2.300
[58.42]
2.400
[60.96]
2.500
[63.50]
2.600
[66.04]
2.700
[68.58]
2.800
[71.12]
2.900
[73.66]
3.000
[76.20]
3.100
[78.74]
3.200
[81.28]
3.300
[83.82]
3.400
[86.36]
3.500
[88.90]
3.600
[91.44]
Dimensions
B
.100
[2.54]
.200
[5.08]
.200
[5.08]
.300
[7.62]
.300
[7.62]
.400
[10.16]
.400
[10.16]
.500
[12.70]
.500
[12.70]
.600
[15.24]
.600
[15.24]
.700
[17.78]
.700
[17.78]
.800
[20.32]
.800
[20.32]
.900
[22.86]
.900
[22.86]
1.000
[25.40]
1.000
[25.40]
1.100
[27.94]
1.100
[27.94]
1.200
[30.48]
1.200
[30.48]
1.300
[33.02]
1.300
[33.02]
1.400
[35.56]
1.400
[35.56]
1.500
[38.10]
1.500
[38.10]
1.600
[40.64]
1.600
[40.64]
1.700
[43.18]
1.700
[43.18]
1.800
[45.72]
C
.100
[2.54]
.100
[2.54]
.200
[5.08]
.200
[5.08]
.300
[7.62]
.300
[7.62]
.400
[10.16]
.400
[10.16]
.500
[12.70]
.500
[12.70]
.600
[15.24]
.600
[15.24]
.700
[17.78]
.700
[17.78]
.800
[20.32]
.800
[20.32]
.900
[22.86]
.900
[22.86]
1.000
[25.40]
1.000
[25.40]
1.100
[27.94]
1.100
[27.94]
1.200
[30.48]
1.200
[30.48]
1.300
[33.02]
1.300
[33.02]
1.400
[35.56]
1.400
[35.56]
1.500
[38.10]
1.500
[38.10]
1.600
[40.64]
1.600
[40.64]
1.700
[43.18]
1.700
[43.18]
Part Nos.
Unstamped*
102241-1
102241-2
102241-3
102241-4
102241-5
102241-6
102241-7
102241-8
102241-9
1-102241-0
1-102241-1
1-102241-2
1-102241-3
1-102241-4
1-102241-5
1-102241-6
1-102241-7
1-102241-8
1-102241-9
2-102241-0
2-102241-1
2-102241-2
2-102241-3
2-102241-4
2-102241-5
2-102241-6
2-102241-7
2-102241-8
2-102241-9
3-102241-0
3-102241-1
3-102242-2
3-102241-3
3-102241-4
5
*No marking on housing.
Note:
Contact
Extraction/Lance Reset Tool No. 843996-3.
Part No. 87077-2
(Plugs directly into housing)
Note:
All part numbers are RoHS compliant.
215
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
