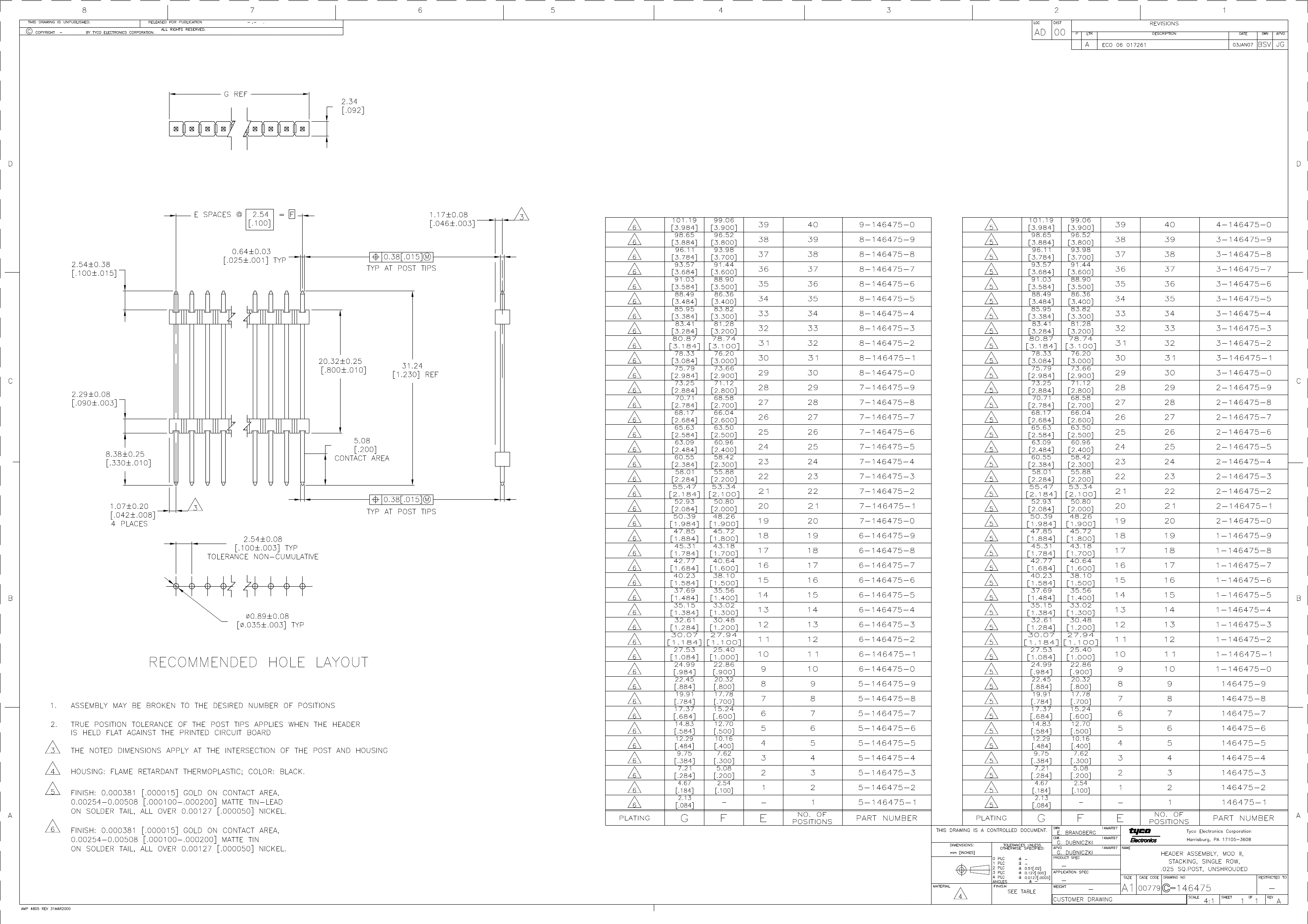

3-146475-4 |
3-146475-3 |
1-146475-7 |
| Description |
34 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER |
33 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER |
17 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER |
| Is it Rohs certified? |
incompatible |
incompatible |
incompatible |
| Maker |
TE Connectivity |
TE Connectivity |
TE Connectivity |
| Reach Compliance Code |
unknown |
unknown |
unknown |
| ECCN code |
EAR99 |
EAR99 |
EAR99 |
| Is Samacsys |
N |
N |
N |
| Other features |
AMPMODU |
AMPMODU |
AMPMODU |
| body width |
0.092 inch |
0.092 inch |
0.092 inch |
| body length |
3.384 inch |
3.284 inch |
1.684 inch |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
| Connector type |
BOARD STACKING CONNECTOR |
BOARD STACKING CONNECTOR |
BOARD STACKING CONNECTOR |
| Contact to complete cooperation |
TIN LEAD (200) OVER NICKEL |
TIN LEAD (200) OVER NICKEL |
NOT SPECIFIED |
| Contact completed and terminated |
Gold (Au) - with Nickel (Ni) barrier |
Gold (Au) - with Nickel (Ni) barrier |
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender |
MALE |
MALE |
MALE |
| Contact material |
COPPER ALLOY |
COPPER ALLOY |
COPPER ALLOY |
| contact mode |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Contact style |
SQ PIN-SKT |
SQ PIN-SKT |
SQ PIN-SKT |
| DIN compliance |
NO |
NO |
NO |
| Dielectric withstand voltage |
750VAC V |
750VAC V |
750VAC V |
| Filter function |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
| Insulation resistance |
5000000000 Ω |
5000000000 Ω |
5000000000 Ω |
| Insulator color |
BLACK |
BLACK |
BLACK |
| insulator material |
THERMOPLASTIC |
THERMOPLASTIC |
THERMOPLASTIC |
| JESD-609 code |
e4 |
e4 |
e0 |
| MIL compliance |
NO |
NO |
NO |
| Manufacturer's serial number |
146475 |
146475 |
146475 |
| Plug contact pitch |
0.1 inch |
0.1 inch |
0.1 inch |
| Mixed contacts |
NO |
NO |
NO |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
BOARD |
| Number of connectors |
ONE |
ONE |
ONE |
| PCB row number |
1 |
1 |
1 |
| Number of rows loaded |
1 |
1 |
1 |
| Maximum operating temperature |
105 °C |
105 °C |
105 °C |
| Minimum operating temperature |
-65 °C |
-65 °C |
-65 °C |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| PCB contact pattern |
RECTANGULAR |
RECTANGULAR |
RECTANGULAR |
| Plating thickness |
15u inch |
15u inch |
15u inch |
| Guideline |
UL, CSA |
UL, CSA |
UL, CSA |
| reliability |
COMMERCIAL |
COMMERCIAL |
COMMERCIAL |
| Terminal pitch |
2.54 mm |
2.54 mm |
2.54 mm |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
34 |
33 |
17 |
| UL Flammability Code |
94V-0 |
94V-0 |
94V-0 |
| Base Number Matches |
1 |
1 |
1 |
