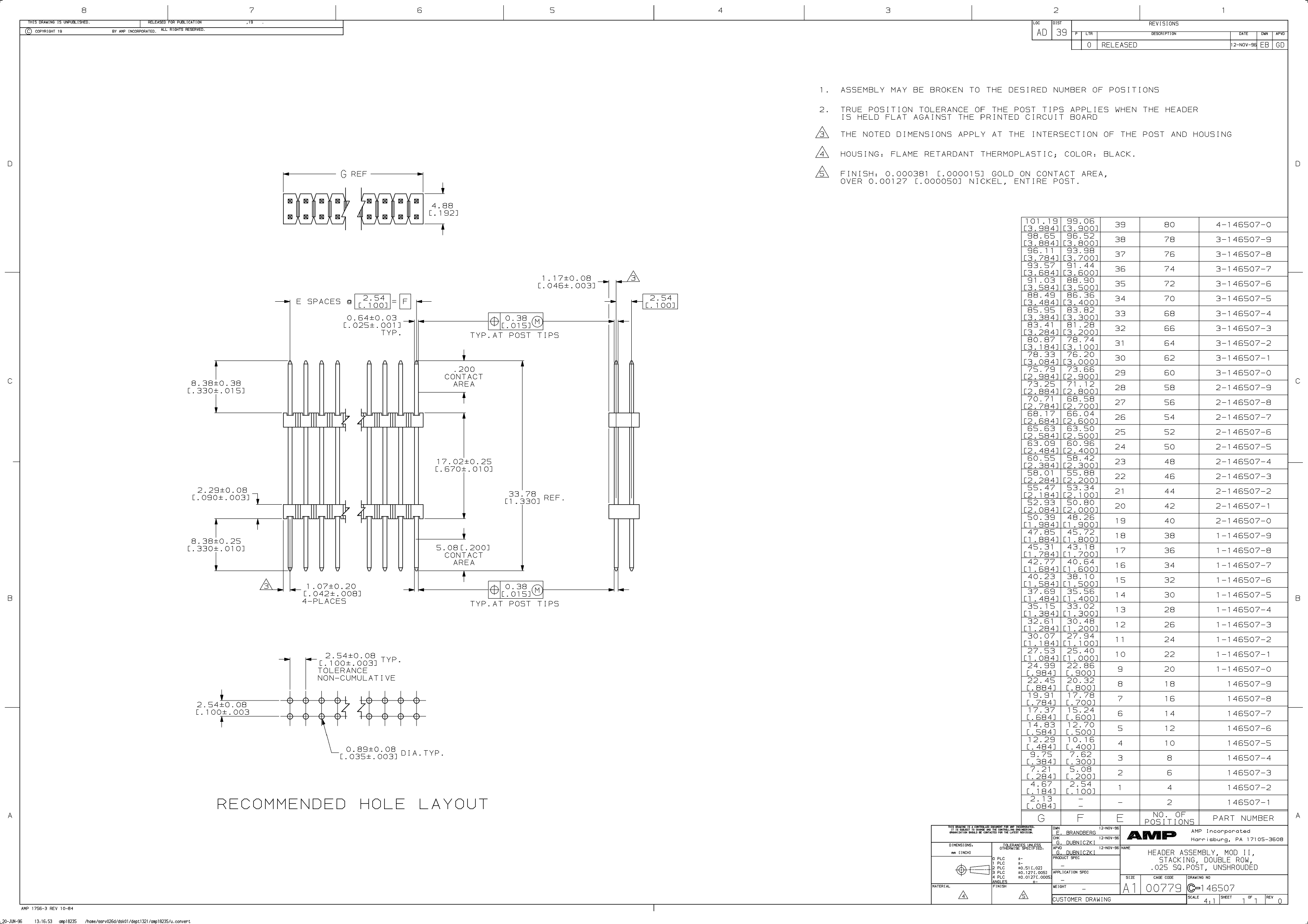

Preview

146507-1: Description2 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER; CategoryThe connector The connector; File Size81KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

146507-1 Overview

2 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER

146507-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	AMPMODU
body width	0.192 inch
subject depth	0.67 inch
body length	0.084 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	146507
Match contact row spacing	0.1 inch
Plug information	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.33 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

146507-1 Related Products

	146507-1	3-146507-0	1-146507-1	2-146507-2	RNS1CLT52A2641B
Description	2 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	60 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	22 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	44 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER	Fixed Resistor, Metal Film, 1W, 2640ohm, 350V, 0.1% +/-Tol, -50,50ppm/Cel,
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e4	e4	e4	e4	e0
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	165 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-55 °C
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	MIL-R-10509
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	-
Is Samacsys	N	-	N	N	-
Other features	AMPMODU	AMPMODU	AMPMODU	AMPMODU	-
body width	0.192 inch	0.192 inch	0.192 inch	0.192 inch	-
body length	0.084 inch	2.984 inch	1.084 inch	2.184 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	GOLD (15) OVER NICKEL	NOT SPECIFIED	GOLD (15) OVER NICKEL	-
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	-
Contact point gender	MALE	MALE	MALE	MALE	-
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
DIN compliance	NO	NO	NO	NO	-
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	-
Filter function	NO	NO	NO	NO	-
IEC compliance	NO	NO	NO	NO	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-
Insulator color	BLACK	BLACK	BLACK	BLACK	-
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-
MIL compliance	NO	NO	NO	NO	-
Manufacturer's serial number	146507	146507	146507	146507	-
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-
Plug information	NO	NO	NO	NO	-
Mixed contacts	NO	NO	NO	NO	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	BOARD	-
Number of connectors	ONE	ONE	ONE	ONE	-
PCB row number	2	2	2	2	-
Number of rows loaded	2	2	2	2	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Plating thickness	15u inch	15u inch	15u inch	15u inch	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-
Total number of contacts	2	60	22	44	-
Base Number Matches	1	1	1	1	-
Plug contact pitch	-	0.1 inch	0.1 inch	0.1 inch	-
