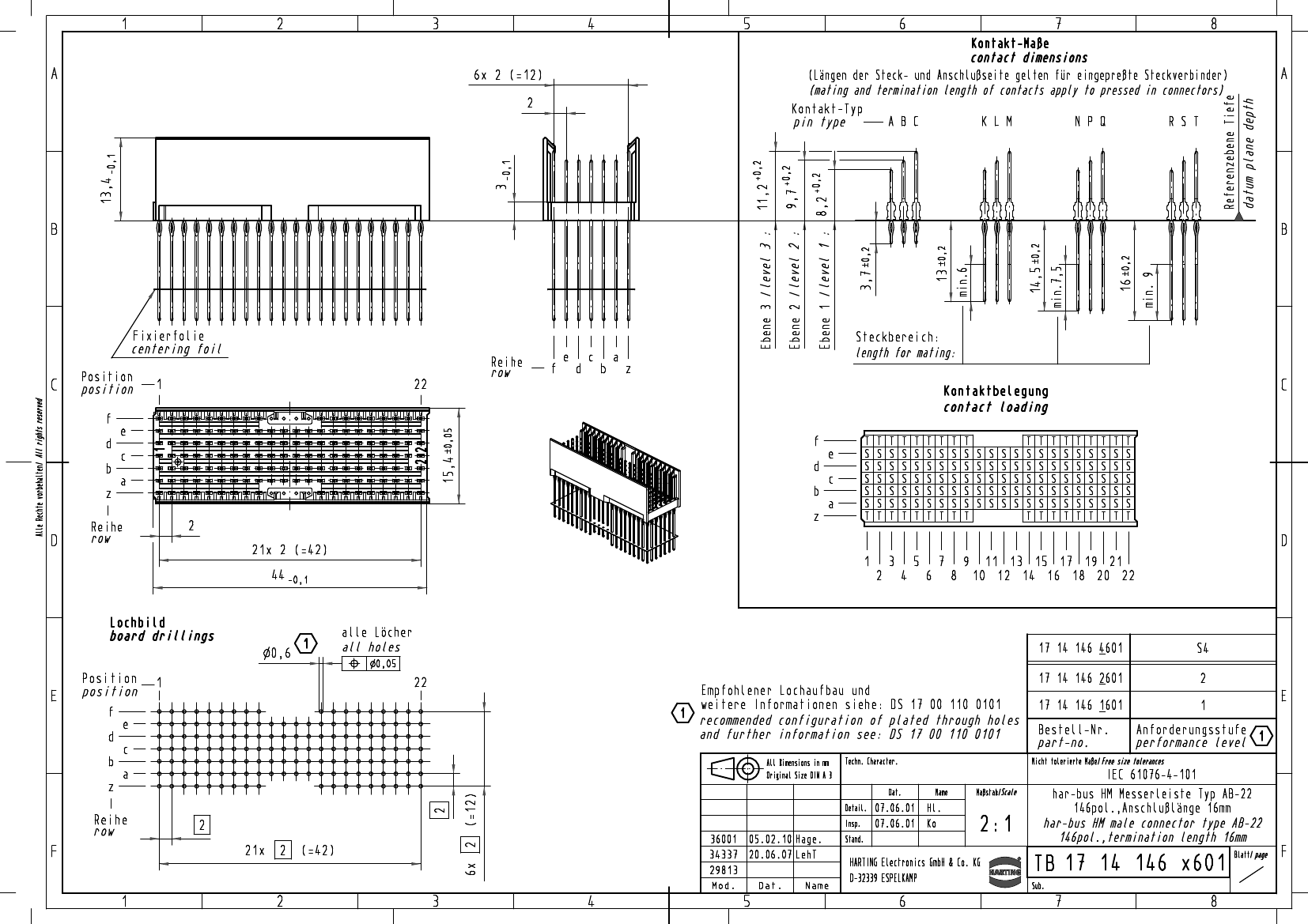

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal
| Parameter Name | Attribute value |
| Maker | HARTING |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | 36 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE |
| Connector type | BOARD CONNECTOR |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 1714 |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 5 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 110 |
| Base Number Matches | 1 |
| 17141464601 | 17141464201 | 17141462601 | 17141461201 | M8340102K2701FA | P-1005H2701GBWP | 09195165903 | 17141461601 | |
|---|---|---|---|---|---|---|---|---|
| Description | Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal | Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal | hard metric connectors har-bus HM mel typ abafs 2 tube | hard metric connectors har-bus HM mel typ ab22 afs 1 tube | Array/Network Resistor, Isolated, Metal Foil, 0.1W, 2700ohm, 1% +/-Tol, -100,100ppm/Cel, 8330, | Fixed Resistor, Thin Film, 0.25W, 2700ohm, 100V, 2% +/-Tol, 50ppm/Cel, Surface Mount, 1005, CHIP | CONN HEADER 16POS T/H R/A GOLD | HAR-BUS HM MEL., TYP AB, AFS 1, |
| Reach Compliance Code | unknown | unknow | compliant | compliant | compliant | not_compliant | compliant | compliant |
| Other features | 36 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE | STANDARD: IEC 61076-4-101, 36 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | 36 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | STANDARD: IEC 61076-4-101, 36 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE | - | ANTI-SULFUR, FLAME PROOF, NON-INDUCTIVE | STANDARD: IEC 60326-3 | 36 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | - | - | BOARD EURO CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | - | - | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | - | - | YES | NO |
| Filter function | NO | NO | NO | NO | - | - | NO | NO |
| IEC compliance | NO | YES | NO | NO | - | - | YES | NO |
| MIL compliance | NO | NO | NO | NO | - | - | NO | NO |
| Manufacturer's serial number | 1714 | 1714 | 1714 | 1714 | - | - | - | 1714 |
| Mixed contacts | NO | NO | NO | NO | - | - | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | - | - | RIGHT ANGLE | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | - | - | BOARD | BOARD |
| Number of rows loaded | 5 | 5 | 7 | 7 | - | - | 2 | 7 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | - | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | - | - | 2.54 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | - | - | SOLDER | PRESS FIT |
| Total number of contacts | 110 | 110 | 146 | 146 | - | - | 16 | 146 |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - | 1 | 1 |
| JESD-609 code | - | - | e4 | e4 | - | e0 | e3 | e4 |
