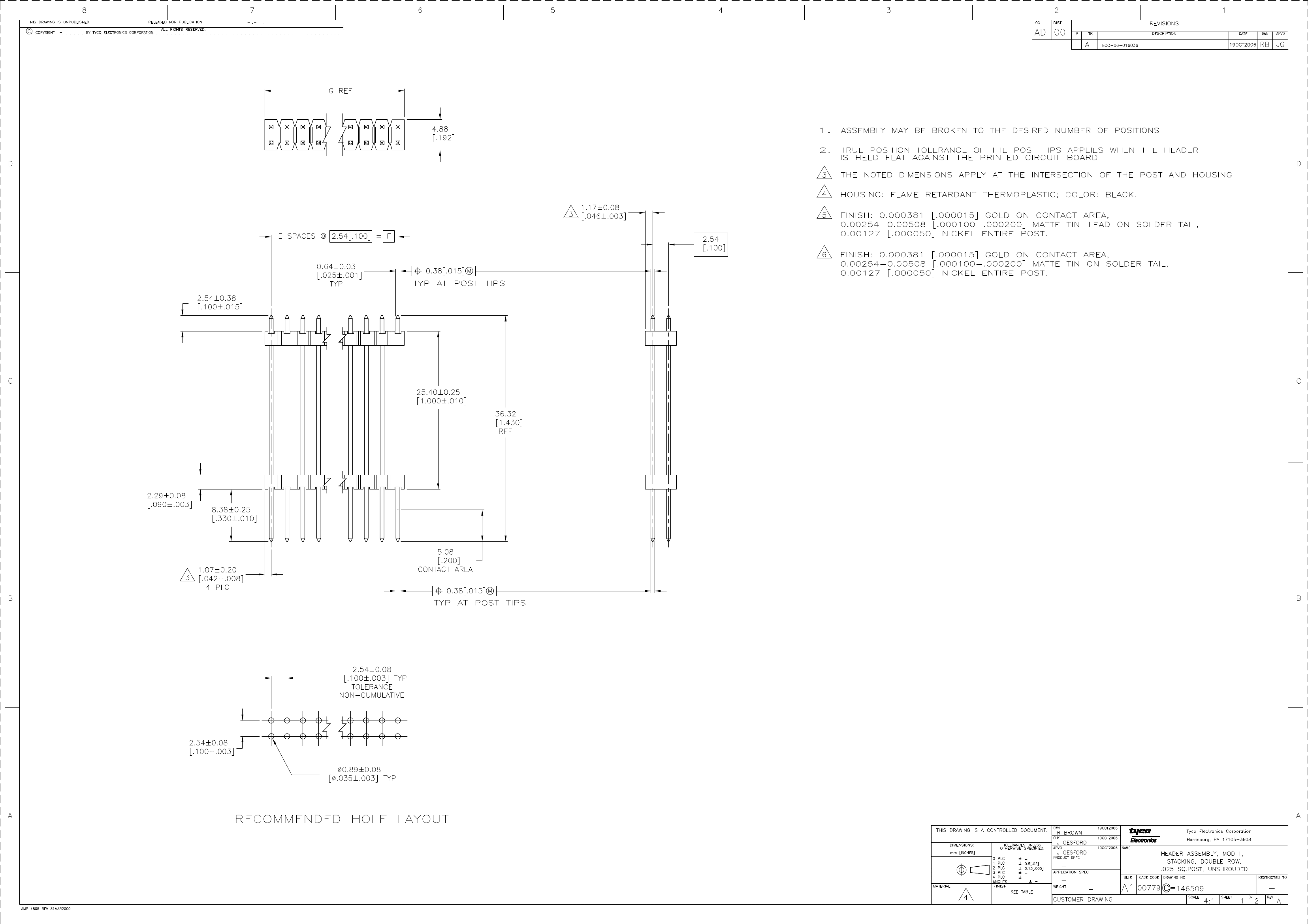

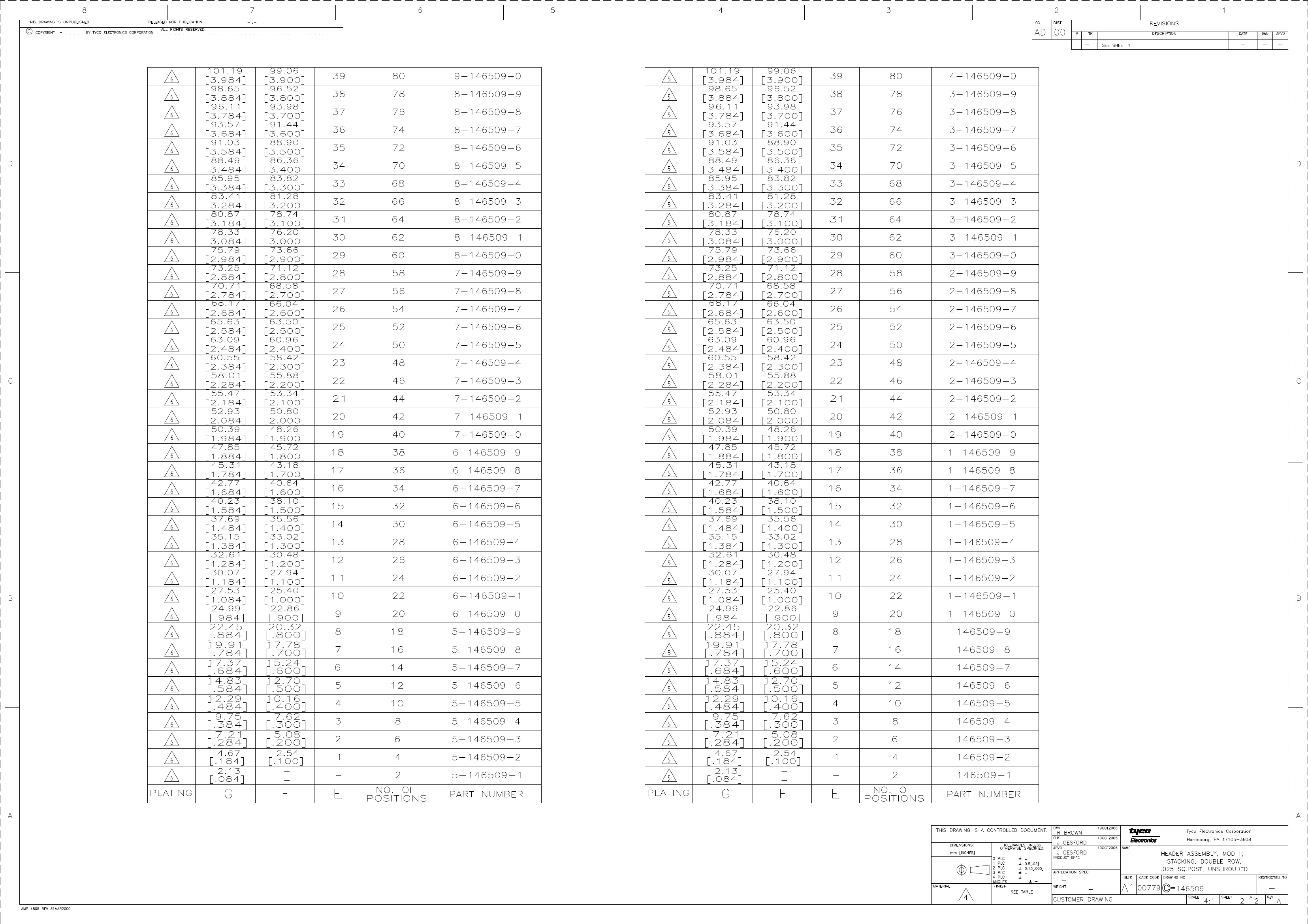

78 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | AMPMODU |
| body width | 0.192 inch |
| body length | 3.884 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (15) |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 146509 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 15u inch |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 78 |
| Base Number Matches | 1 |
| 3-146509-9 | 3-146509-5 | SG73S2BLTDD153G | SG73S2BLTE1R3J | SG73S2BTBK335G | 146509-7 | 146509-8 | |
|---|---|---|---|---|---|---|---|
| Description | 78 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER | 70 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER | Fixed Resistor, Metal Glaze/thick Film, 0.33W, 15000ohm, 200V, 2% +/-Tol, -200,200ppm/Cel, 1206, | Fixed Resistor, Metal Glaze/thick Film, 0.33W, 1.3ohm, 200V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 1206, CHIP | Fixed Resistor, Metal Glaze/thick Film, 0.33W, 3300000ohm, 200V, 2% +/-Tol, -200,200ppm/Cel, 1206, | 14 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER | 16 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | conform to | incompatible | incompatible |
| Reach Compliance Code | unknown | unknow | not_compliant | not_compliant | compliant | unknown | unknown |
| Maker | TE Connectivity | TE Connectivity | - | - | - | TE Connectivity | TE Connectivity |
| Other features | AMPMODU | AMPMODU | - | - | - | AMPMODU | AMPMODU |
| body width | 0.192 inch | 0.192 inch | - | - | - | 0.192 inch | 0.192 inch |
| body length | 3.884 inch | 3.484 inch | - | - | - | 0.684 inch | 0.784 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | - | - | - | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | - | - | - | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | GOLD (15) | GOLD (15) | - | - | - | GOLD (15) OVER NICKEL (50) | GOLD (15) OVER NICKEL (50) |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie | - | - | - | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | MALE | MALE | - | - | - | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | - | - | - | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | - | - | - | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | - | - | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | - | - | - | NO | NO |
| Dielectric withstand voltage | 750VAC V | 750VAC V | - | - | - | 750VAC V | 750VAC V |
| Filter function | NO | NO | - | - | - | NO | NO |
| IEC compliance | NO | NO | - | - | - | NO | NO |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | - | - | - | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | - | - | - | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | - | - | - | THERMOPLASTIC | THERMOPLASTIC |
| JESD-609 code | e0 | e0 | e0 | - | e3 | e0 | e0 |
| MIL compliance | NO | NO | - | - | - | NO | NO |
| Manufacturer's serial number | 146509 | 146509 | - | - | - | 146509 | 146509 |
| Plug contact pitch | 0.1 inch | 0.1 inch | - | - | - | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | - | - | - | 0.1 inch | 0.1 inch |
| Mixed contacts | NO | NO | - | - | - | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | - | - | - | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | - | - | - | BOARD | BOARD |
| Number of connectors | ONE | ONE | - | - | - | ONE | ONE |
| PCB row number | 2 | 2 | - | - | - | 2 | 2 |
| Number of rows loaded | 2 | 2 | - | - | - | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 155 °C | - | 155 °C | 105 °C | 105 °C |
| Minimum operating temperature | -65 °C | -65 °C | -55 °C | - | -55 °C | -65 °C | -65 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | - | - | - | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - | - | - | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | - | - | - | 2.54 mm | 2.54 mm |
| Plating thickness | 15u inch | 15u inch | - | - | - | 15u inch | 15u inch |
| Guideline | UL, CSA | UL, CSA | - | - | AEC-Q200, IEC60115-8 | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | - | - | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.54 mm | 2.54 mm | - | - | - | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | - | - | - | SOLDER | SOLDER |
| Total number of contacts | 78 | 70 | - | - | - | 14 | 16 |
| Base Number Matches | 1 | 1 | - | - | - | 1 | 1 |
