Part Number

Search

371-21530-075X

Description
Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Solder Terminal
CategoryThe connector    The connector
File Size93KB,1 Pages
ManufacturerThomas & Betts Corporation
Websitehttp://www.tnb.com/
Download Datasheet Parametric View All

371-21530-075X Overview

Board Euro Connector, 15 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

371-21530-075X Parametric

Parameter NameAttribute value
MakerThomas & Betts Corporation
Reach Compliance Codeunknown
Is SamacsysN
Other featuresSTANDARD: DIN 41612, HIGH CURRENT, STAGGERED CONFIGURATION
Connector typeBOARD EURO CONNECTOR
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderMALE
DIN complianceYES
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number37
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
Terminal pitch10.16 mm
Termination typeSOLDER
Total number of contacts15
UL Flammability Code94V-0
Base Number Matches1

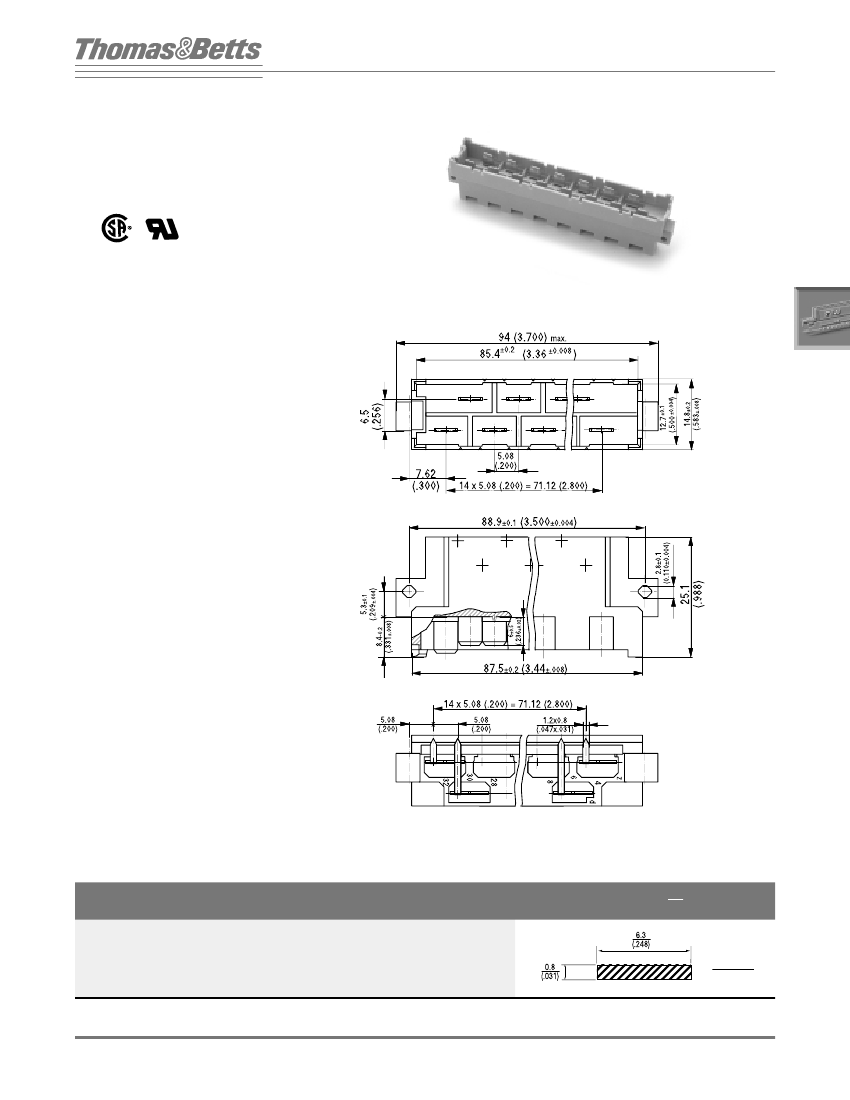

Two–Piece Connectors
High Current DIN
TYPE H15
MALE PCB CONNECTOR
WITH BLADE CONTACTS
SERIES 37
LR92984
E60980
P
HYSICAL
P
ROPERTIES
I
NSULATION
M
ATERIAL
:
Glass filled thermoplastic
rated UL 94V-0
C
OLOR
:
Gray
C
ONTACTS
:
Copper alloy, tin/lead over
nickel overall
E
LECTRICAL
P
ROPERTIES
C
URRENT
R
ATING
:
15 Amps per pin
I
NSULATION
R
ESISTANCE
:
>1 x 10
9
0hms
D
IELECTRIC
S
TRENGTH
:
> 500 VDC at sea level
E
NVIRONMENTAL
P
ROPERTIES
T
EMPERATURE
R
ATING
:
-55˚C TO 125°C
Extended length contacts available.
Consult factory for details.
Ordering Information
NO. OF CONTACTS
CONTACT LOADING
CATALOG NO.
TERMINATION STYLE
MM
(INCHES)
Blade
z
15
d
4, 8, 12 –32
6, 10, 14 –30
371-21530-075X
0.8 x 6.3
(.031 x .248)
Thomas & Betts Electronics/OEM Division Tel: 901-252-5000 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters (inches).
