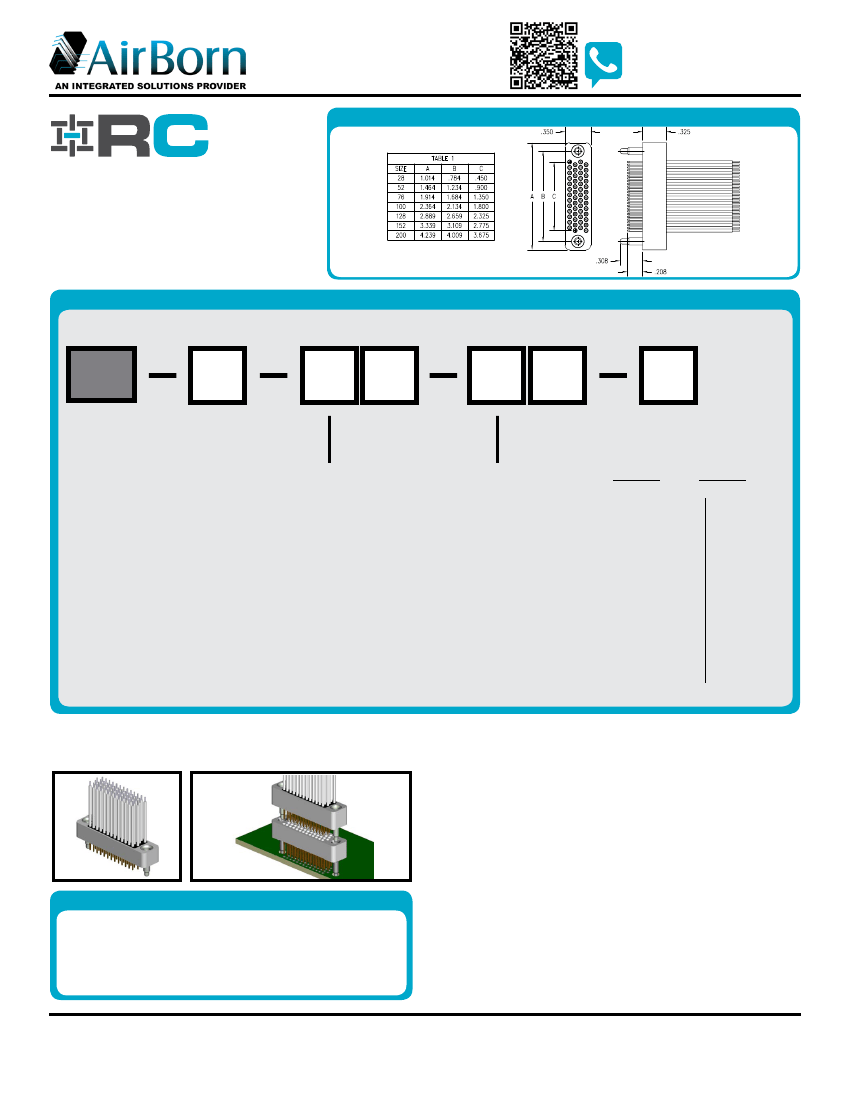

CALL 512-863-5585
x6464
DIMENSIONS
CONTACT CUSTOMER SERVICE
STACKABLE, PRESS-FIT,
COMPLIANT PIN/SOCKET
A high-density top-of-the-stack cable mate
connector configuration used for top-compliant
connector mating applications.
Contact spacing: 0.075” (1.91 mm)
ORDER FORM
CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
Sample Part Number Format: RC4C2-052-181-57ED
PLEASE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
RC4C2
SERIES
Stackable
Compliant
Full-Profile
4 Rows
0 .075” Spacing
Top-of-Stack
Cable Mate
CONFIGURATION
028 – 4 Rows/7 Col
052 – 4 Rows/13 Col
076 – 4 Rows/19 Col
100 – 4 Rows/25 Col
128 – 4 Rows/32 Col
152 – 4 Rows/38 Col
200 – 4 Rows/50 Col
PLATING
1
–
50 µ” Au
3
–
30 µ” Au
TYPE
XX
–
See Wire Codes
VARIATION
Blank
–
None
XXX
–
Consult Factory
CONTACT
18 – Pin, Crimp, 26-24 AWG
19
–
Pin, Crimp, 30-28 AWG
HARDWARE
00 – None
57 – Guide Pin, Non-Polarized
61 – Jackscrew, Hex, Turning
TYPE and COLOR
Code Size
Mil-W-16878/4
C
24 awg
D
24 awg
E
26 awg
F
26 awg
G
28 awg
H
28 awg
J
30 awg
K
30 awg
Mil-W-22759/33
N
24 awg
P
24 awg
R
26 awg
S
26 awg
T
28 awg
U
28 awg
V
30 awg
W
30 awg
Color
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
Ten repeating
White
LENGTH
Code Length
(+1"/-0")
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
6"
12"
18"
24"
30"
36"
42"
48"
54"
60"
66"
72"
84"
96"
108"
120"
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
MATED HEIGHT
Connector body height is 0.325” and is designed to mount flush to the mating connector.
MATERIALS and FINISHES
Contact: . . . . . . . . . . . . . . . . . . . . . . . . . . . BeCu per ASTM B196 or B197 (BeCu alloy 172 or 173)
Contact Finish: . . . . . . . . . . . . . . . . . . . . . . . . . . Gold per MIL-G-45204 over nickel per QQ-N-290
Molded Insulator: . . . . . . . . . . . . . . . . .
Glass-filled polyphenylene sulfide (PPS) per MIL-M-24519
Hardware: . . . . . . . . . . . . . . . . . . Stainless steel per ASTM A484/A484M and ASTM A582/A582M,
passivated per SAE AMS-2700
NOTE: AirBorn can manufacture special configurations to your exact specifications.
PERFORMANCE
NOTES
1. To use the -61 jackscrew hardware option, the fixed jacknut hardware (-XXMT)
must be in place on the mating board connector.
Contact Rating: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 amperes
Operating Temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -65° C to +125° C
Insulation Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,000 megaohms minimum @ 500 VDC
Durability: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 connector mating cycles
Contact Resistance: . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to 5 milliohms (contact length dependent)
Contact Engagement Force: . . . . . . . . . . . . . . . . . . . . . 4 .0 oz (113 g) max . w/0 .0246” dia . test pin
Contact Separation Force: . . . . . . . . . . . . . . . . . . . . . . . . 0 .5 oz (14 g) min . w/0 .0226” dia . test pin
NOTE: Performance values are estimates. Actual values will be determined when final
product testing is complete.
PATENT PENDING
www.airborn.com
(512 ) 863-5585
RC4C2C-PNB-1B
