Fiber Optic Products Catalog
MPO Connectors
Connectors/Adapters/
Tooling & Accessories
Product Facts
■
■
■
■
Tested to Telecordia GR-1435
Push Pull Latching
4, 8, 12, OR 24 fibers
Color-coded housings
differentiate singlemode
and multimode:
■
■
Multimode - Beige
Singlemode - Green
■
Manufactured to IEC
Standards 61754-7 and
TIA/EIA 604-5
1

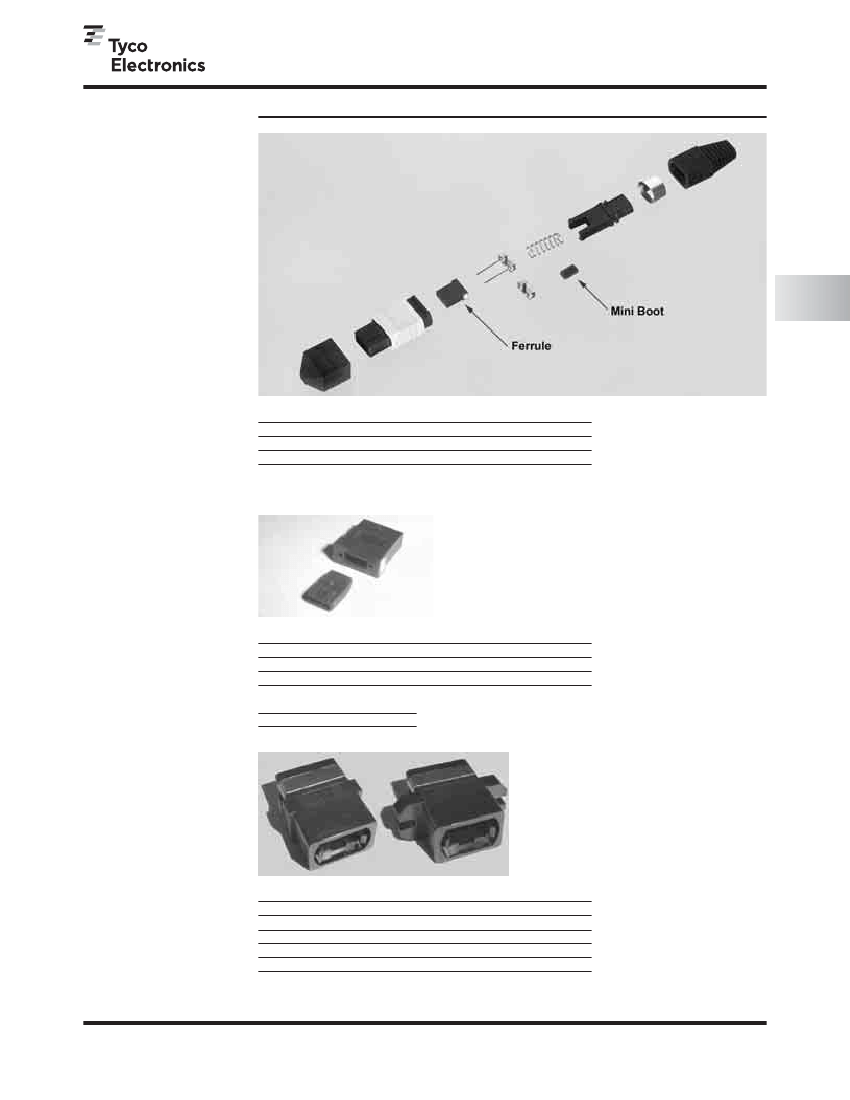

MPO Connector Kit Selection - Plug Kits
Fiber Type
Singlemode
Multimode
Female (no pins)
6457981-1
6457983-1
Male (with pins)
6457981-2
6457983-2
Industry Standard
Performance Characteristics
Singlemode
Insertion Loss (Typ)
— 0.25 dB
Insertion Loss (Max)
— 0.75 dB
Return Loss
— > 55 dB
Note:
Ferrules and Mini-Boots are sold separately. See chart below for
proper part numbers.
Multimode
Insertion Loss (Typ)
— 0.2 dB
Insertion Loss (Max)
— 0.5 dB
Return Loss
— > 20 dB
MPO Ferrule Kit with Mini-Boot
Fiber Type
Singlemode
Multimode
4 Position
5492221-1
5503839-1
8 Position
5492221-2
5503839-2
12 Position
5492221-3
5503839-3
Crimping Tool with Dieset
1588698-1
MPO Adapters
Adapter Type
Adapter w/flange
Adapter w/flange and clip
Adapter w/o flange
Adapter w/o flange and w/clip
Single Pack
1588172-1
1588172-2
1588172-3
1588172-4
50 pc Bulk Pack
1588172-5
1588172-6
1588172-7
1588172-8
Note:
All part numbers are RoHS compliant.
83
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
