1393218-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 1393218-1

1393218-1: Description(1393218-1) REL30005; CategoryMechanical and electronic products relay; File Size217KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1393218-1 Overview

(1393218-1) REL30005

1393218-1 Parametric

Parameter Name	Attribute value
Brand Name	Schrack
Is it Rohs certified?	conform to
Objectid	1871448215
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	10 mm
body height	10.6 mm
Body length or diameter	20 mm
Maximum coil current (DC)	0.072 A
Coil operating voltage (DC)	3.7 V
Coil power	360 mW
Coil release voltage (DC)	0.5 V
Coil resistance	70 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact/Output Power Type	AC/DC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
method of packing	BOX
physical size	20mm x 10mm x 10.6mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
surface mount	NO
Termination type	SOLDER

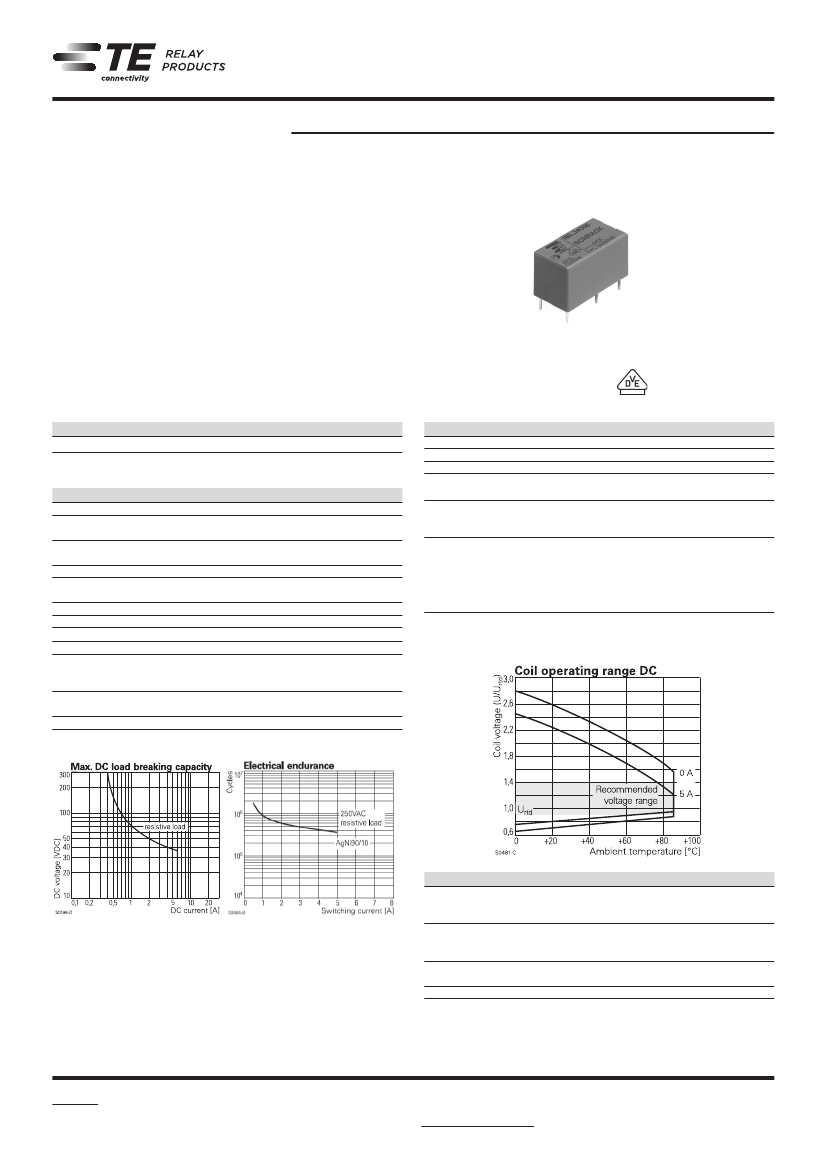

Preview

Download Datasheet

View All

General Purpose

Low Power PCB Relays

Miniature PCB Relay REL

SCHRACK

1 pole 5 A, 1 form A (NO) contact

Low height 12.0mm

Especially suited for applications white goods,

consumer electronics, etc.

Plastic materials according to IEC 60335-1 (domestic appliances)

Typical applications

PLC’s, timers, temperature control, I/O cards, white goods.

Approvals

VDE Cert. No. 40010579, UL E214025

Technical data of approved types on request.

Coil Data

Coil voltage range

Operative range, IEC 61810

Coil insulation system according UL1446

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

3.75

4.5

9.0

18.0

27.0

36.0

5 to 48VDC

Coil

resistance

Ω±10%

100

400

1600

3600

6400

Rated coil

power

357

360

Contact Data

Contact arrangement

1 form A (NO)

Rated voltage

250VAC

Max. switching voltage

400VAC

Rated current

Limiting making current, max 4s, duty factor 10% 15A

Contact material

AgNi 90/10

Frequency of operation

with/without load

360/72000 ops./h

Operate/release time max.

10/5ms

Bounce time max.

4ms

Contact ratings

Type

Contact Load

IEC 61810

REL34

A (NO)

5A, 250VAC, cosφ=1, 85°C

REL34

A (NO)

3A, 400VAC, cosφ=1, 85°C

UL 508

REL34

A (NO)

5A, 250VAC, resistive, 85°C

Mechanical endurance

>10x10

operations

Release

voltage

VDC

0.5

0.6

1.2

2.4

3.6

4.8

Cycles

100x10

400x10

100x10

Coil resistance ±15%.

All figures are given for coil without pre-energization, at ambient temperature +23°C.

Other coil voltages on request.

Insulation Data

Initial dielectric strength

between open contacts

between contact and coil

Initial insulation resistance

open contact circuit

coil-contact circuit

Clearance/creepage

between contact and coil

Material group of insulation parts

1000V

rms

3000V

rms

>10x10

≥4/4mm

IIIa

07-2018, Rev. 0718

www.te.com

a TE Connectivity Ltd. company.

Catalog and product specification according

to IEC 61810-1 and to be used only together

with the ‘Definitions’ section.

Catalog and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Catalog product data, ‘Definitions’ section,

application notes and all specifications are

subject to change.

1393218-1 Related Products

	1393218-1	4-1393217-7	4-1393217-6	240-032-2-9SPE6J1-18H	240-032-4-9SPJ6J2-18S
Description	(1393218-1) REL30005	(4-1393217-7) REL30024	(4-1393217-6) REL30012	D Type Connector, 9 Contact(s), Female, 0.05 inch Pitch, Wire Terminal, Locking,	D Type Connector, 9 Contact(s), Female, 0.05 inch Pitch, Wire Terminal, Locking,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	10 mm	10 mm	10 mm	0.322 inch	0.322 inch
Guideline	UL; VDE	UL; VDE	UL; VDE	MIL	MIL
Termination type	SOLDER	SOLDER	SOLDER	CRIMP	CRIMP
Brand Name	Schrack	Schrack	Schrack	-	-
Objectid	1871448215	-	1871448241	313833385	313889118
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-
body height	10.6 mm	10.6 mm	10.6 mm	-	-
Body length or diameter	20 mm	20 mm	20 mm	-	-
Maximum coil current (DC)	0.072 A	0.015 A	0.03 A	-	-
Coil operating voltage (DC)	3.7 V	18 V	9 V	-	-
Coil power	360 mW	360 mW	360 mW	-	-
Coil release voltage (DC)	0.5 V	2.4 V	1.2 V	-	-
Coil resistance	70 Ω	1600 Ω	400 Ω	-	-
Maximum coil voltage (DC)	5 V	24 V	12 V	-	-
Coil/Input Power Type	DC	DC	DC	-	-
Maximum contact current (AC)	6 A	6 A	6 A	-	-
Maximum contact current (DC)	6 A	6 A	6 A	-	-
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	-	-
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	-	-
method of packing	BOX	BOX	BOX	-	-
physical size	20mm x 10mm x 10.6mm	20mm x 10mm x 10.6mm	20mm x 10mm x 10.6mm	-	-
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	-	-
Relay function	SPST	SPST	SPST	-	-
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	-	-
surface mount	NO	NO	NO	-	-
Maximum operating temperature	-	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-	-40 °C	-40 °C	-55 °C	-55 °C
