Part Number

Search

145165-4

Description
184 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER
CategoryThe connector    The connector
File Size243KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

145165-4 Online Shopping

Suppliers Part Number Price MOQ In stock
145165-4 - - View Buy Now

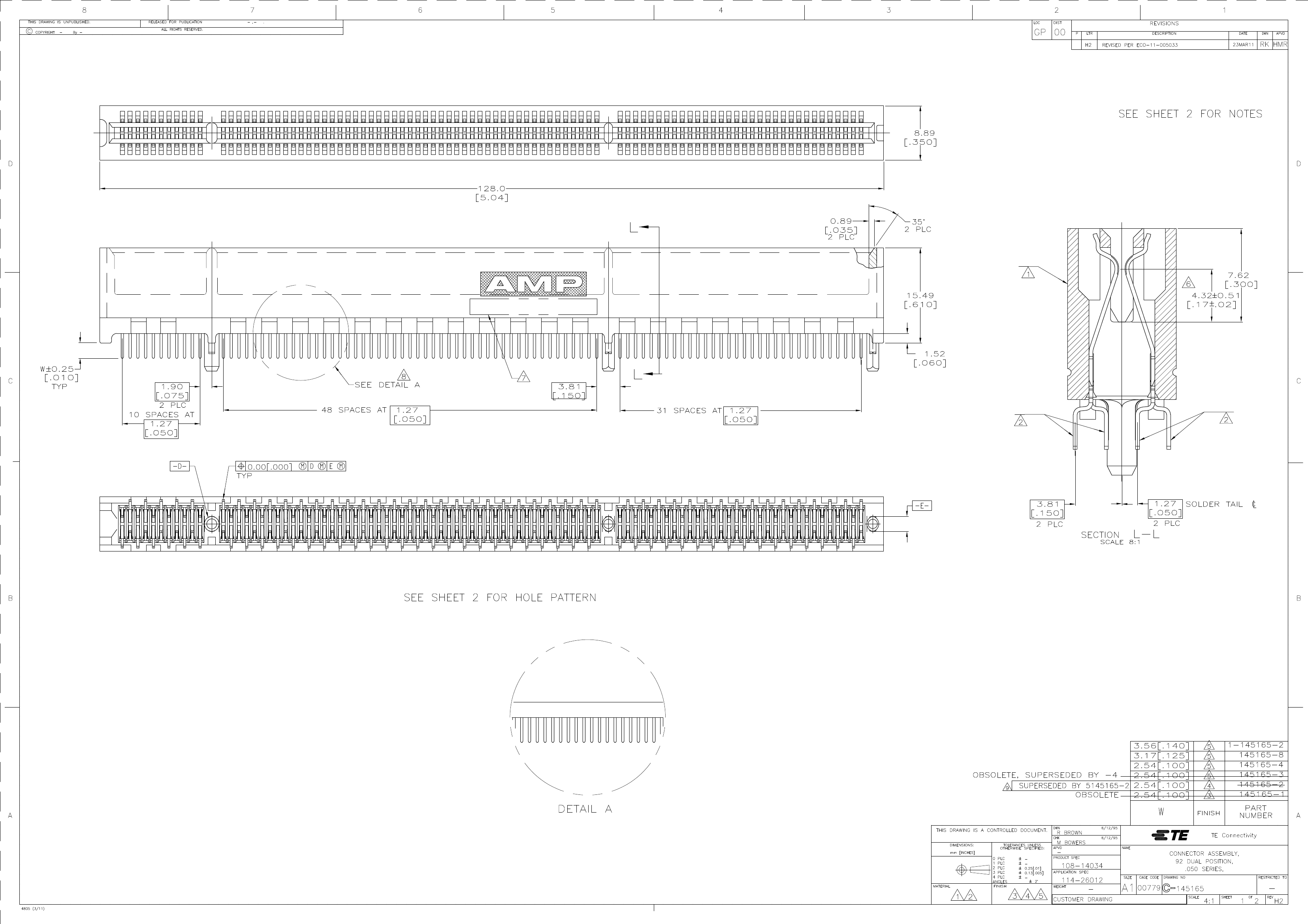

145165-4 Overview

184 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER

145165-4 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1505550081
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2018-07-10 09:37:00
Other featuresSTAGGERED CONFIGURATION
Board mount optionsPEG
body width0.35 inch
subject depth0.61 inch
body length5.04 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability100 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialPOLYETHYLENE
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number145165
Plug contact pitch0.05 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE

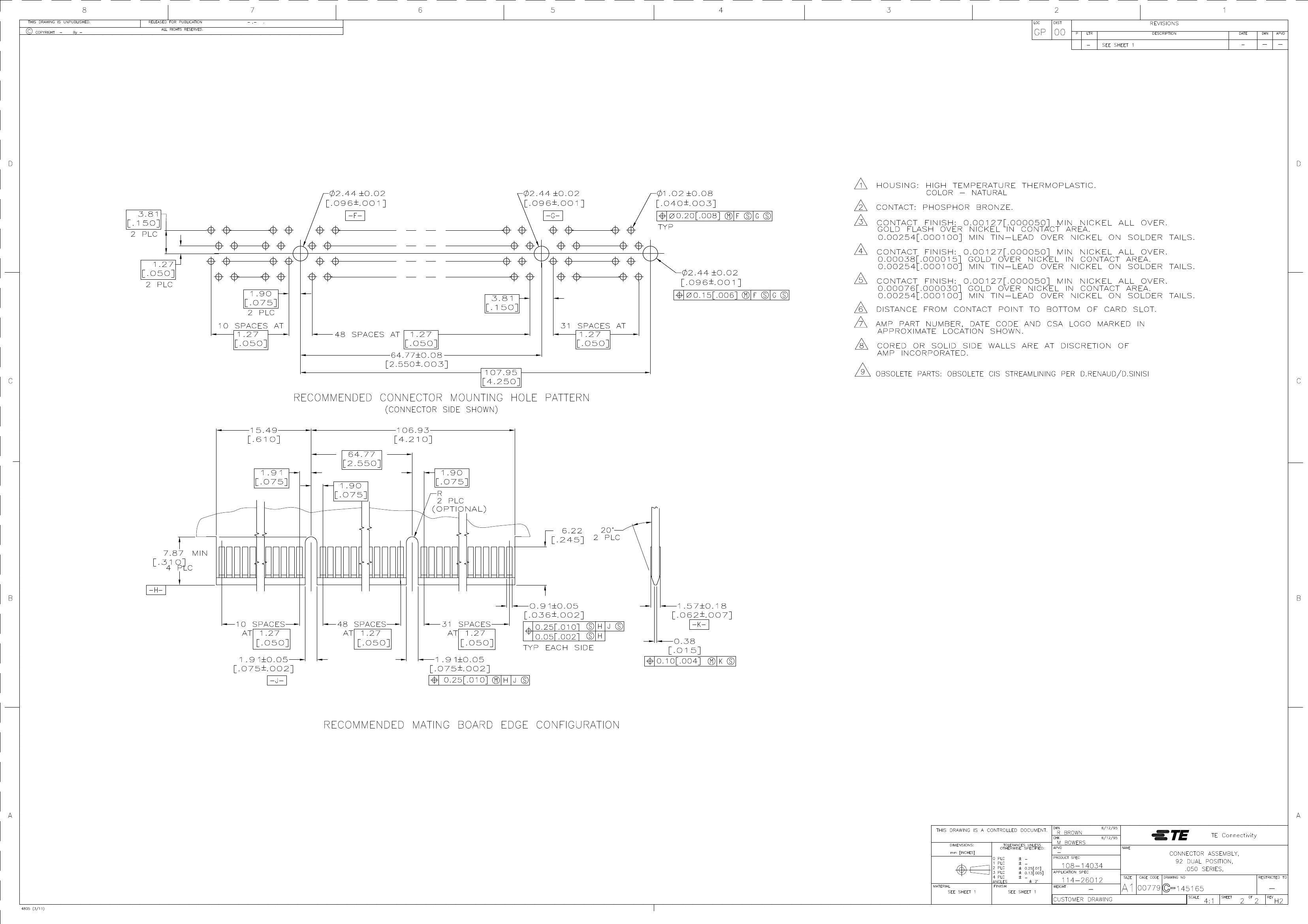

PCB contact patternSTAGGERED
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)1 A
GuidelineCSA
reliabilityCOMMERCIAL
Terminal length0.1 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts184
Evacuation force-minimum value.139 N
