M80-420842P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-420842P

M80-420842P: DescriptionBoard Connector; CategoryThe connector The connector; File Size4MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-420842P Overview

Board Connector

M80-420842P Parametric

Parameter Name	Attribute value
Objectid	1973306172
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR

Preview

Download Datasheet

View All

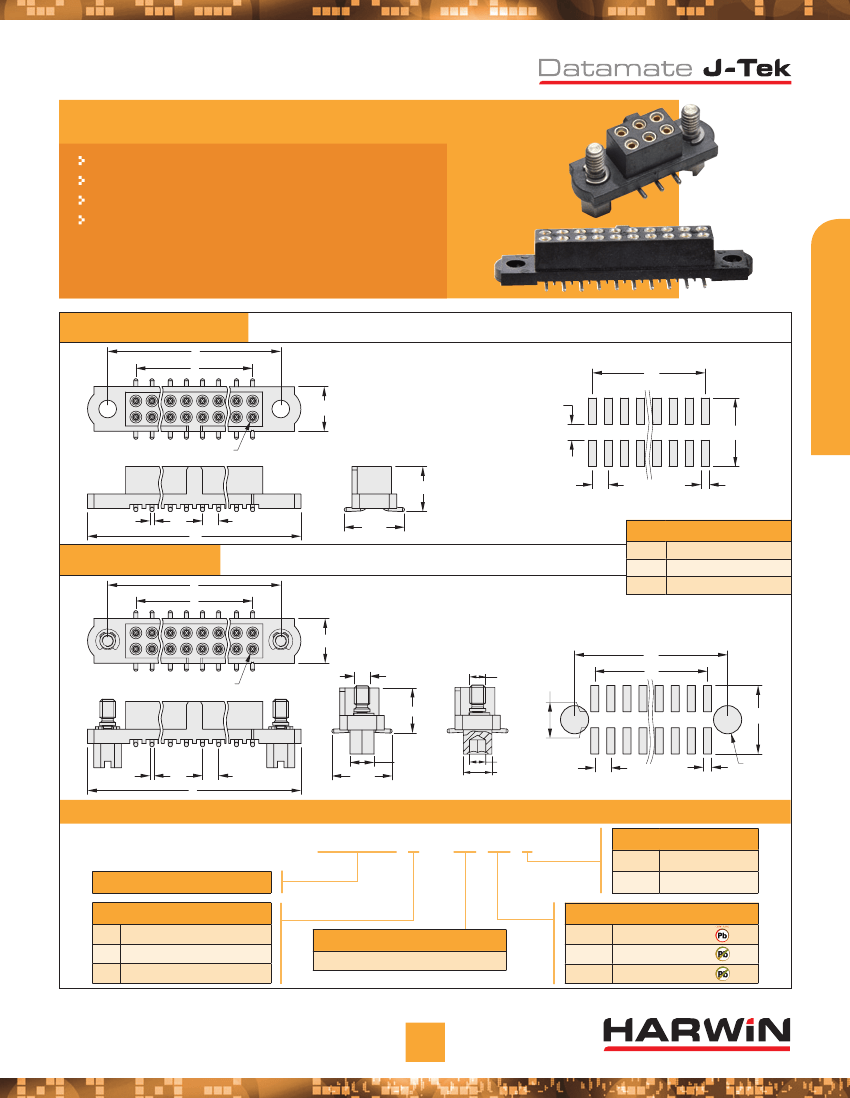

Datamate Connectors

Female Vertical Surface Mount

Optional pick and place cap.

Contact

datamate@harwin.com

for tape and reel options.

Gull wing SMT tails simplify inspection process.

Mates with male connectors shown on pages 52, 54, 56,

58, 60, 63 and 64.

wITHOuT JACKSCrEwS

5.55

2.00

8.50

No. 1 contact

5.60

2.00

1.00

0.50

recommended PC Board Pattern

2.00

7.50

CALCULAtion

B + 12

Total no. of contacts - 2

B+7

wITH JACKSCrEwS

5.55

No. 1 contact

5.60

2.00

8.50

0.50

3.00 A/F

2.00

7.50

M80-402

M80-422

2.00 A/F

3.50

2.00

1.00

3.50

min

recommended PC Board Pattern

HOw TO OrDEr

M80 - 4 X 2 XX XX P

seRies CoDe

tyPe

With Hex Slotted Jackscrews

Without Jackscrews

With Hex Socket Jackscrews

PiCk AnD PLACe CAP

BLAnk

No cap

Pick and place cap

Finish

totAL no. oF ContACts

04 to 50

Even numbers only

Gold + Tin/Lead

Gold

Gold + Tin

All dimensions in mm.

www.harwin.com

DATAMATE J-TEK
