1-499582-2 datasheet, PDF - EEWORLD Datasheet

1-499582-2: Description64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size579KB，7 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1-499582-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-499582-2	-	-	View	Buy Now

64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1504837442
Reach Compliance Code	compliant
Other features	AMP-LATCH, POLARIZED
Board mount options	HOLE .099-.111
body width	0.336 inch
subject depth	0.549 inch
body length	3.96 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	499582
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.174 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	64
UL Flammability Code	94V-0

Product

Specification

108-40019

11 Mar 11 Rev C

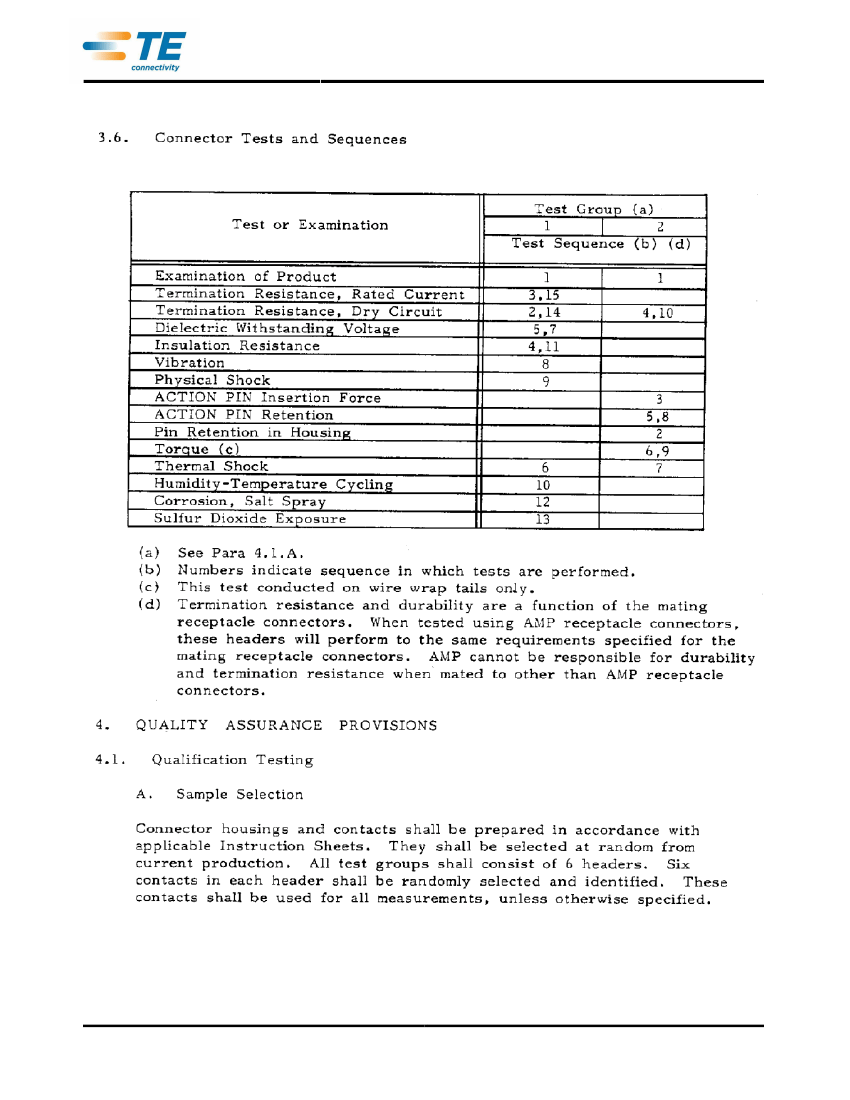

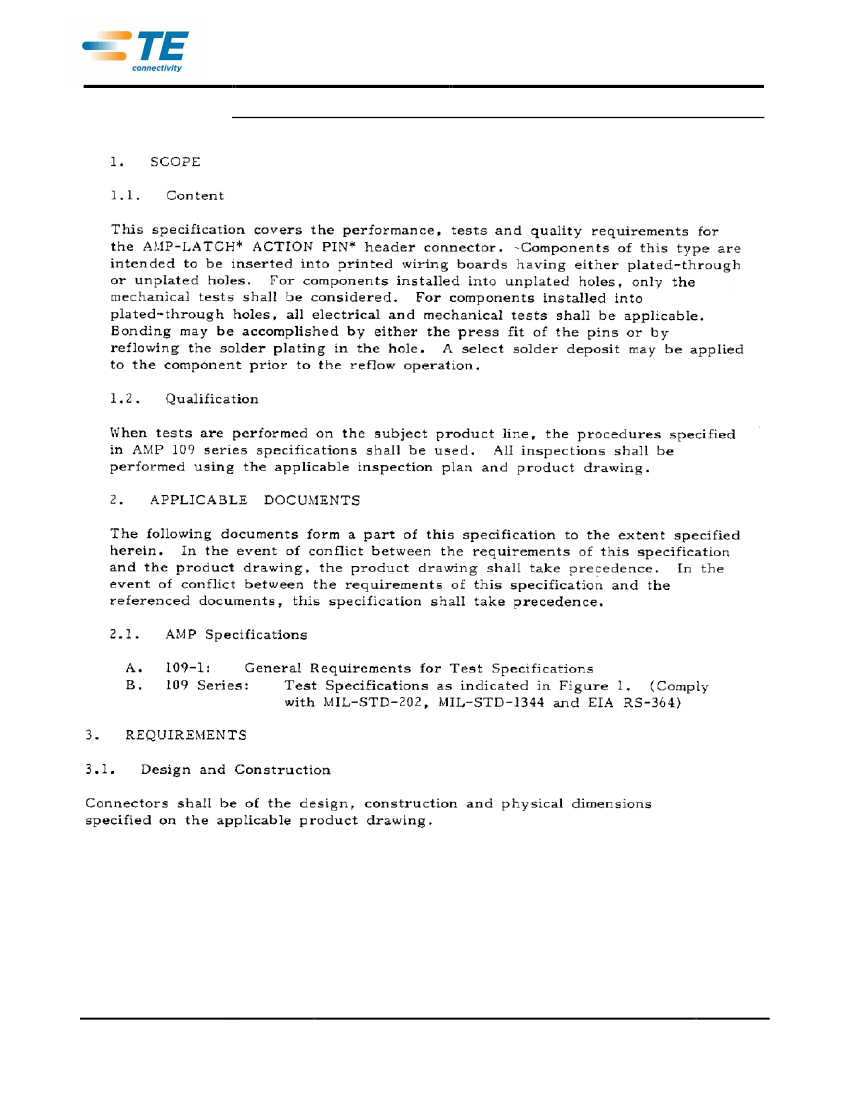

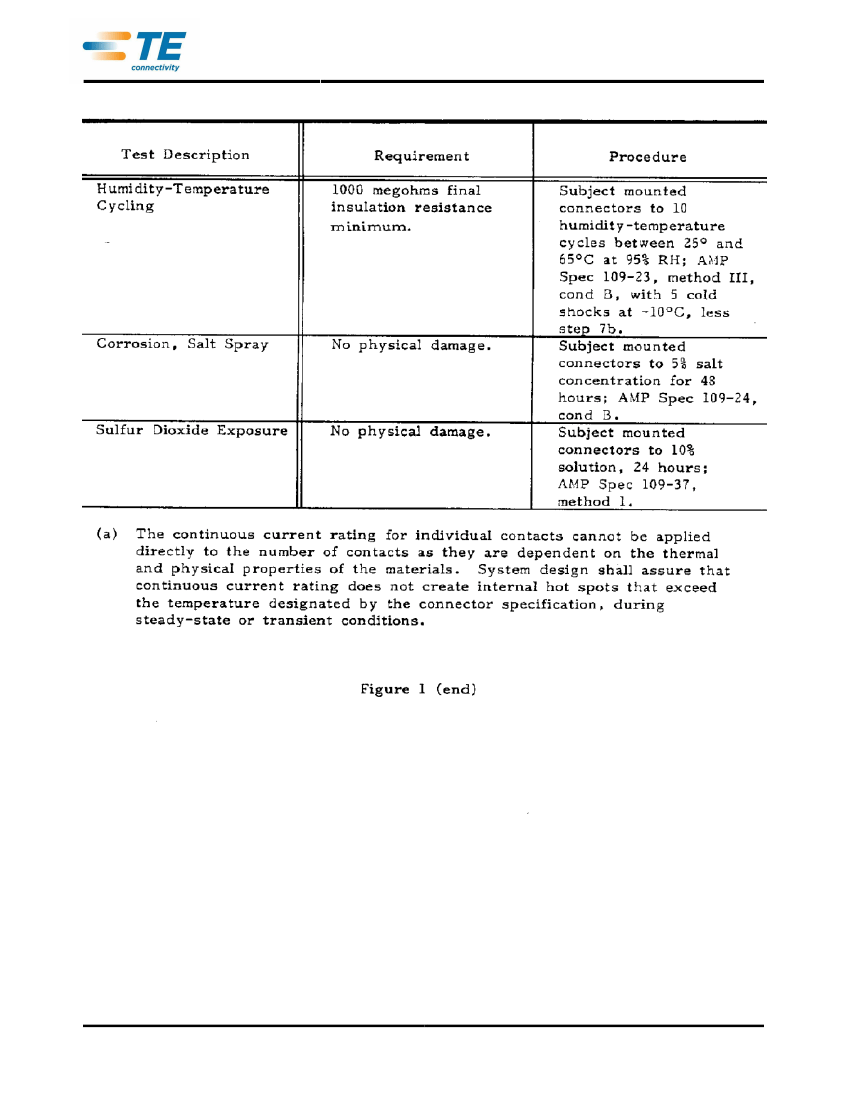

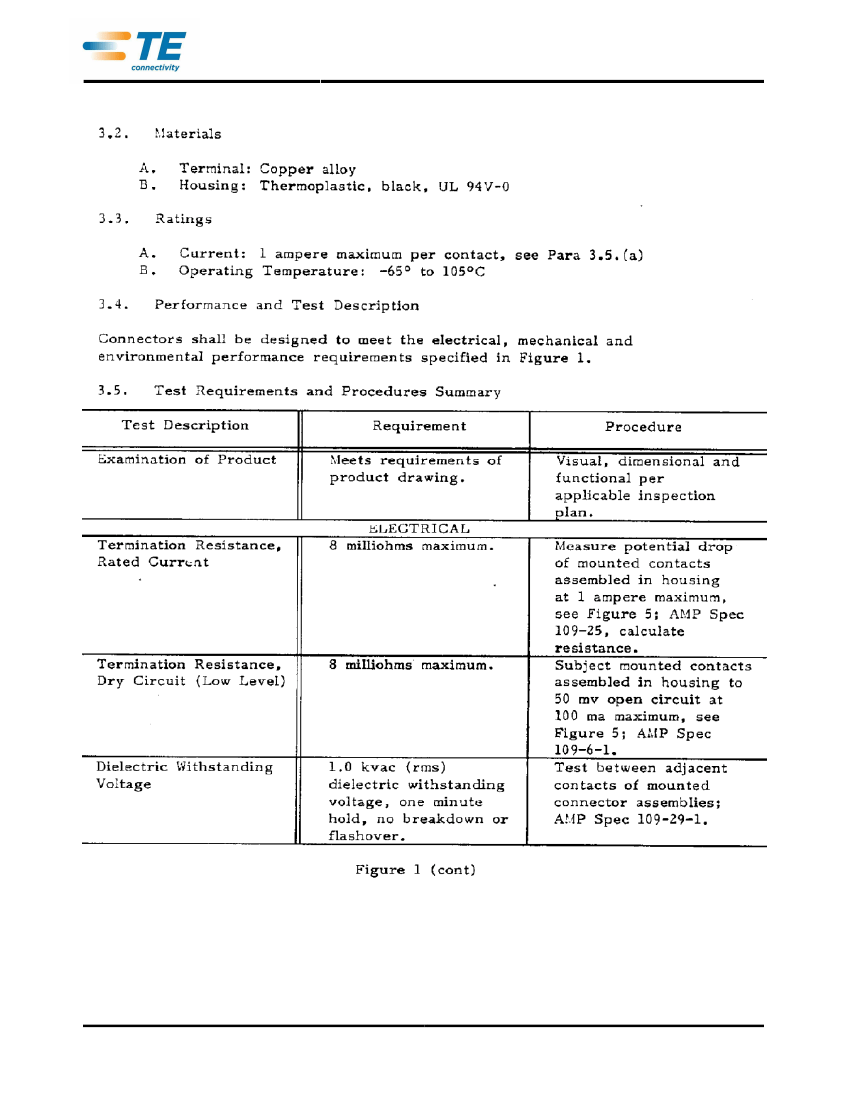

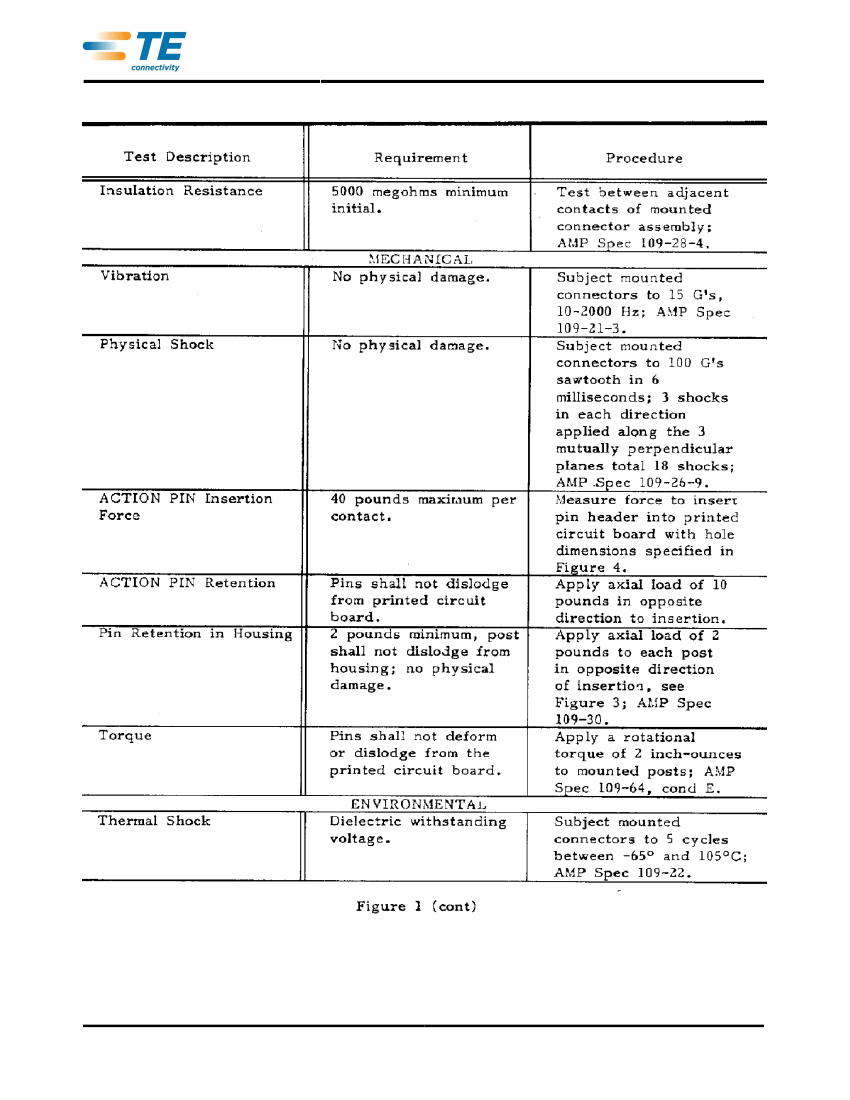

AMP-LATCH* ACTION PIN* Header Connector

a TE Connectivity Ltd. Company

TE logo is a trademark.

| Indicates Change

*Trademark

For latest revision, visit out website at www.te.com/documents

For Regional Customer service, visit our website at www.te.com

Other products, logos, and company names might be trademarks of their respective owners.

1 of 7
