1-1761693-3 datasheet, PDF - EEWORLD Datasheet

1-1761693-3: Description40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

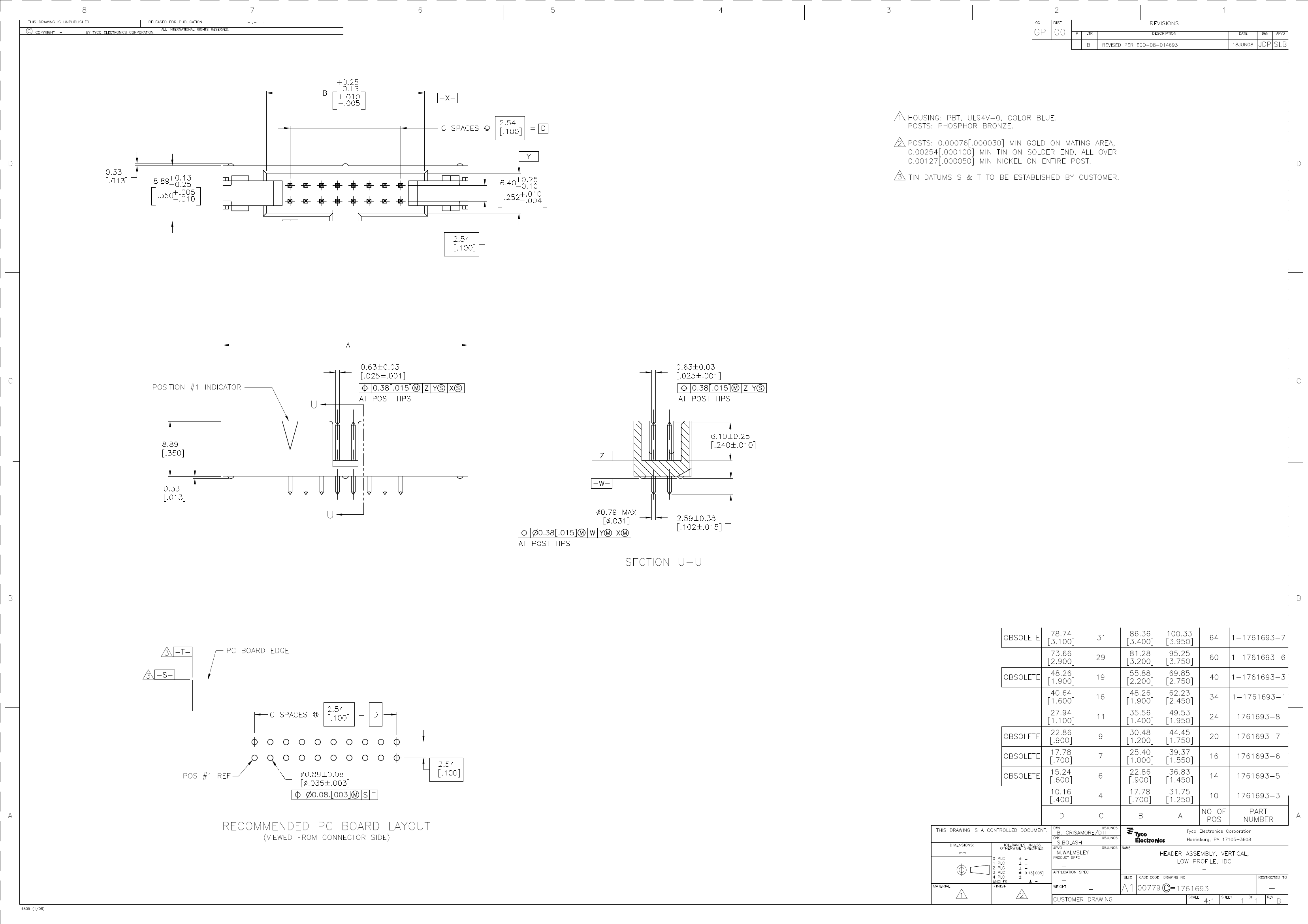

1-1761693-3 Overview

40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	1761693
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

	1-1761693-3	1-1761693-7	1761693-5	1761693-6	1761693-7
Description	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	64 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	14 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	16 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	20 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	1761693	1761693	1761693	1761693	1761693
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	40	64	14	16	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1
