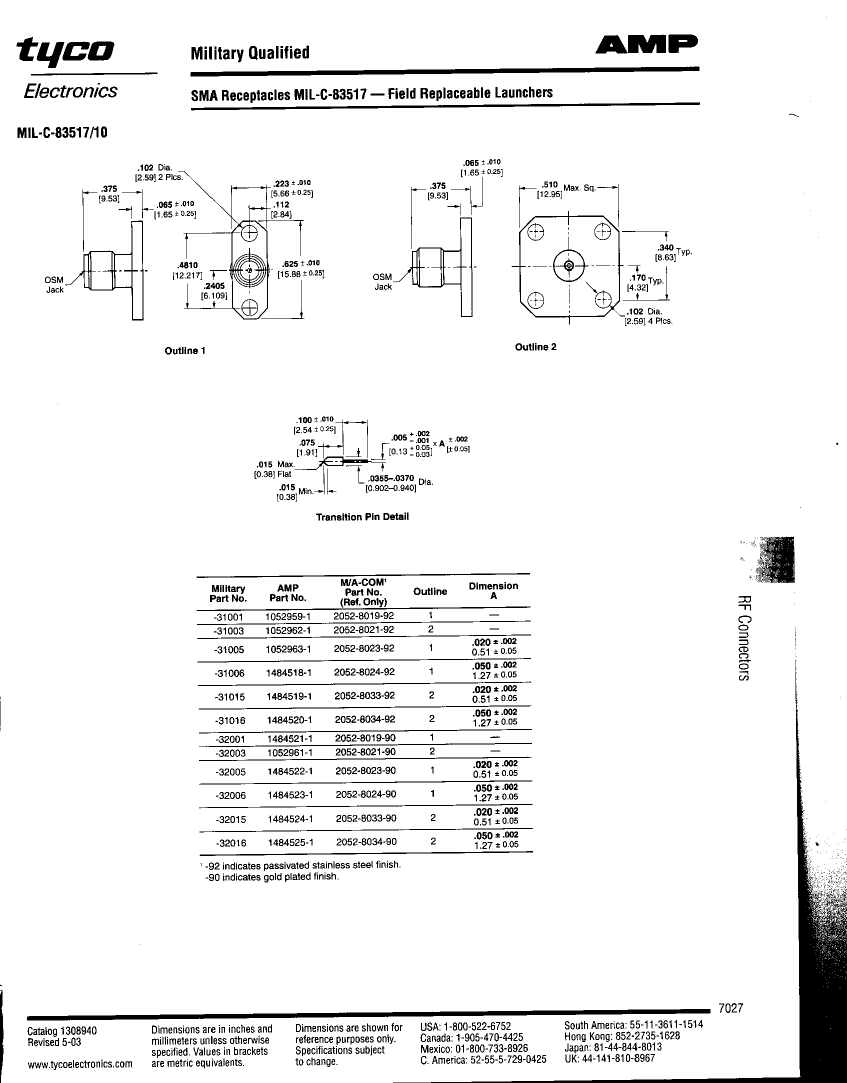

PANEL MOUNT, FEMALE, SMA CONNECTOR, RECEPTACLE
| Parameter Name | Attribute value |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | STANDARD: MIL-C-83517/10 |
| Body/casing type | RECEPTACLE |
| Connector type | RF SMA CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Coupling type | THREADED |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | YES |
| Installation method | STRAIGHT |
| Options | GENERAL PURPOSE |
| Panel mounting | YES |
| Base Number Matches | 1 |
| 1484523-1 | 1484525-1 | M80-4T11405F3-03-322-01-321 | M80-4T1160500-06-321-11-322 | M80-4T1160500-09-322-01-321 | M80-4T11605F1-07-322-10-322 | M80-4T11605F1-12-321-05-321 | 1484524-1 | |
|---|---|---|---|---|---|---|---|---|
| Description | PANEL MOUNT, FEMALE, SMA CONNECTOR, RECEPTACLE | PANEL MOUNT, FEMALE, SMA CONNECTOR, RECEPTACLE | Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug | Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug | Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug | Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug | Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug | PANEL MOUNT, FEMALE, SMA CONNECTOR, RECEPTACLE |
| Reach Compliance Code | unknown | unknown | compliant | compliant | compliant | compliant | compliant | unknown |
| Body/casing type | RECEPTACLE | RECEPTACLE | PLUG | PLUG | PLUG | PLUG | PLUG | RECEPTACLE |
| Connector type | RF SMA CONNECTOR | RF SMA CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | RF SMA CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | AU | AU | AU | AU | AU | NOT SPECIFIED |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Objectid | - | 2087137358 | 308626939 | 308651743 | 308652378 | 308654687 | 308655654 | - |
| Is it Rohs certified? | - | - | conform to | conform to | conform to | conform to | conform to | - |
| ECCN code | - | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - |
| body width | - | - | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch | 0.219 inch | - |
| subject depth | - | - | 0.205 inch | 0.205 inch | 0.205 inch | 0.205 inch | 0.205 inch | - |
| body length | - | - | 1.575 inch | 3.701 inch | 2.598 inch | 3.701 inch | 3.701 inch | - |
| Contact completed and terminated | - | - | Gold (Au) | Gold (Au) | Gold (Au) | Gold (Au) | Gold (Au) | - |
| Contact material | - | - | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | BERYLLIUM COPPER | - |
| Contact resistance | - | - | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | 25 mΩ | - |
| Contact style | - | - | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | - |
| Durability | - | - | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | - |
| Insulation resistance | - | - | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | 100000000 Ω | - |
| Insulator color | - | - | BLACK | BLACK | BLACK | BLACK | BLACK | - |
| insulator material | - | - | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | - |
| JESD-609 code | - | - | e4 | e4 | e4 | e4 | e4 | - |
| Manufacturer's serial number | - | - | M80 | M80 | M80 | M80 | M80 | - |
| Mixed contacts | - | - | YES | YES | YES | YES | YES | - |
| Installation option 1 | - | - | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | - |
| Installation type | - | - | BOARD | BOARD | BOARD | BOARD | BOARD | - |
| Number of connectors | - | - | ONE | ONE | ONE | ONE | ONE | - |
| Maximum operating temperature | - | - | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | - |
| Minimum operating temperature | - | - | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | - |
| Plating thickness | - | - | 12u inch | 12u inch | 12u inch | 12u inch | 12u inch | - |
| Rated current (signal) | - | - | 3 A | 3 A | 3 A | 3 A | 3 A | - |
| Guideline | - | - | UL | UL | UL | UL | UL | - |
| reliability | - | - | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - |
| Terminal length | - | - | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | 0.118 inch | - |
| Termination type | - | - | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | - |
