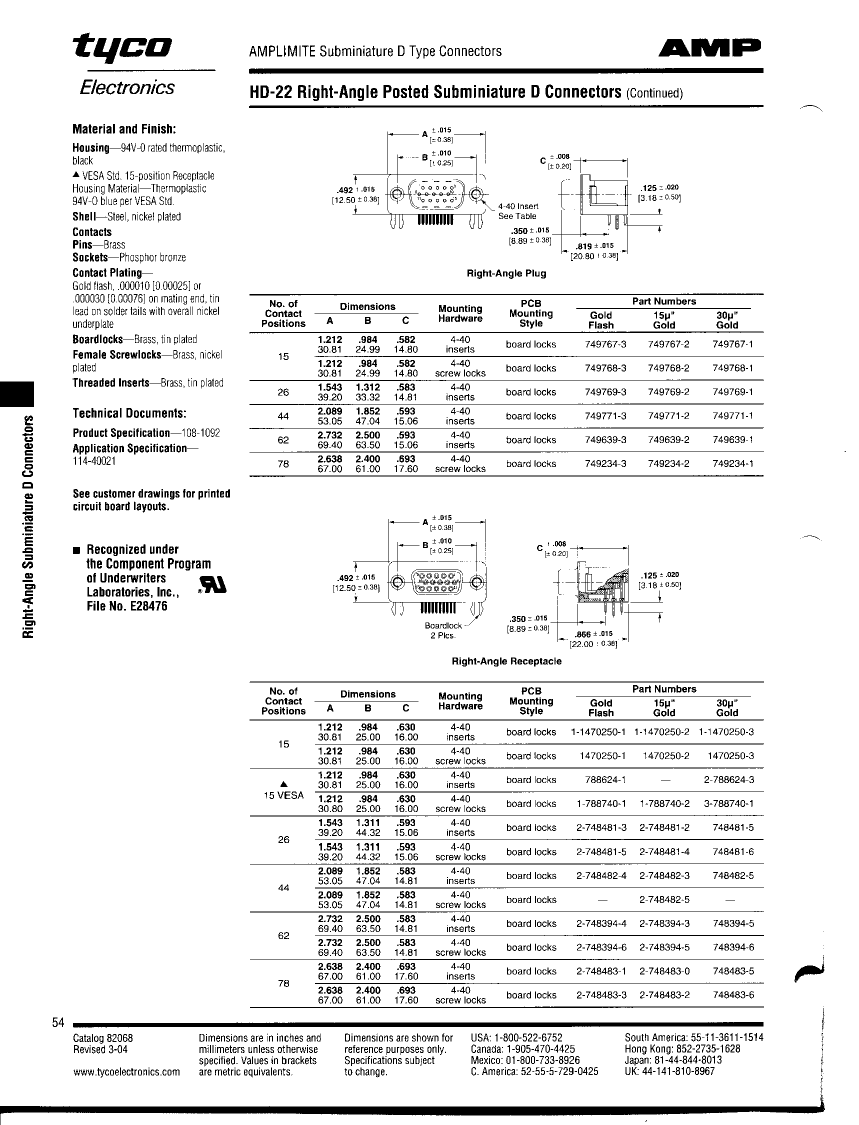

CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Other features | TRAY PACKAGING |
| body width | 0.492 inch |
| subject depth | 0.63 inch |
| body length | 1.213 inch |
| Body/casing type | PLUG |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| maximum insertion force | 2.9468 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 1470250 |
| Plug contact pitch | 0.09 inch |
| Match contact row spacing | 0.078 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | SCREWLOCKS |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 130 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.9812 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | CARBON STEEL |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.286 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Evacuation force-minimum value | .1946 N |
| Base Number Matches | 1 |
| 1470250-1 | 749768-3 | 1-1470250-1 | 1470250-2 | |
|---|---|---|---|---|
| Description | CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40 | CONNECTOR, 15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG | CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40 | CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | unknown | compliant | compliant |
| Other features | TRAY PACKAGING | AMPLIMITE | TRAY PACKAGING | TRAY PACKAGING |
| Body/casing type | PLUG | PLUG | PLUG | PLUG |
| Contact to complete cooperation | NOT SPECIFIED | GOLD FLASH | AU ON NI | NOT SPECIFIED |
| Contact point gender | FEMALE | MALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | BRASS | PHOSPHOR BRONZE | NOT SPECIFIED |
| insulator material | THERMOPLASTIC | POLYETHYLENE | POLYETHYLENE | POLYETHYLENE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Shell surface | NICKEL | TIN | NICKEL | NICKEL |
| Shell material | CARBON STEEL | STEEL | CARBON STEEL | CARBON STEEL |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 15 | 15 | 15 | 15 |
| body width | 0.492 inch | - | 0.492 inch | 0.492 inch |
| subject depth | 0.63 inch | - | 0.63 inch | 0.63 inch |
| body length | 1.213 inch | - | 1.213 inch | 1.213 inch |
| contact mode | STAGGERED | - | STAGGERED | STAGGERED |
| Contact resistance | 20 mΩ | - | 20 mΩ | 20 mΩ |
| Contact style | RND PIN-SKT | - | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | - | 1000VAC V | 1000VAC V |
| maximum insertion force | 2.9468 N | - | 2.9468 N | 2.9468 N |
| Insulation resistance | 1000000000 Ω | - | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | - | BLACK | BLACK |
| Plug contact pitch | 0.09 inch | - | 0.09 inch | 0.09 inch |
| Match contact row spacing | 0.078 inch | - | 0.078 inch | 0.078 inch |
| Installation option 1 | #4-40 | - | #4-40 | #4-40 |
| Installation option 2 | SCREWLOCKS | - | THREADED | SCREWLOCKS |
| Installation method | RIGHT ANGLE | - | RIGHT ANGLE | RIGHT ANGLE |
| PCB row number | 3 | - | 3 | 3 |
| Number of rows loaded | 3 | - | 3 | 3 |
| Maximum operating temperature | 130 °C | - | 130 °C | 130 °C |
| Minimum operating temperature | -55 °C | - | -55 °C | -55 °C |
| PCB contact pattern | STAGGERED | - | STAGGERED | STAGGERED |
| PCB contact row spacing | 1.9812 mm | - | 1.9812 mm | 1.9812 mm |
| Plating thickness | FLASH inch | - | FLASH inch | 15u inch |
| Rated current (signal) | 2 A | - | 2 A | 2 A |
| Guideline | UL, CSA | - | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.125 inch | - | 0.125 inch | 0.125 inch |
| Terminal pitch | 2.286 mm | - | 2.286 mm | 2.286 mm |
| Evacuation force-minimum value | .1946 N | - | .1946 N | .1946 N |
| Options | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
