1-1470250-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-1470250-6

1-1470250-6: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size226KB，13 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-1470250-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1470250-6	-	-	View	Buy Now

1-1470250-6 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40

1-1470250-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	303814855
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGING
body width	0.492 inch
subject depth	0.63 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.9468 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	130 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	CARBON STEEL
Terminal length	0.085 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	.1946 N

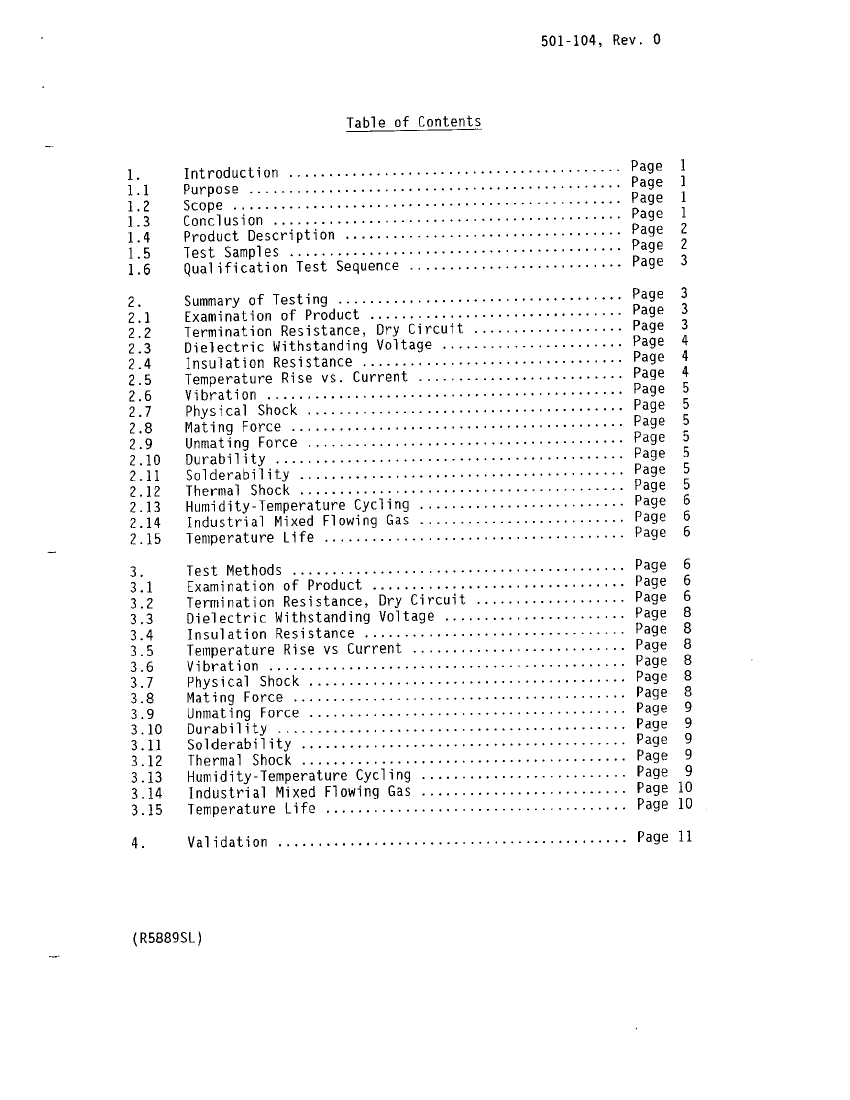

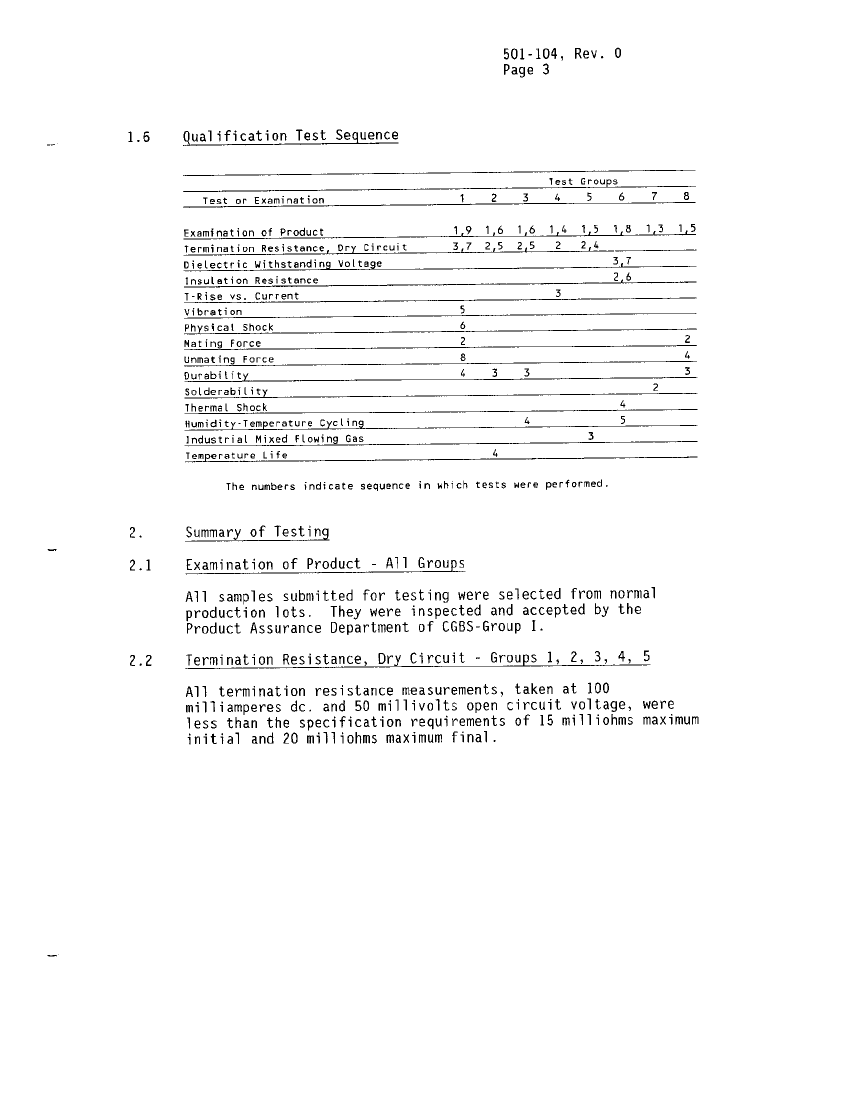

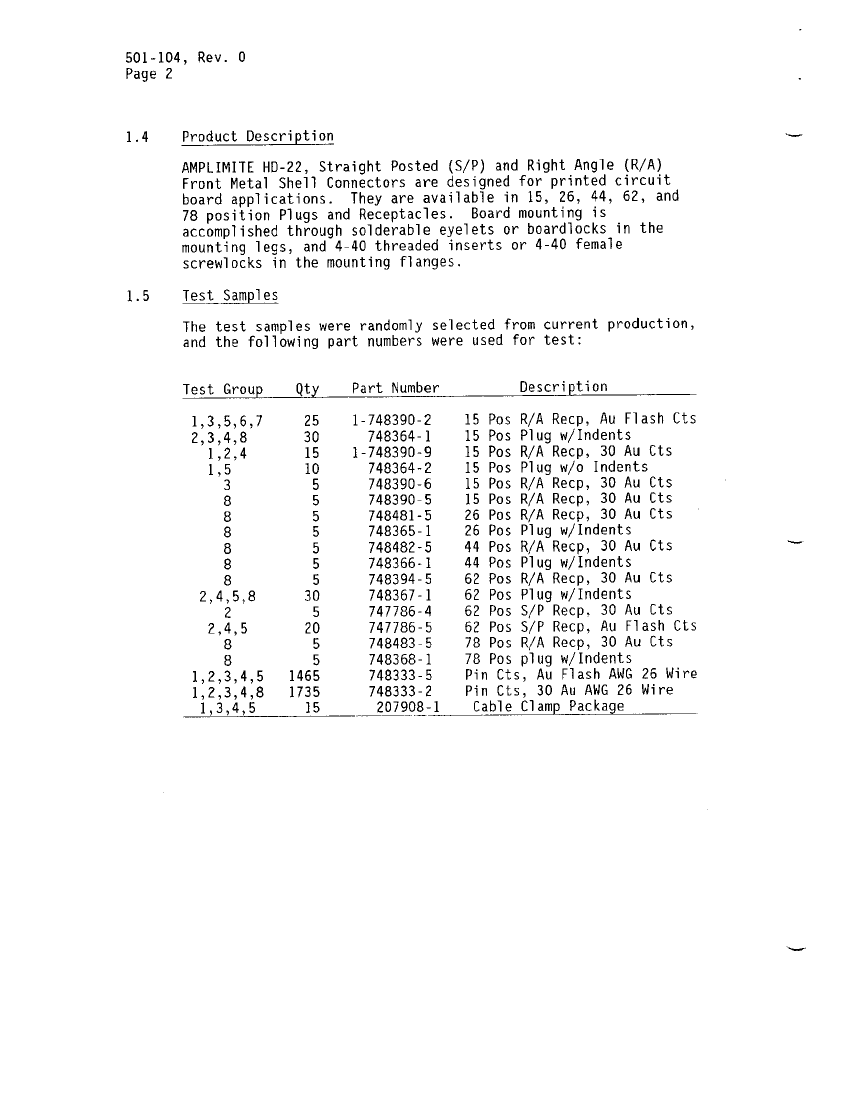

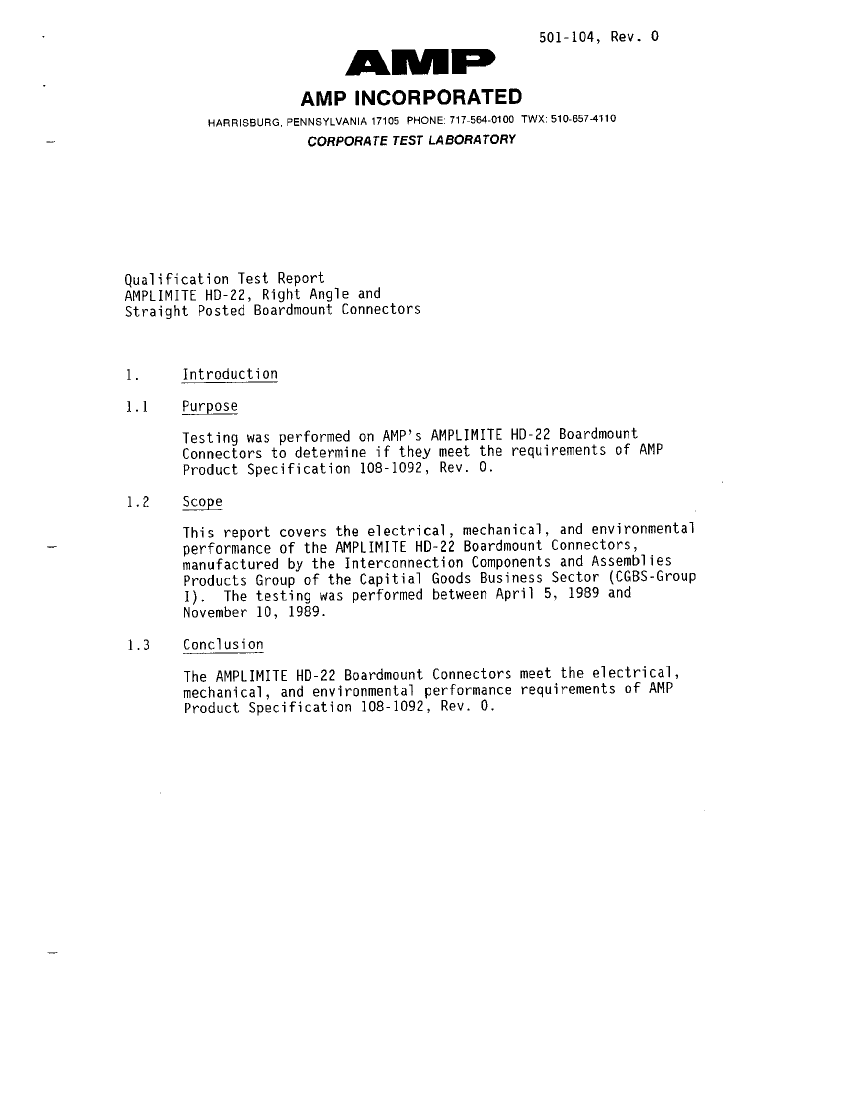

Preview

Download Datasheet

View All

1-1470250-6 Related Products

	1-1470250-6	750489-3	3-748389-5	788623-3	750489-1
Description	CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40	15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG	CONNECTOR, 15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	26 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant
Other features	TRAY PACKAGING	AMPLIMITE	AMPLIMITE	AMPLIMITE	AMPLIMITE
Body/casing type	PLUG	PLUG	RECEPTACLE	RECEPTACLE	PLUG
Contact to complete cooperation	AU ON NI	GOLD (15)	GOLD FLASH	GOLD (15)	GOLD (30)
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	MALE
Contact material	PHOSPHOR BRONZE	BRASS	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
insulator material	POLYETHYLENE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER	GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER	GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER	GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
Installation type	BOARD	BOARD AND PANEL	BOARD	BOARD	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	TIN	NICKEL	NICKEL
Shell material	CARBON STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	26	15
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER COPPER	TIN LEAD	-	Tin (Sn)
Maker	-	TE Connectivity	-	TE Connectivity	TE Connectivity
Connector type	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
DIN compliance	-	NO	NO	NO	NO
empty shell	-	NO	NO	NO	NO
Filter function	-	NO	NO	NO	NO
IEC compliance	-	NO	NO	NO	NO
JESD-609 code	-	e3	e0	-	e3
MIL compliance	-	NO	NO	NO	NO
Manufacturer's serial number	-	750489	3-748389-5	-	750489
Mixed contacts	-	NO	NO	NO	NO
Housing size	-	1/E	1/E	2/A	1/E
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	-
