CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40

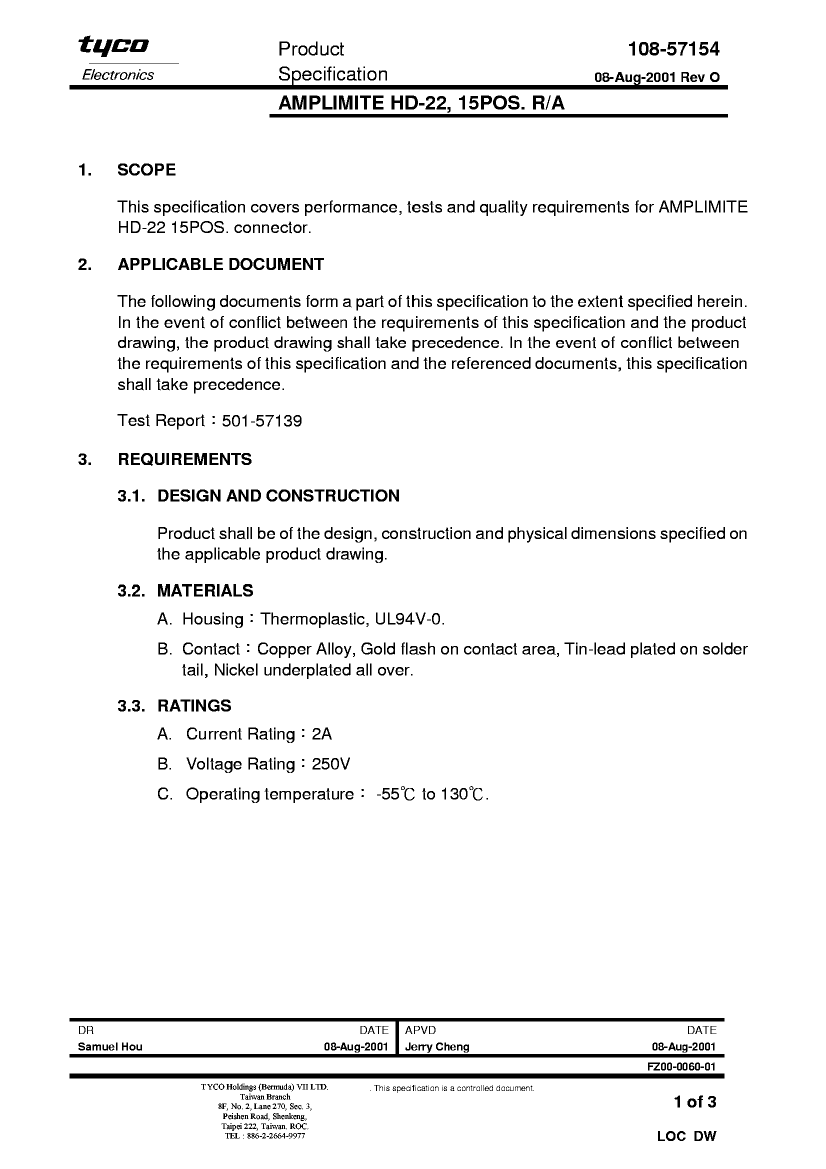

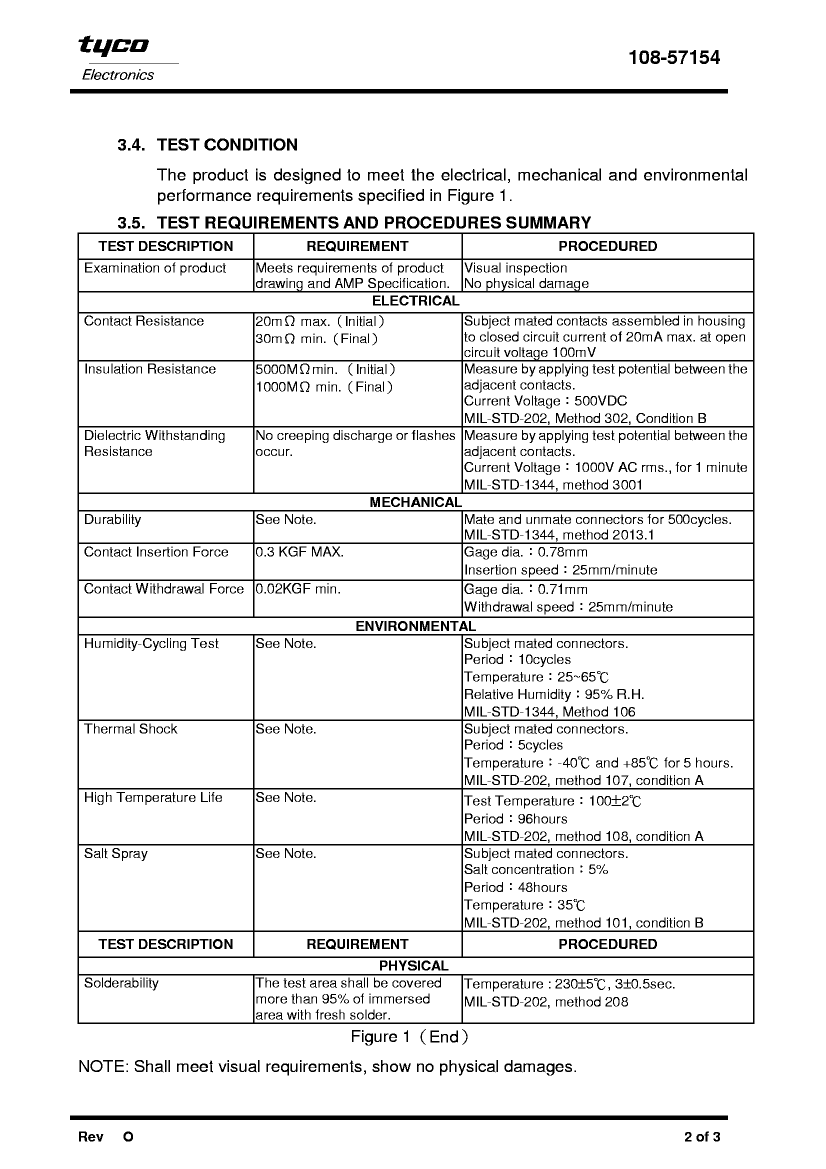

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| Is Samacsys | N |
| Other features | TRAY PACKAGING |
| body width | 0.492 inch |
| subject depth | 0.63 inch |
| body length | 1.213 inch |
| Body/casing type | PLUG |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN/LEAD OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| maximum insertion force | 2.9468 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLUE |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 788624 |
| Plug contact pitch | 0.09 inch |
| Match contact row spacing | 0.078 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | SCREWLOCKS |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 130 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 2 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | CARBON STEEL |
| Terminal length | 0.105 inch |
| Terminal pitch | 2.286 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Evacuation force-minimum value | .1946 N |
| Base Number Matches | 1 |
| 1-788624-2 | 788624-4 | 788624-5 | M80-4T1180100-08-321-12-301 | |
|---|---|---|---|---|
| Description | CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40 | CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40 | CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.09 PITCH,PC TAIL TERMINAL,#4-40 | Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant | unknown | compliant |
| body width | 0.492 inch | 0.492 inch | 0.492 inch | 0.219 inch |
| subject depth | 0.63 inch | 0.63 inch | 0.63 inch | 0.205 inch |
| body length | 1.213 inch | 1.213 inch | 1.213 inch | 4.252 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU |
| Contact completed and terminated | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL | TIN/LEAD OVER NICKEL | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | BERYLLIUM COPPER |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 25 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 100000000 Ω |
| Insulator color | BLUE | BLUE | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Manufacturer's serial number | 788624 | 788624 | 788624 | M80 |
| Installation option 1 | #4-40 | #4-40 | #4-40 | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Maximum operating temperature | 130 °C | 130 °C | 130 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Plating thickness | FLASH inch | 10u inch | 15u inch | 12u inch |
| Rated current (signal) | 2 A | 2 A | 2 A | 3 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.105 inch | 0.126 inch | 0.105 inch | 0.118 inch |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity | - |
| Other features | TRAY PACKAGING | TUBE PACKAGING, WITHOUT SCREW | TUBE PACKAGING | - |
| contact mode | STAGGERED | STAGGERED | STAGGERED | - |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | - |
| maximum insertion force | 2.9468 N | 2.9468 N | 2.9468 N | - |
| Plug contact pitch | 0.09 inch | 0.09 inch | 0.09 inch | - |
| Match contact row spacing | 0.078 inch | 0.078 inch | 0.078 inch | - |
| Installation option 2 | SCREWLOCKS | THREADED RIVET | SCREWLOCKS | - |
| PCB row number | 3 | 3 | 3 | - |
| Number of rows loaded | 3 | 3 | 3 | - |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED | - |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | - |
| Shell surface | NICKEL | NICKEL | NICKEL | - |
| Shell material | CARBON STEEL | CARBON STEEL | CARBON STEEL | - |
| Terminal pitch | 2.286 mm | 2.286 mm | 2.286 mm | - |
| Total number of contacts | 15 | 15 | 15 | - |
| Evacuation force-minimum value | .1946 N | .1946 N | .1946 N | - |
| Base Number Matches | 1 | 1 | 1 | - |
