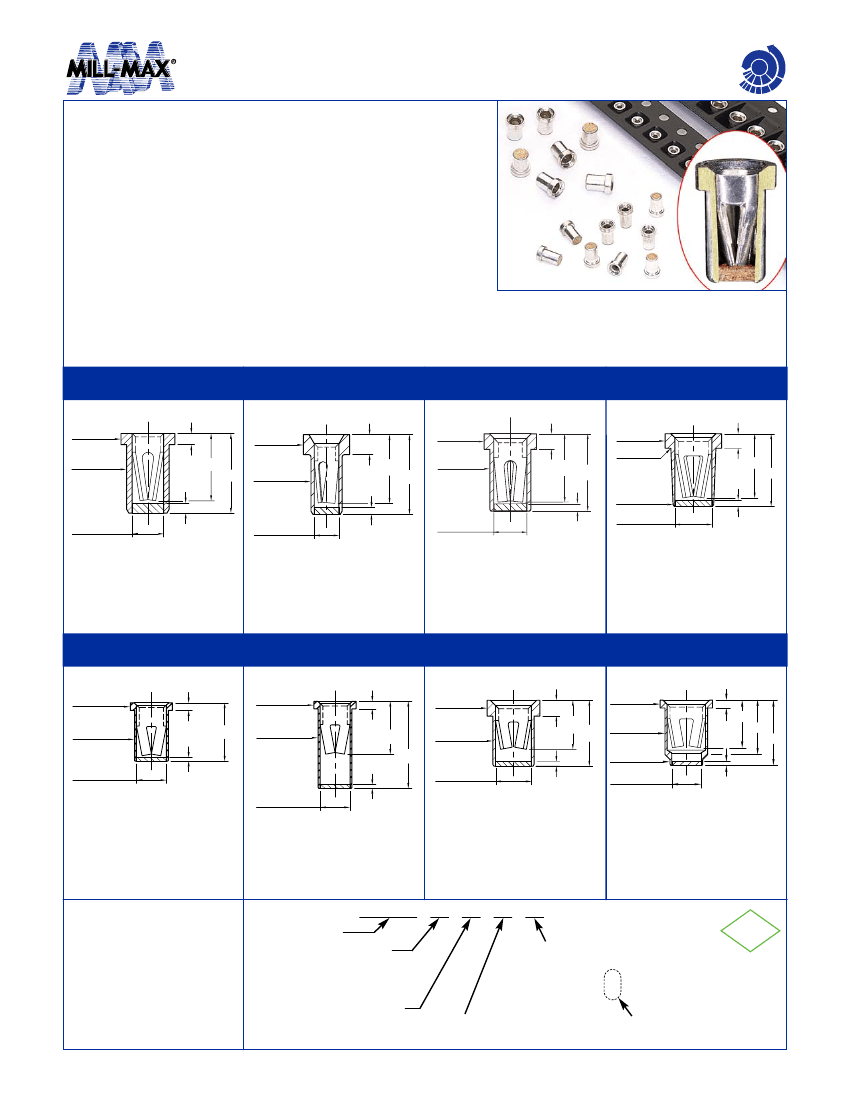

PIN RECEPTACLES
With Organic Fibre Plug® Solder Barrier
• These thru-hole (tubular) receptacles are designed for hand,
wave or reflow* soldering. The
ORGANIC FIBRE PLUG®
barrier prevents solder, paste or flux from contaminating the
spring contact.
• After soldering, the
OFP®
barrier is pushed out of the recep-
tacle when the device is plugged in.
• All parts are available as discrete receptacles; but for SMT
assembly, certain receptacles are supplied on carrier tape
per EIA-481 to feed industry standard pick and place
machines.
M
ON
S
I
CHI
A
PINS
*Intrusive reflow (also called "pin-in-paste") is a technique of using conven-
tional thru-hole components in a reflow soldering process. The receptacles
are placed into plated-thru-holes in the circuit board (solder paste has previously been screen printed on pads adjacent to the
holes) and the board is reflowed in the same pass as other SMT components. Solder will fill the plated-thru-holes and achieve
solder joints as reliable as wave soldering. The OFP® barrier prevents solder paste from being picked-up inside the contact
during pick ‘n place assembly. "Overprinting" paste on the solder mask can be used to adjust the volume of paste required to fill
each hole.
NE
D
5359
.048 DIA.
.038 DIA.
.010
.060
.071
0577
4015
.068 DIA.
.052 DIA.
.020
.089 .100
4280
.078 DIA.
.062 DIA.
.020
.089
.100
.056 DIA.
.028 DIA.
.009
.043 DIA.
.009
.051 DIA.
.009
5359-0-XX-XX-10-XX-10-0
0577-0-XX-XX-21-XX-10-0
4015-0-XX-XX-30-XX-10-0
Solder mount in Ø.057±.003 PTH.
#30
Contact for Ø.015-.025 pins.
Also available on 8mm wide carrier tape:
5,500 per 13” reel or 1,500 per 7” reel.
4280-0-XX-XX-16-XX-10-0
Solder mount in Ø.067±.003 PTH.
#16
Contact for Ø.022-.034 pins.
Also available on 8mm wide carrier tape:
5,500 per 13” reel or 1,500 per 7” reel.
Solder mount in Ø.043±.003 PTH. Solder mount in Ø.045±.003 PTH.
#10
Contact for Ø.012-.017 pins.
#21
Contact for Ø.015-.022 pins.
Also available on 16mm wide carrier Also available on 12mm wide carrier tape:
tape: 3,000 parts per 13” reel.
3,000 per 13” reel or 700 per 7” reel.
0479
0379
.090 DIA.
.072 DIA.
.018
.125
.206
9873
.100 DIA.
.078 DIA.
.030
5364
.120 DIA.
.110
.018 .125
.150
.093
.125
.098 DIA.
.075 DIA.
.068 DIA.
.009
.067 DIA.
.009
.064 DIA.
.009
0479-0-XX-XX-34-XX-10-0
0379-0-43-XX-34-XX-10-0
9873-0-XX-XX-02-XX-10-0
Solder mount in Ø.083±.003 PTH.
#02
Contact for Ø.040-.050 pins.
Also available on 12mm wide carrier tape:
4,500 per 13” reel or 1,200 per 7” reel.
5364-0-XX-XX-23-XX-10-0
Solder mount in Ø.103±.003 PTH.
#23
Contact for Ø.045-.065 pins.
Also available on 12mm wide carrier tape:
2,000 per 13” reel or 500 per 7” reel.
Solder mount in Ø.077±.003 PTH. Solder mount in Ø.077±.003 PTH.
#34
Contact for Ø.032-.046 pins.
#34
Contact for Ø.032-.046 pins.
Also available on 16mm wide carrier
tape: 2,000 parts per 13” reel.
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
SOLDER BARRIER:
Organic Fibre Plug®
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - 0 - XX - XX - XX - XX -10 - 0
BASIC PART #
SPECIFY PACKAGING:
43
Discrete Receptacles
67
Supplied on 13” Reels
65
Supplied on 7” Reels
SPECIFY SHELL FINISH:
01
200m" TIN/LEAD OVER NICKEL
80
200m" TIN OVER NICKEL
SPECIFY CONTACT FINISH:
27
30µ" GOLD OVER NICKEL
01
200µ" TIN/LEAD or
02
100µ" TIN/LEAD, BOTH OVER NICKEL
80
200µ" TIN or
84
100µ" TIN, BOTH OVER NICKEL
CONTACT #
See page 203 for alternates available
Use with
#10, #21
&
#30
Contacts Only
