3-1934768-5

Description

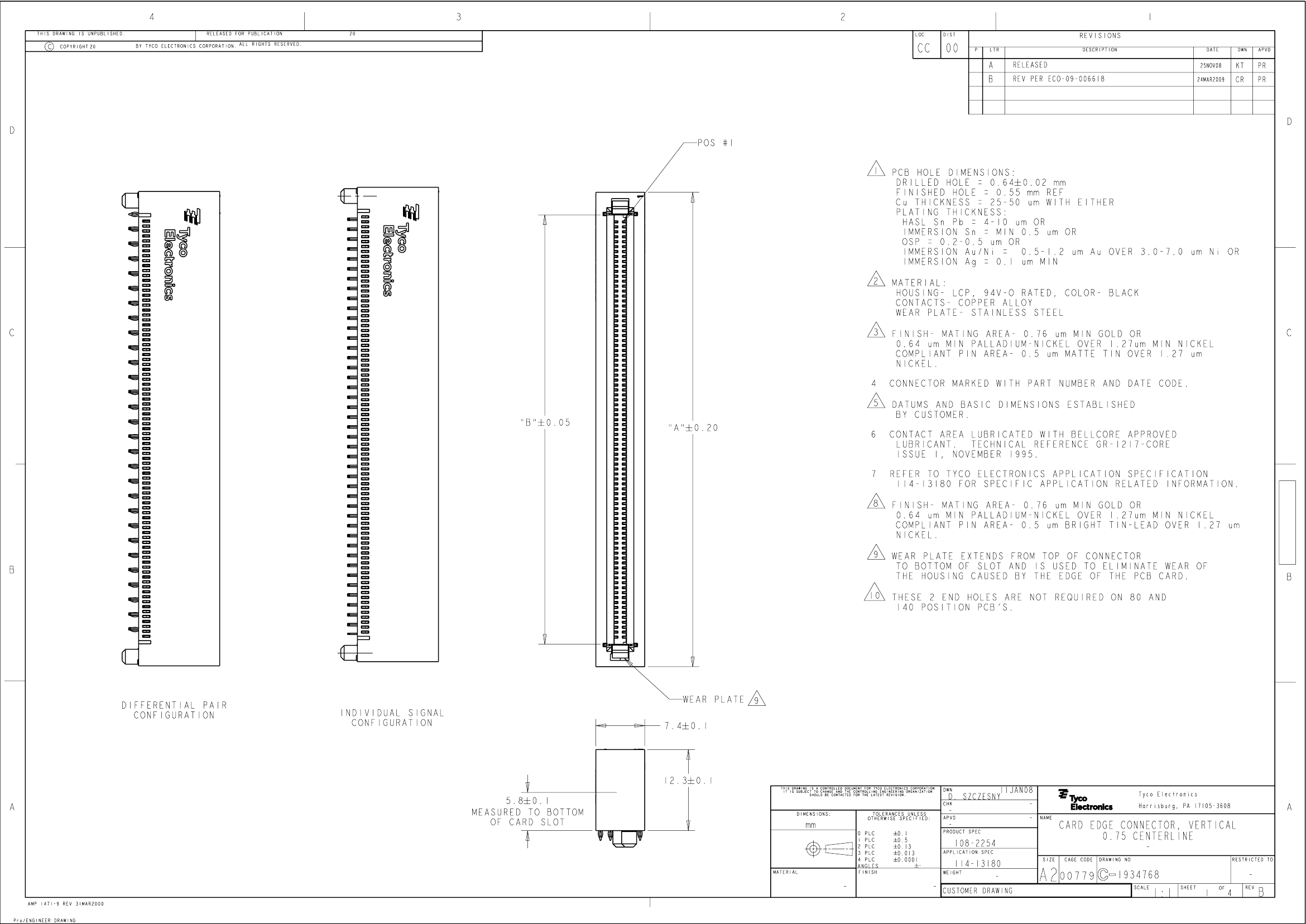

EDGE CONNECTOR,PCB MNT,140 CONTACTS,0.03 PITCH,COMPLIANT FIT TERMINAL,LOCKING
CategoryThe connector    The connector
File Size1007KB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

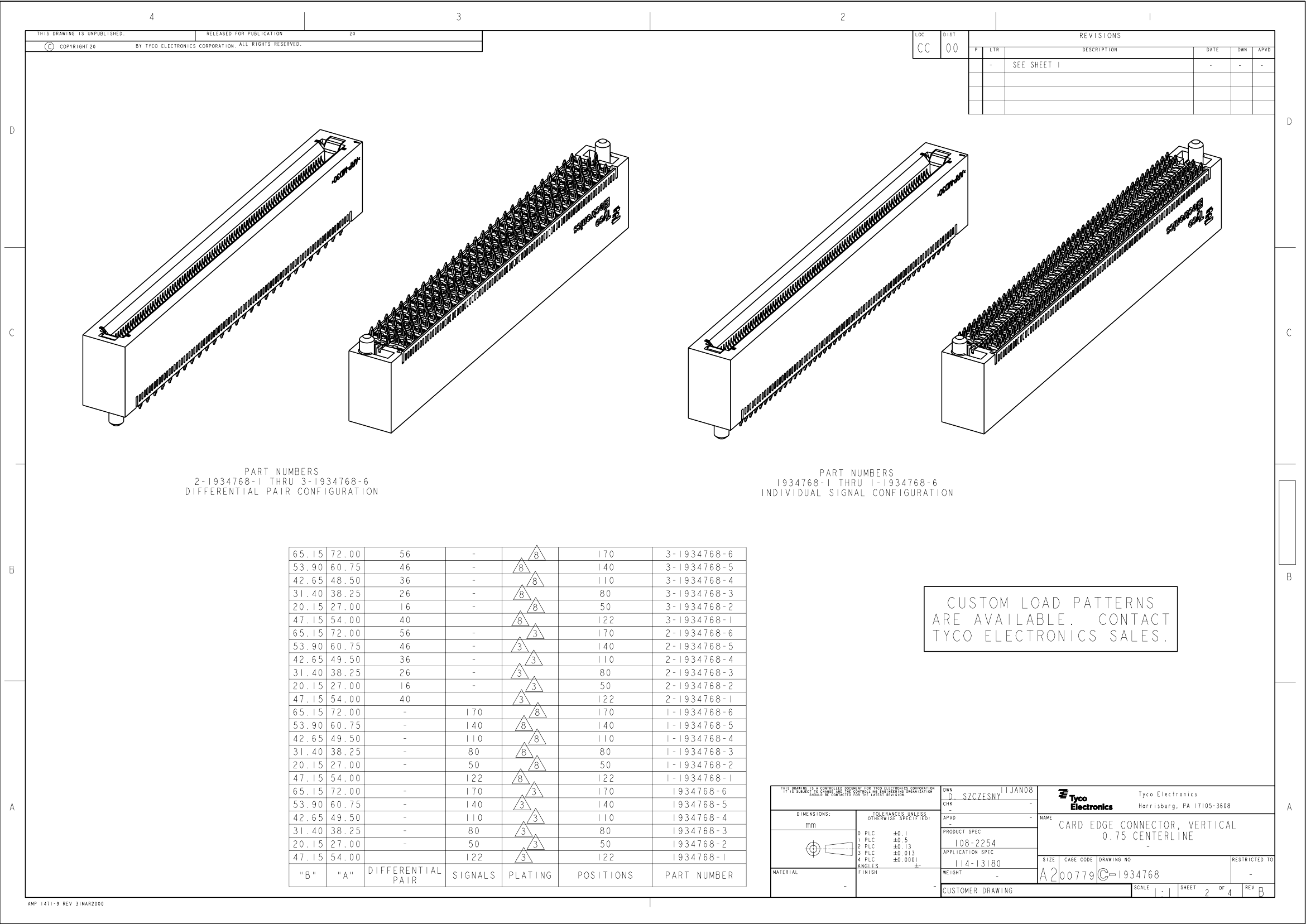

3-1934768-5 Overview

EDGE CONNECTOR,PCB MNT,140 CONTACTS,0.03 PITCH,COMPLIANT FIT TERMINAL,LOCKING

3-1934768-5 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Is SamacsysN

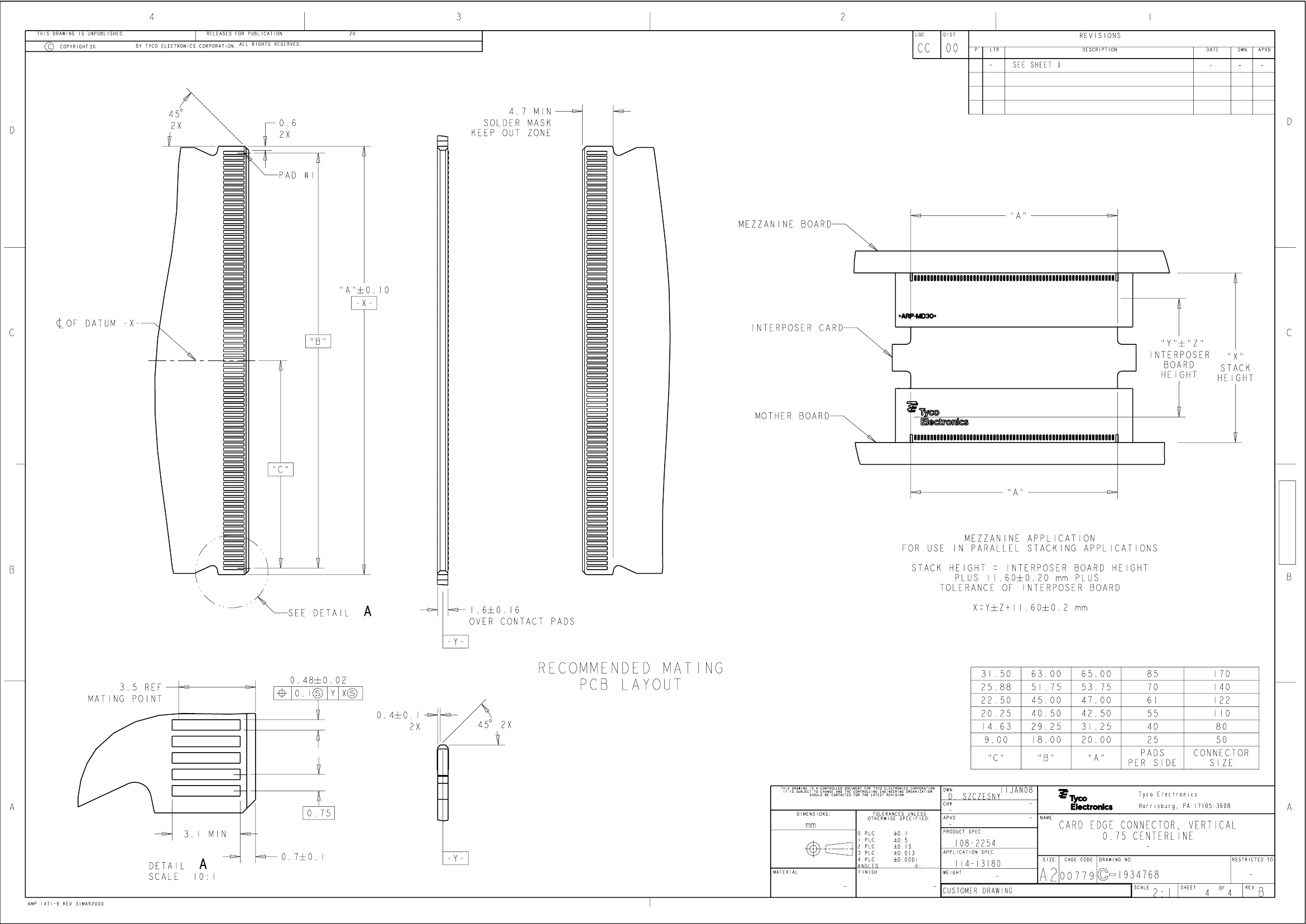

body width0.291 inch
subject depth0.484 inch
body length2.392 inch
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU-PD-NI ON NI
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance60 mΩ
Contact styleBELLOWED TYPE
Insulation resistance10000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number1934768
Plug contact pitch0.03 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C

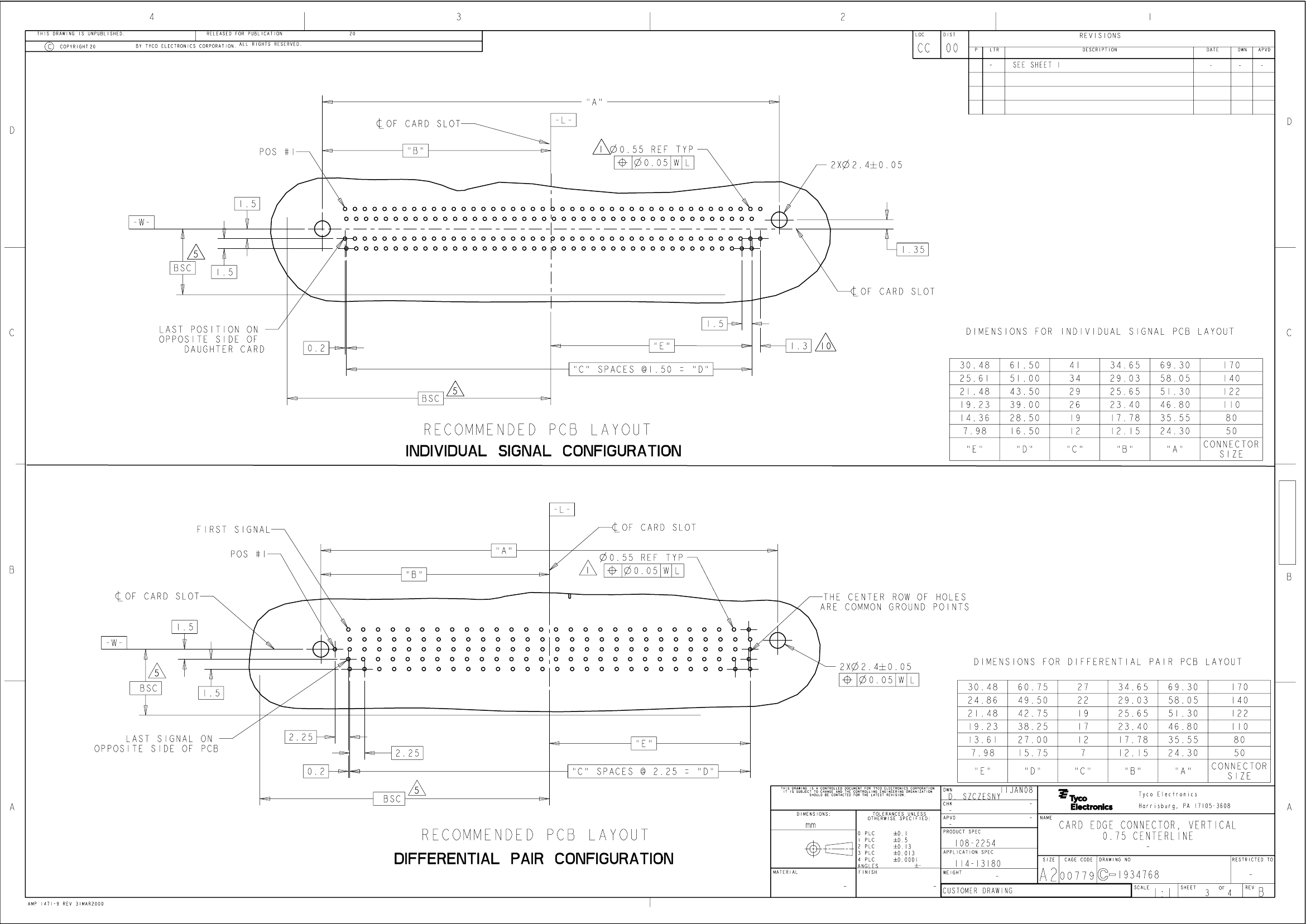

PCB contact row spacing1.4986 mm
Plating thickness30u inch
reliabilityCOMMERCIAL
Terminal pitch1.4986 mm
Termination typePRESS FIT
Total number of contacts140
Base Number Matches1
