JAN1N3612 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> JAN1N3612

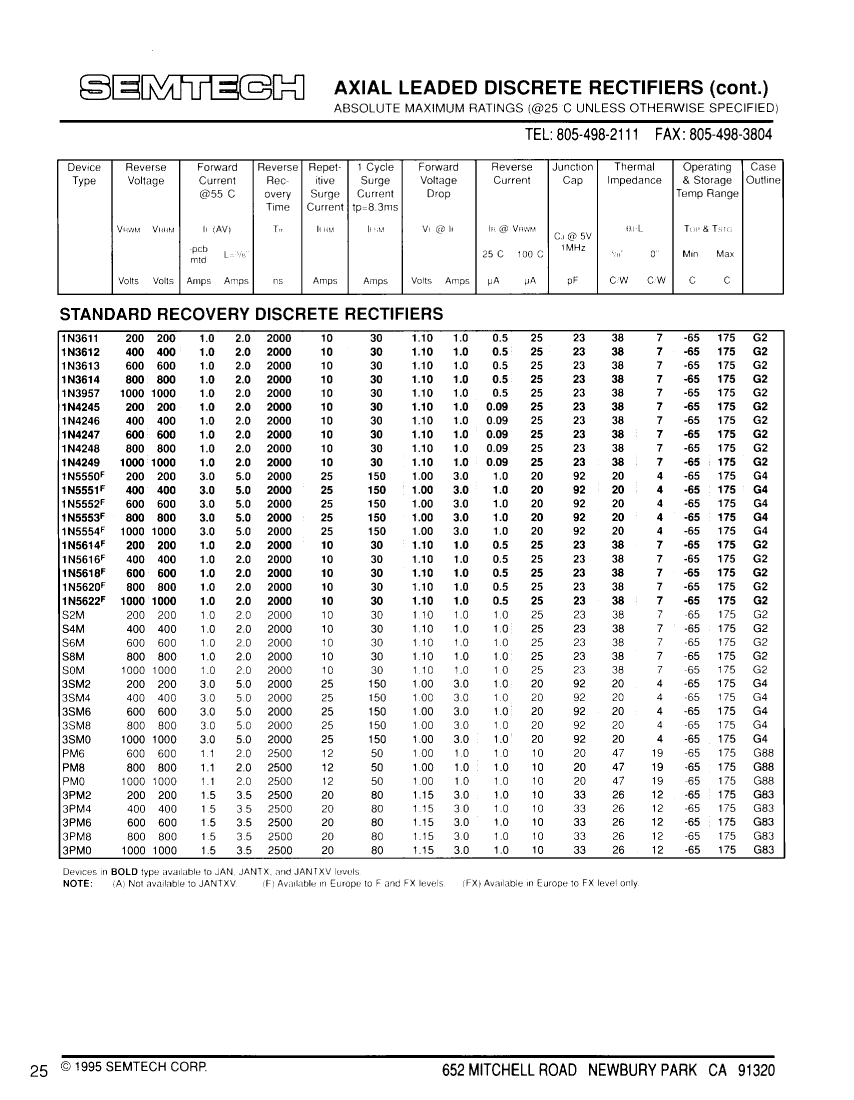

JAN1N3612: DescriptionRectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41, SIMILAR TO DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size57KB，1 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

JAN1N3612 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JAN1N3612	-	-	View	Buy Now

JAN1N3612 Overview

Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41, SIMILAR TO DO-41, 2 PIN

JAN1N3612 Parametric

Parameter Name	Attribute value
Maker	SEMTECH
Parts packaging code	DO-41
package instruction	SIMILAR TO DO-41, 2 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-41
JESD-30 code	O-XALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Qualified
Guideline	MIL-19500/228
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

JAN1N3612 Related Products

	JAN1N3612	JAN1N3957	JAN1N3611	JAN1N3613	JAN1N3614
Description	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-41, SIMILAR TO DO-41, 2 PIN	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, EG1, 2 PIN	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-41, SIMILAR TO DO-41, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, SIMILAR TO DO-41, 2 PIN	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-41, SIMILAR TO DO-41, 2 PIN
Parts packaging code	DO-41	DO-204	DO-41	DO-41	DO-41
package instruction	SIMILAR TO DO-41, 2 PIN	O-PALF-W2	SIMILAR TO DO-41, 2 PIN	SIMILAR TO DO-41, 2 PIN	SIMILAR TO DO-41, 2 PIN
Contacts	2	2	2	2	2
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V
JEDEC-95 code	DO-41	DO-204AL	DO-41	DO-41	DO-41
JESD-30 code	O-XALF-W2	O-PALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Qualified	Qualified	Qualified	Qualified	Qualified
Guideline	MIL-19500/228	MIL-19500/228	MIL-19500/228J	MIL-19500/228	MIL-19500/228
Maximum repetitive peak reverse voltage	400 V	1000 V	200 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	1
Maker	SEMTECH	-	SEMTECH	SEMTECH	SEMTECH
Is Samacsys	N	-	N	N	N
