JANTXV1N3164 datasheet, PDF - EEWORLD Datasheet

JANTXV1N3164: DescriptionRectifier Diode, 1 Phase, 1 Element, 300A, 200V V(RRM), Silicon, DO-205AB, METAL, DO-9, 1 PIN; CategoryDiscrete semiconductor diode; File Size110KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

JANTXV1N3164 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JANTXV1N3164	-	-	View	Buy Now

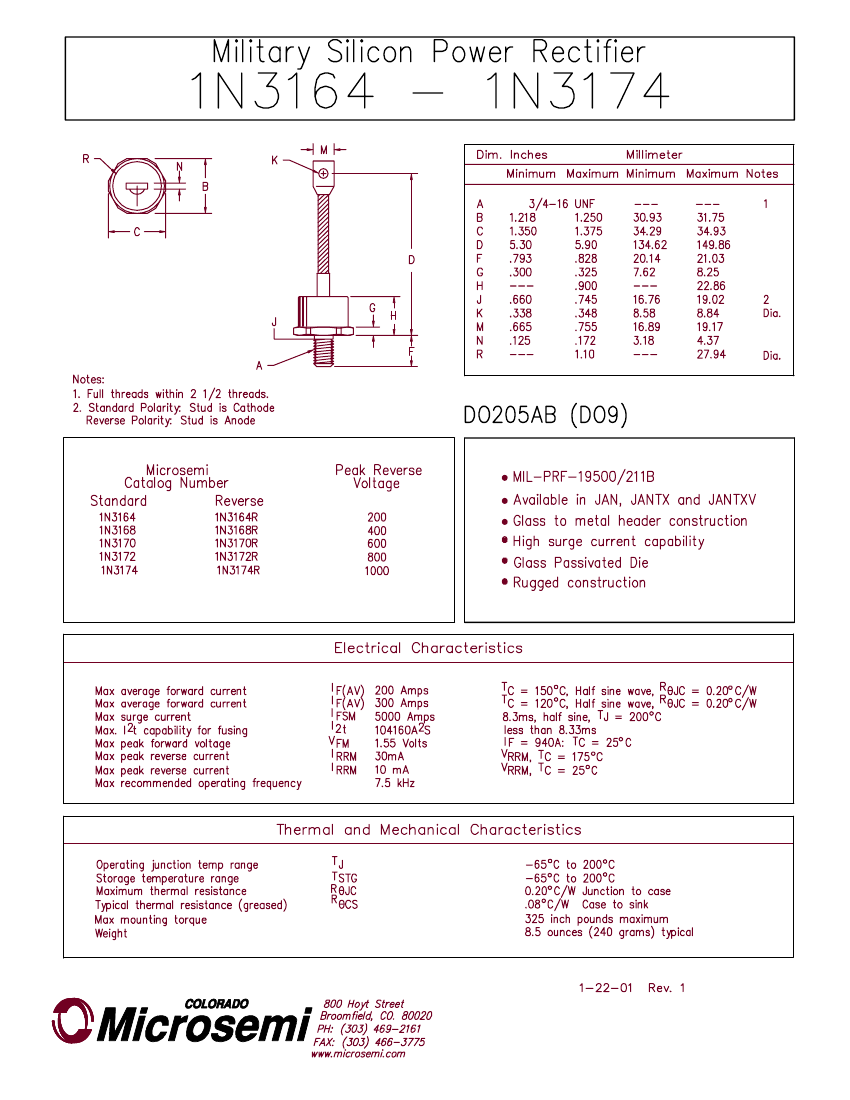

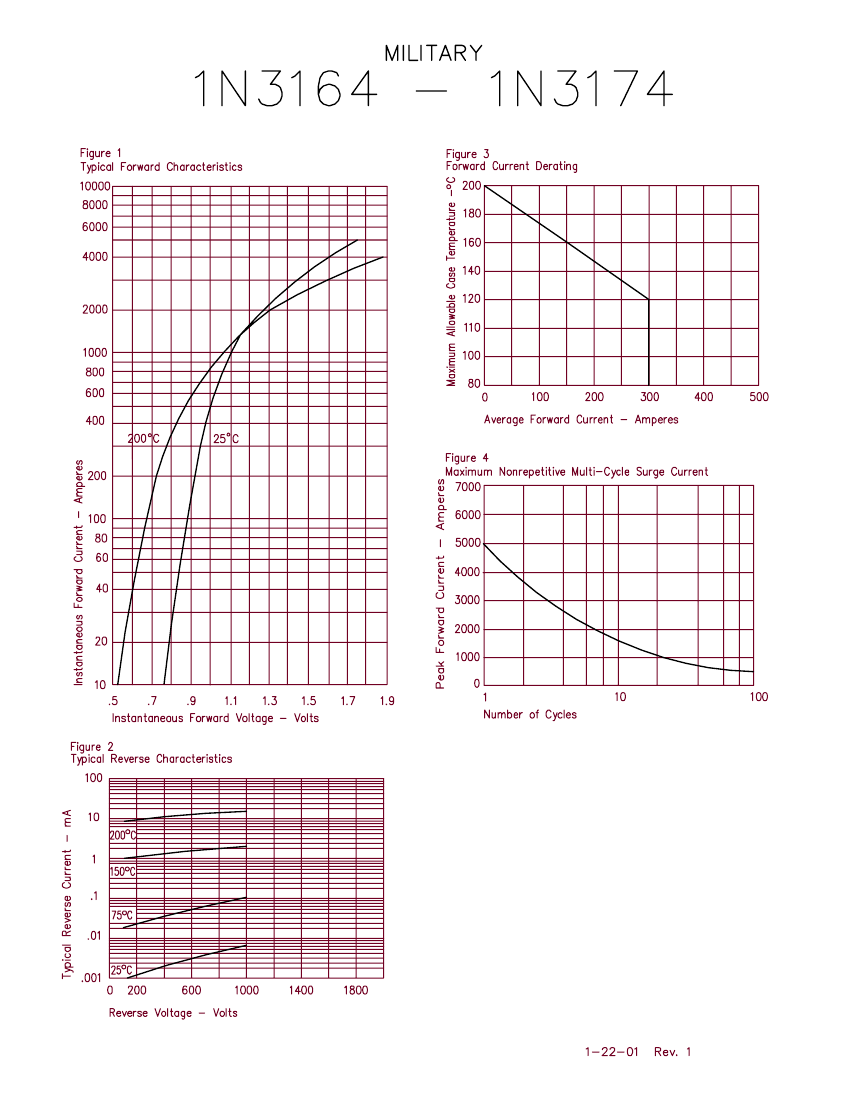

Rectifier Diode, 1 Phase, 1 Element, 300A, 200V V(RRM), Silicon, DO-205AB, METAL, DO-9, 1 PIN

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	DO-9
package instruction	O-MUPM-H1
Contacts	1
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
application	POWER
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-205AB
JESD-30 code	O-MUPM-H1
JESD-609 code	e0
Maximum non-repetitive peak forward current	6250 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Maximum output current	300 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Qualified
Guideline	MIL-19500/211
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	JANTXV1N3164	2225R473Z501C	60PF2220JE40J	JANTXV1N3168	745I2220DQ60K	JANTXV1N3170	76PF2180DQ30H
Description	Rectifier Diode, 1 Phase, 1 Element, 300A, 200V V(RRM), Silicon, DO-205AB, METAL, DO-9, 1 PIN	Ceramic Capacitor, Ceramic, 500V, 80% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.047uF, 2225,	Film Capacitor,	Rectifier Diode, 1 Phase, 1 Element, 300A, 400V V(RRM), Silicon, DO-205AB, METAL, DO-9, 1 PIN	Film Capacitor,	Rectifier Diode, 1 Phase, 1 Element, 300A, 600V V(RRM), Silicon, DO-205AB, METAL, DO-9, 1 PIN	Film Capacitor, Polypropylene, 630V, -200ppm/Cel TC, 0.018uF, 5124
package instruction	O-MUPM-H1	, 2225	,	O-MUPM-H1	,	O-MUPM-H1	,
Reach Compliance Code	compliant	not_compliant	compliant	compliant	compliant	compliant	compliant
Number of terminals	1	2	2	1	2	1	2
Is it lead-free?	Contains lead	-	-	Contains lead	-	Contains lead	Lead free
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	-	incompatible	conform to
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
JESD-609 code	e0	-	e3	e0	-	e0	-
Maximum operating temperature	200 °C	125 °C	105 °C	200 °C	-	200 °C	110 °C
Minimum operating temperature	-65 °C	-55 °C	-55 °C	-65 °C	-	-65 °C	-55 °C
Package form	POST/STUD MOUNT	SMT	Radial	POST/STUD MOUNT	-	POST/STUD MOUNT	Radial
Guideline	MIL-19500/211	-	AEC-Q200	MIL-19500/211	-	MIL-19500/211	AEC-Q200
surface mount	NO	-	NO	NO	-	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin (Sn)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-
Objectid	-	710114735	2066714375	-	8034698747	-	1324579018
YTEOL	-	6.58	7.05	-	7.4	-	7.18
Capacitor type	-	CERAMIC CAPACITOR	FILM CAPACITOR	-	FILM CAPACITOR	-	FILM CAPACITOR
