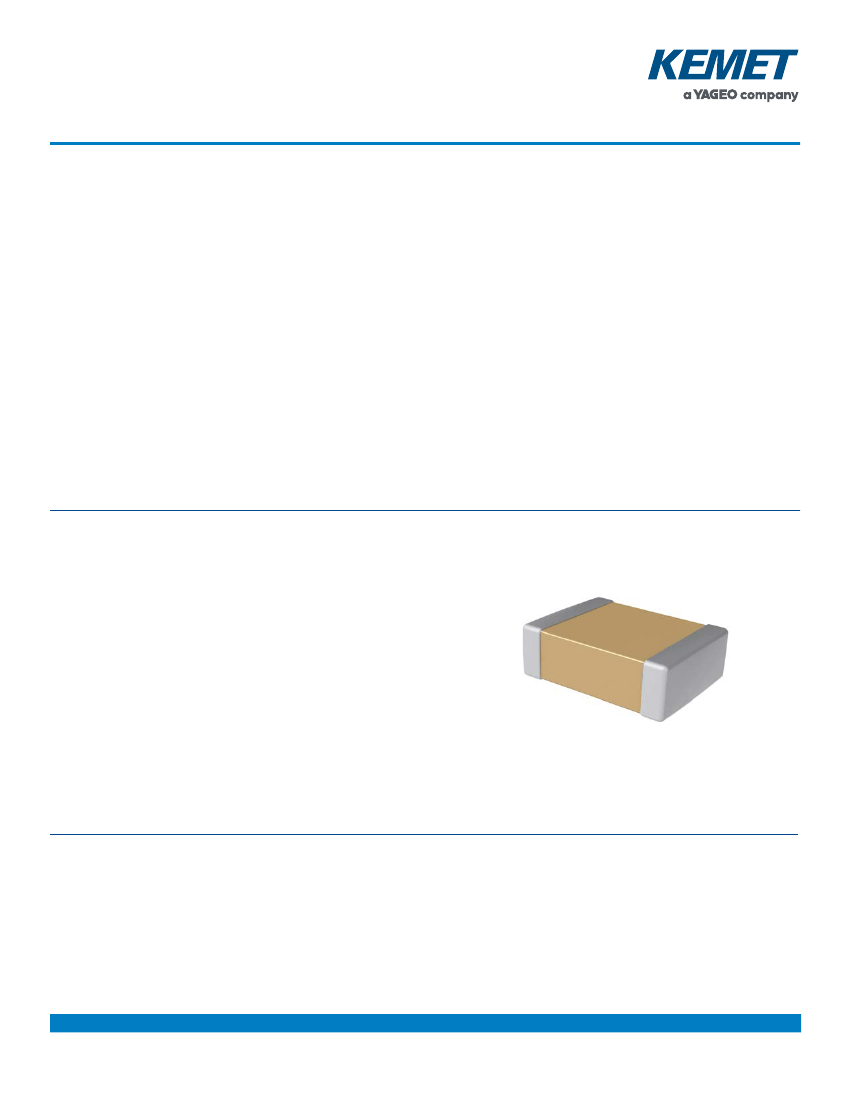

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
U2J Dielectric, 10 – 100 VDC
(Commercial & Automotive Grade)
Overview
KEMET U2J dielectric features a maximum operating
temperature of 125°C and is considered stable. The
Electronics Industries Alliance (EIA) characterizes U2J
dielectric as a Class I material. Components of this
classification are temperature compensating and are
suited for resonant circuit applications or those where Q
and stability of capacitance characteristics are required.
U2J is an extremely stable dielectric material that exhibits
a negligible shift in capacitance with respect to voltage
and boasts a predictable and linear change in capacitance
with reference to ambient temperature with no aging
effect. In addition, U2J dielectric extends the available
capacitance range of Class I MLCCs to achieve values
previously only available using Class II dielectric materials
like X7R, X5R, Y5V and Z5U.
U2J is not sensitive to DC Bias as compared to Class
II dielectric materials and retains over 99% of nominal
capacitance at full rated voltage. KEMET automotive grade
capacitors meet the demanding Automotive Electronics
Council's AEC–Q200 qualification requirements.
Capacitance change is limited to −750 ±120 ppm/°C from
−55°C to +125°C. These devices are lead (Pb)-free, RoHS
and REACH compliant without exception and are capable
of withstanding multiple passes through a lead (Pb)-free
solder reflow profile.
Benefits
• AEC–Q200 automotive qualified
• Up to 10x increase in capacitance versus C0G
• Extremely low effective series resistance (ESR)
• Extremely low effective series inductance (ESL)
• High ripple current capability
• Low noise solution similar to C0G
• Retains over 99% of nominal capacitance at full rated voltage
• Small predictable and linear capacitance change with respect
to temperature
• Operating temperature range of −55°C to +125°C
• Capacitance up to 470 nF
• DC voltage ratings up to 100 V
Applications
• Wireless charging
• Resonant LLC converters
• Power conversion
• Pulse circuits
•
•
•
•
High ripple current
Critical timing
Decoupling
Transient voltage suppression
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1086_U2J • 05/24/19
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
U2J Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Ordering Information
C
Ceramic
1206
C
104
Capacitance
Code (pF)
Two significant
digits and
number of
zeros.
J
3
J
A
C
TU
Packaging/
Grade (C-Spec)
See
"Packaging
C-Spec
Ordering
Options Table"
Case Size Specification/
(L" x W")
Series
1
0402
0603
0805
1206
1210
1812
C=
Standard
Capacitance
Rated Voltage
Failure Rate/
Dielectric
Termination Finish
3
2
Tolerance
(VDC)
Design
F = ±1%
G = ±2%
J = ±5%
K = ±10%
M = ±20%
8 = 10
4 = 16
3 = 25
5 = 50
1 = 100
J = U2J
A = N/A
C = 100% Matte Sn
1
2
Flexible termination option is available. Please see FT-CAP product bulletin C1087_U2J_FT-CAP_SMD.
Additional capacitance tolerance offerings may be available. Contact KEMET for details.
Packaging C-Spec Ordering Options Table
Packaging Type
1
Bulk Bag/Unmarked
7" Reel/Unmarked
13" Reel/Unmarked
7" Reel/Unmarked/2 mm pitch
2
13" Reel/Unmarked/2 mm pitch
2
7" Reel
13" Reel/Unmarked
7" Reel/Unmarked/2 mm pitch
2
13" Reel/Unmarked/2 mm pitch
2
1
1
Packaging/Grade
Ordering Code (C-Spec)
Commercial Grade
1
Not required (blank)
TU
7411 (EIA 0603 and smaller case sizes)
7210 (EIA 0805 and larger case sizes)
7081
7082
3
Automotive Grade
AUTO
AUTO7411 (EIA 0603 and smaller case sizes)
AUTO7210 (EIA 0805 and larger case sizes)
3190
3191
Default packaging is "Bulk Bag". An ordering code C-Spec is not required for "Bulk Bag" packaging.
The terms "Marked" and "Unmarked" pertain to laser marking option of capacitors. All packaging options labeled as "Unmarked" will contain capacitors
that have not been laser marked. The option to laser mark is not available on these devices. For more information see "Capacitor Marking."
2
The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case
size devices. For more information regarding 2 mm pitch option see "Tape & Reel Packaging Information."
3
Reeling tape options (paper or plastic) are dependent on capacitor case size (l" x w") and thickness dimensions. See "Chip Thickness/Tape & Reel
Packaging Quantities" and "Tape & Reel Packaging Information."
3
For additional information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information."
3
All automotive packaging C-Specs listed exclude the option to laser mark components. The option to laser mark is not available on these devices.
For more information see "Capacitor Marking."
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1086_U2J • 05/24/19
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
U2J Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Qualification/Certification
Commercial grade products are subject to internal qualification. Details regarding test methods and conditions are
referenced in Table 4, Performance & Reliability.
Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details
regarding test methods and conditions are referenced in the document AEC–Q200, Stress Test Qualification for Passive
Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their
website at www.aecouncil.com.
Environmental Compliance
Lead (Pb)-free, RoHS, and REACH compliant without exemptions.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1086_U2J • 05/24/19
3
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
U2J Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Automotive C-Spec Information
KEMET automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council.
Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive
Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process
warrant (PPAP).
Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “AUTO.”
This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade
component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a
KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET OEM automotive customers and are
not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited
(see details below.)
Product Change Notification (PCN)
The KEMET product change notification system is used to communicate primarily the following types of changes:
• Product/process changes that affect product form, fit, function, and/or reliability
• Changes in manufacturing site
• Product obsolescence
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
Customer Notification Due To:
Process/Product change
Yes (with approval and sign off)
Yes (without approval)
Obsolescence*
Yes
Yes
Days Prior To
Implementation
180 days minimum
90 days minimum
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
Production Part Approval Process (PPAP)
The purpose of the Production Part Approval Process is:
• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.
• To provide the evidence that all customer engineering design records and specification requirements are properly
understood and fulfilled by the manufacturing organization.
• To demonstrate that the established manufacturing process has the potential to produce the part.
KEMET Automotive
C-Spec
KEMET assigned
1
AUTO
1
PPAP (Product Part Approval Process) Level
1
●
2
●
3
●
○
4
●
5
●
KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.
● Part number specifi
c PPAP available
○ Product family PPAP only
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1086_U2J • 05/24/19
4
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
U2J Dielectric, 10 – 100 VDC (Commercial & Automotive Grade)
Dimensions – Millimeters (Inches)
W
L
T
B
S
EIA Metric
Size
Size
Code Code
0402
0603
0805
1206
1210
1812
1005
1608
2012
3216
3225
4532
L
Length
W
Width
T
Thickness
B
Bandwidth
0.30 (0.012) ± 0.10 (0.004)
0.35 (0.014) ± 0.15 (0.006)
S
Mounting
Separation
Technique
Minimum
0.30 (0.012)
0.70 (0.028)
0.75 (0.030)
Solder reflow
only
Solder wave
or
Solder reflow
1.00 (0.040) ± 0.05 (0.002) 0.50 (0.020) ± 0.05 (0.002)
1.60 (0.063) ± 0.15 (0.006) 0.80 (0.032) ± 0.15 (0.006)
2.00 (0.079) ± 0.20 (0.008) 1.25 (0.049) ± 0.20 (0.008)
3.20 (0.126) ± 0.20 (0.008) 1.60 (0.063) ± 0.20 (0.008)
3.20 (0.126) ± 0.20 (0.008) 2.50 (0.098) ± 0.20 (0.008)
4.50 (0.177) ± 0.30 (0.012) 3.20 (0.126) ± 0.30 (0.012)
See Table 2
for thickness
0.50 (0.02) ± 0.25 (0.010)
0.50 (0.02) ± 0.25 (0.010)
0.50 (0.02) ± 0.25 (0.010)
0.60 (0.024) ± 0.35 (0.014)
N/A
Solder reflow
only
Electrical Parameters/Characteristics
Item
Operating Temperature Range
Capacitance Change with Reference to +25°C and 0 VDC Applied
(TCC)
Aging Rate (Maximum % Capacitance Loss/Decade Hour)
Dielectric Withstanding Voltage (DWV)
Dissipation Factor (DF) Maximum Limit at 25°C
Insulation Resistance (IR) Limit at 25°C
−55°C to +125°C
−750 ±120 ppm/°C
0.1%
250% of rated voltage
(5 ±1 seconds and charge/discharge not exceeding 50 mA)
0.1%
1,000 MΩ µF or 100 GΩ
(Rated voltage applied for 120 ±5 seconds at 25°C)
Parameters/Characteristics
To
obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and dissipation factor (DF) measured under the following conditions:
1 MHz ±100 kHz and 1.0 ±0.2 V
rms
if capacitance ≤ 1,000 pF
1 kHz ±50 Hz and 1.0 ±0.2 V
rms
if capacitance > 1,000 pF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known
as Automatic Level Control (ALC). The ALC feature should be switched to "ON."
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1086_U2J • 05/24/19
5
