317-13-121-41-005000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 317-13-121-41-005000

317-13-121-41-005000: DescriptionIC Socket,; CategoryThe connector socket; File Size80KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

317-13-121-41-005000 Overview

IC Socket,

317-13-121-41-005000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Device slot type	IC SOCKET
Base Number Matches	1

Preview

Download Datasheet

View All

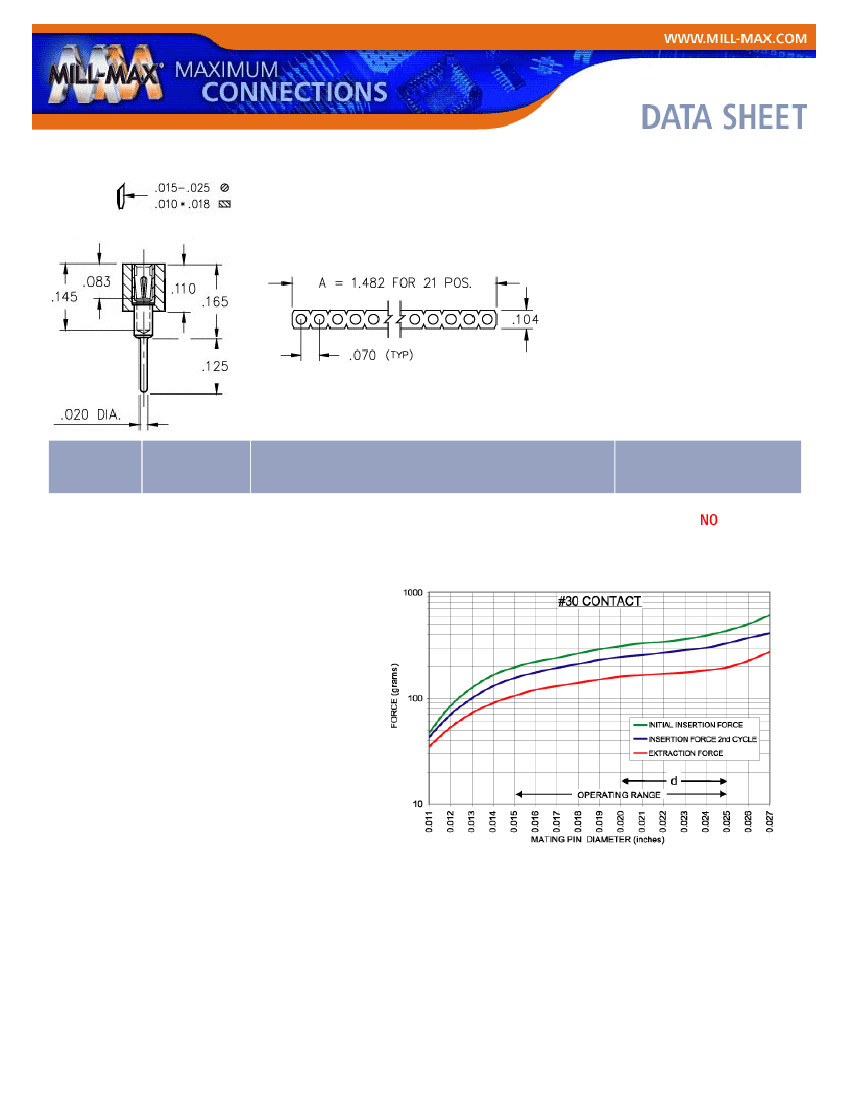

Product Number: 317-13-121-41-005000

Description:

Interconnect Socket

.070 Grid; Straight Socket

Solder Tail

Through Hole

Accepts .015-.025" Leads

Plating Code:

Shell Plating:

10 " Gold over 100 " Nickel

Inner Contact Plating:

30 " Gold over 50 " Nickel

Pins

Mill-Max

Part

Number

317-13-121-41-005000

RoHS

Compliant

1.482

CONTACT:

Contact Used: #30, Standard 4 Finger Contact

Current Rating =

3 Amps

BERYLLIUM COPPER ALLOY

172 (UNS C17200) per

ASTM B 194

Properties of BERYLLIUM COPPER:

Chemical composition: Cu 98.1%, Be 1.9%

Temper as stamped: TD01

Properties after heat treatment (TH01):

Hardness: 36-43 Rockwell C

Mechanical Life: 100 Cycles Min.

Density: .298 lbs/in3

Electrical Conductivity: 22% IACS*

Resistance: 10 miliohms Max

Operating Temperature: -55°C/+125°C

Melting point: 980°C/865°C (liquidus/solidus)

Stress Relaxation†: 96% of stress remains after 1,000 hours @ 100 ºC ; 70% of stress remains after 1,000 hours @ 200

ºC

*International Annealed Copper Standard, i.e. as a % of pure copper.

†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For

applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.

Mill-Max Mfg. Corp. Datasheet – Last Modified 6/24/2008

Page 1 of 2
