Extract from the online
catalog
MSTBP 2,5/ 9-ST
Order No.: 1765849

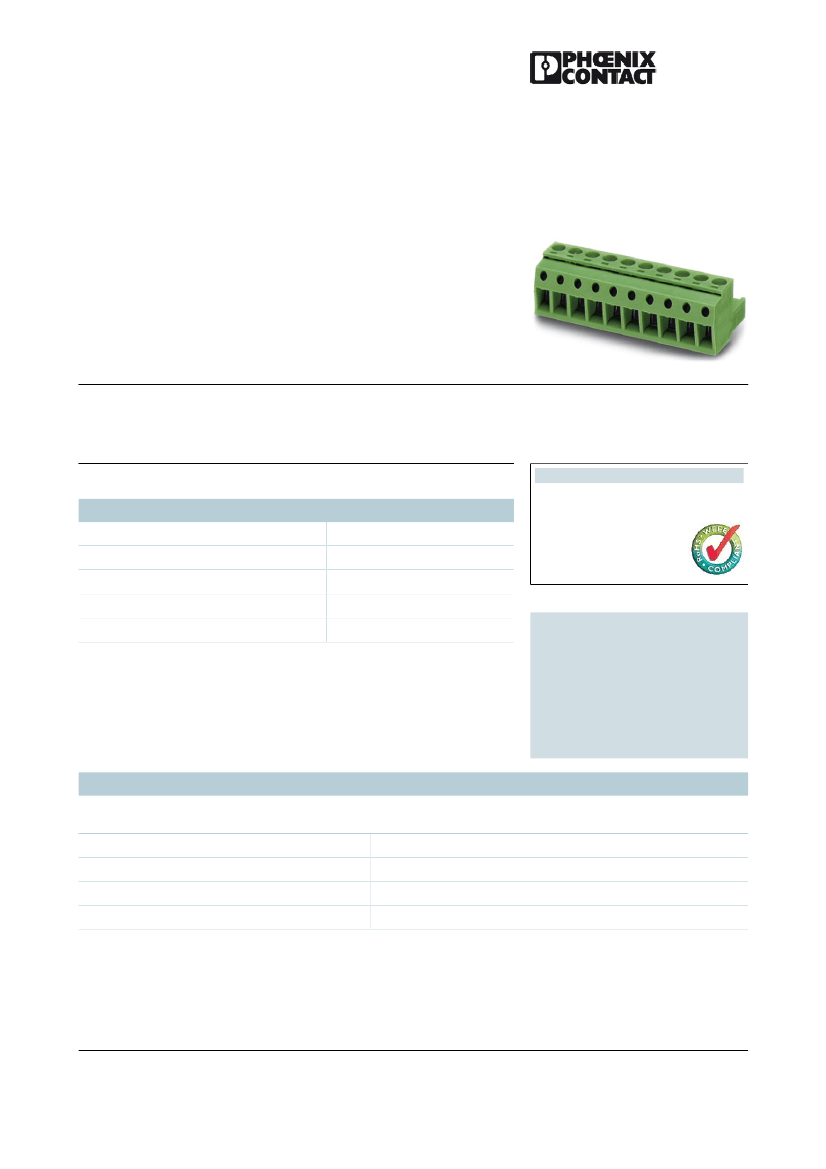

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765849
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch:
5 mm, Number of positions: 9, Connection type: Screw connection,
Color: green
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918031879
50 pcs.
85366990
0.01812 KG
Page 199 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data

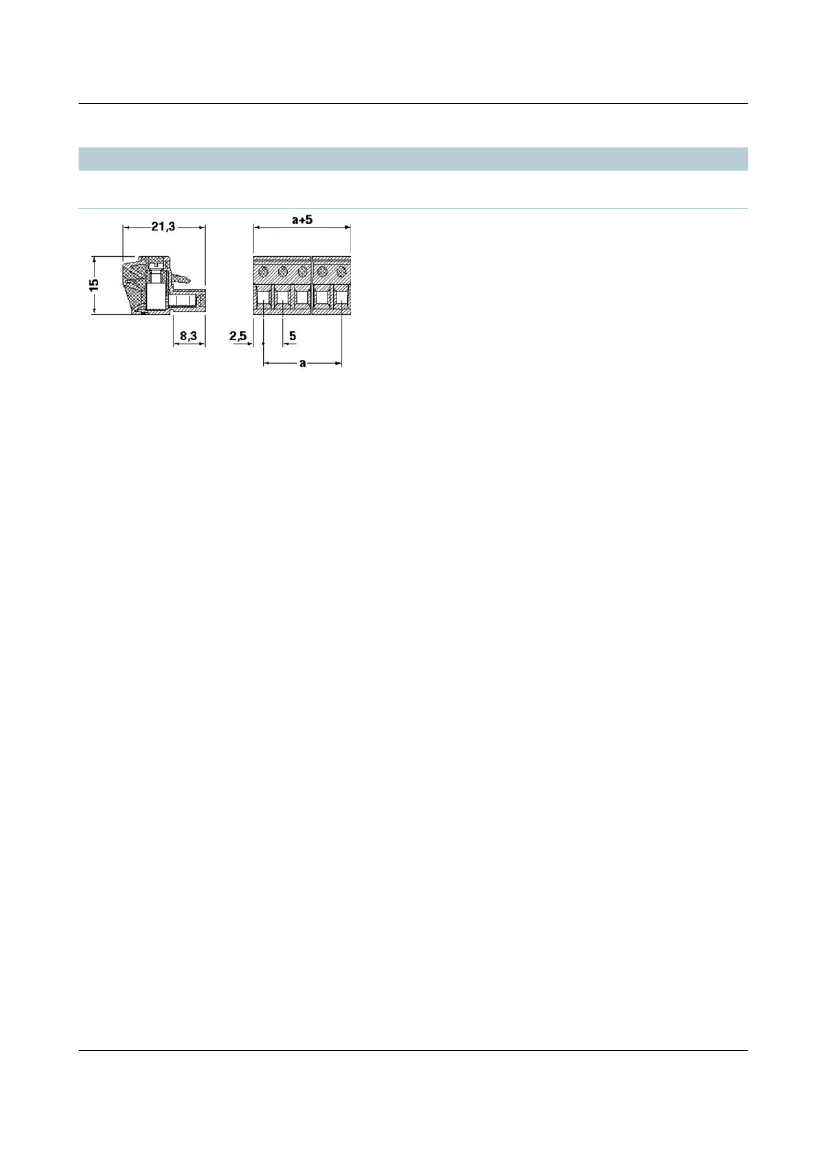

Dimensions / positions
Pitch
Dimension a
Number of positions
Screw thread
5 mm
40 mm
9
M3
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Feb 17, 2010
MSTBP 2,5/ 9-ST
Order No.: 1765849
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765849
Tightening torque, min
Tightening torque max
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
0.5 Nm
0.6 Nm
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
12 A
250 V
2.5 mm²
12 A (with 2.5 mm conductor cross section)
PA
V0
A3
7 mm
2
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Feb 17, 2010
MSTBP 2,5/ 9-ST
Order No.: 1765849
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765849
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1.5 mm²
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Plug/Adapter
0201702
MPS-IH GN
Designation
CB, CSA, CUL, GOST, UL, VDE-PZI
300 V
10 A
28-12
300 V
10 A
30-12
300 V
10 A
30-12
Description
Insulating sleeve, for MPS metal part, Color: green
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Feb 17, 2010
MSTBP 2,5/ 9-ST
Order No.: 1765849
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1765849
0201676
0201715
0201744
0201647
MPS-IH RD
MPS-IH VT
MPS-MT
RPS
Insulating sleeve, Color: red
Insulating sleeve, for MPS metal part, Color: violet
Metal part
Reducing plug, Color: gray
Additional products
Item
General
0707167
DFK-MSTB 2,5/ 9-G
Plug component, Nominal current: 12 A, Nom. voltage: 320 V,
Nom. voltage: 320 V, Pitch: 5 mm, Number of positions: 9, Color:
green, Assembly: Direct mounting
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Assembly: Press-in
Header, Nominal current: 12 A, Nom. voltage: 200 V, Pitch: 5 mm,
Number of positions: 9, Assembly: Press-in
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Assembly: Soldering
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 10 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 9, Color: green, Assembly: Soldering
Designation
Description
1899919
1914920
1762761
1846580
1762910
1845853
1754575
1768257
1757530
1770559
1753576
1755587
1736043
1769308
1769874
EMSTBA 2,5/ 9-G
EMSTBVA 2,5/ 9-G
MDSTB 2,5/ 9-G1
MDSTBA 2,5/ 9-G
MDSTBV 2,5/ 9-G1
MDSTBVA 2,5/ 9-G
MSTB 2,5/ 9-G
MSTB 2,5/ 9-G-LA
MSTBA 2,5/ 9-G
MSTBA 2,5/ 9-G-LA
MSTBV 2,5/ 9-G
MSTBVA 2,5/ 9-G
MSTBW 2,5/ 9-G
SMSTB 2,5/ 9-G
SMSTBA 2,5/ 9-G
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Feb 17, 2010
