142-0801-811: DescriptionRF SMA Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size434KB，1 Pages; ManufacturerBel; Websitehttp://www.belfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

142-0801-811 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	142-0801-811	-	-	View	Buy Now

RF SMA Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.312 inch
subject depth	0.499 inch
body length	0.375 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Contact resistance	4 mΩ
Contact style	COAX
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Manufacturer's serial number	142
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.187 inch
Termination type	SURFACE MOUNT
Total number of contacts	1
Base Number Matches	1

U

N

C

O

N

TR

O

LL

ED

C

O

PY

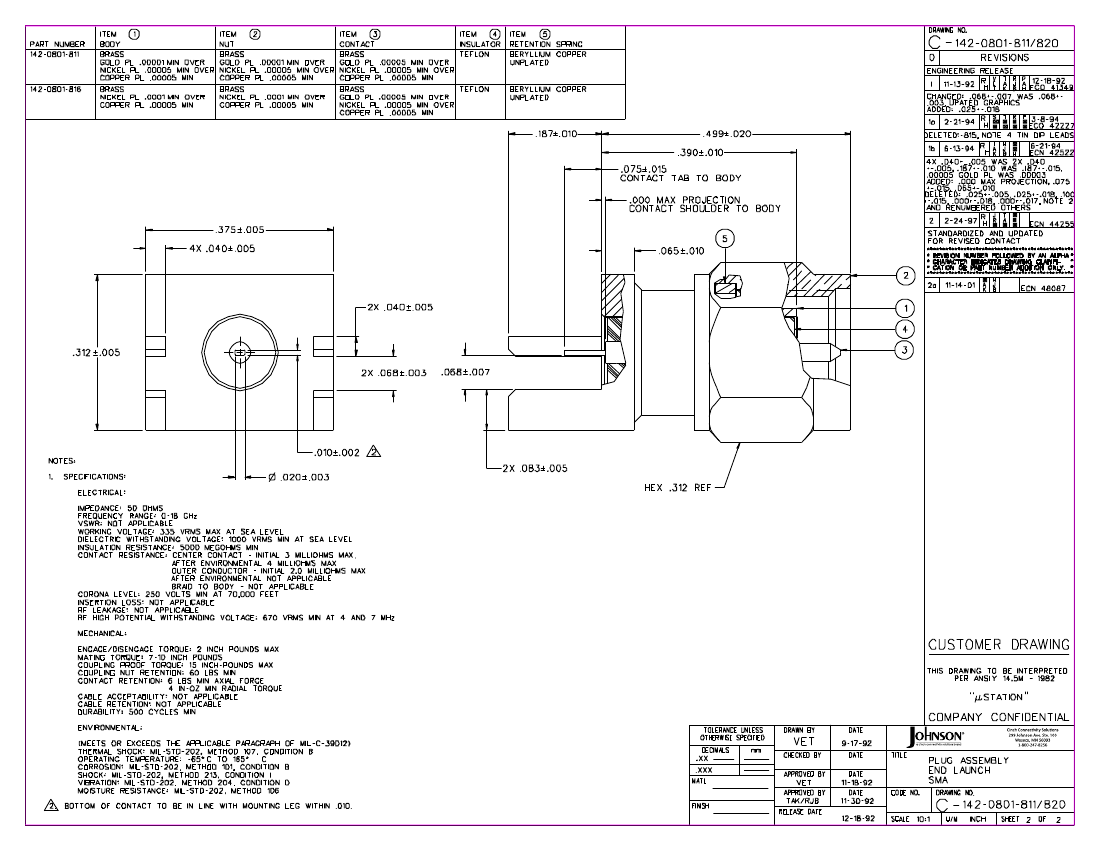

	142-0801-811
Description	RF SMA Connector, 1 Contact(s), Male, Board Mount, Surface Mount Terminal, Locking, Plug
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.312 inch
subject depth	0.499 inch
body length	0.375 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	MALE
Contact resistance	4 mΩ
Contact style	COAX
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	TEFLON
Manufacturer's serial number	142
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.187 inch
Termination type	SURFACE MOUNT
Total number of contacts	1
Base Number Matches	1
