0603 Package Chip LED (0.6 mm Height)
19-213/GHC-XS1T1N/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․RoHS
refer to SMD B type SGS report
Descriptions
․The
19-213 SMD Taping is much smaller than
lead frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
香港至恩科技有限公司
½½．½½－½½½½½．½½½
½
公司授权代理销售ＬＩＴＥ－ＯＮ：光耦，贴片ＬＥＤ灯等
进口原装，现货供应，价格优势，技术支持
电话：０７５５－８３４６４９４８ 传真：０７５５－８３４６４０７６
Applications
․Automotive:
backlighting in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
19-213/GHC-AS1T1N/3T
Chip
Material
InGaN
Emitted Color
Brilliant Green
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device No:SZDSE-193-G18
http://www.everlight.com
Prepared date: 27-May-2005
Rev. 1
Page: 1 of 10
Prepared by: Denghuadong
A ll data sheet.com
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/GHC-XS1T1N/3T

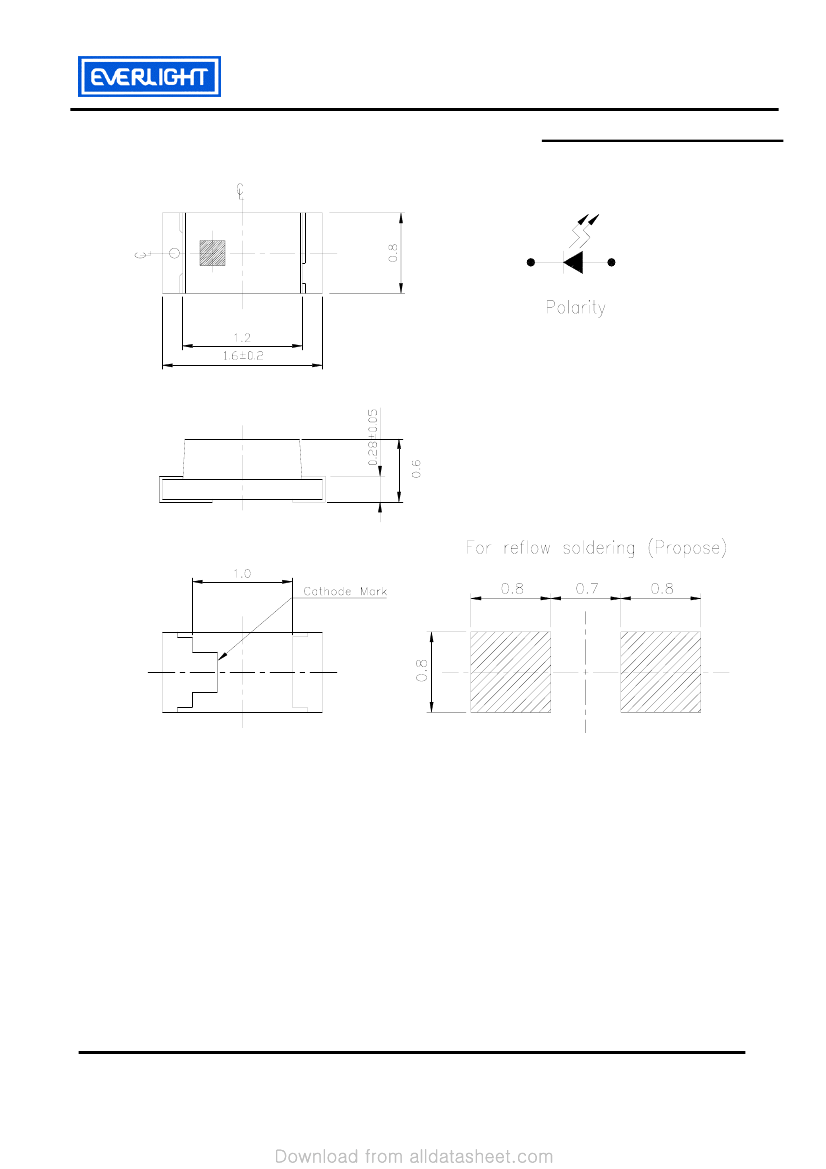

Package Outline Dimensions
-
+
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No:SZDSE-193-G18
http://www.everlight.com
Prepared date: 27-May-2005
Rev. 1
Page: 2 of 10
Prepared by: Denghuadong
A ll data sheet.com
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/GHC-XS1T1N/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge
Power Dissipation
Peak Forward Current
(Duty 1/10 @1KHz)
Soldering Temperature
Symbol
V
R
I
F
Topr
Tstg
ESD
P
d
I
FP
Rating
5
25
-40 ~ +85
-40~ +90
150
110
100
Reflow Soldering:260
℃
for 10 sec
Hand Soldering:350℃ for 3 sec
Unit
V
mA
℃
℃
V
mW
mA
Tsol
℃
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
I
V
2θ1/2
λ
p
λ
d
△λ
V
F
I
R
Min.
180
-----
-----
515
-----
2.70
-----
Typ.
----
120
518
-----
35
-----
-----
Max.
360
-----
-----
530
-----
3.70
50
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
I
F
=20mA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No:SZDSE-193-G18
http://www.everlight.com
Prepared date: 27-May-2005
Rev. 1
Page: 3 of 10
Prepared by: Denghuadong
A ll data sheet.com
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/GHC-XS1T1N/3T
Bin Range Of Dom. Wavelength
Group
Bin
W
Min
515
520
525
Max
520
525
530
nm
I
F
=20mA
Unit
Condition
X
X
Y
Bin Range Of Luminous Intensity
Bin
S1
S2
T1
Min
180
225
285
Max
225
285
360
mcd
I
F
=20mA
Unit
Condition
Bin Range Of Forward Voltage
Group
Bin
10
11
Min
2.70
2.90
3.10
3.30
3.50
Max
2.90
3.10
3.30
3.50
3.70
V
I
F
=20mA
Unit
Condition
N
12
13
14
Notes:
1.Tolerance of Luminous Intensity
±10%
2.Tolerance of Dominant Wavelength
±1nm
3.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No:SZDSE-193-G18
http://www.everlight.com
Prepared date: 27-May-2005
Rev. 1
Page: 4 of 10
Prepared by: Denghuadong
A ll data sheet.com
EVERLIGHT ELECTRONICS CO.,LTD.
19-213/GHC-XS1T1N/3T

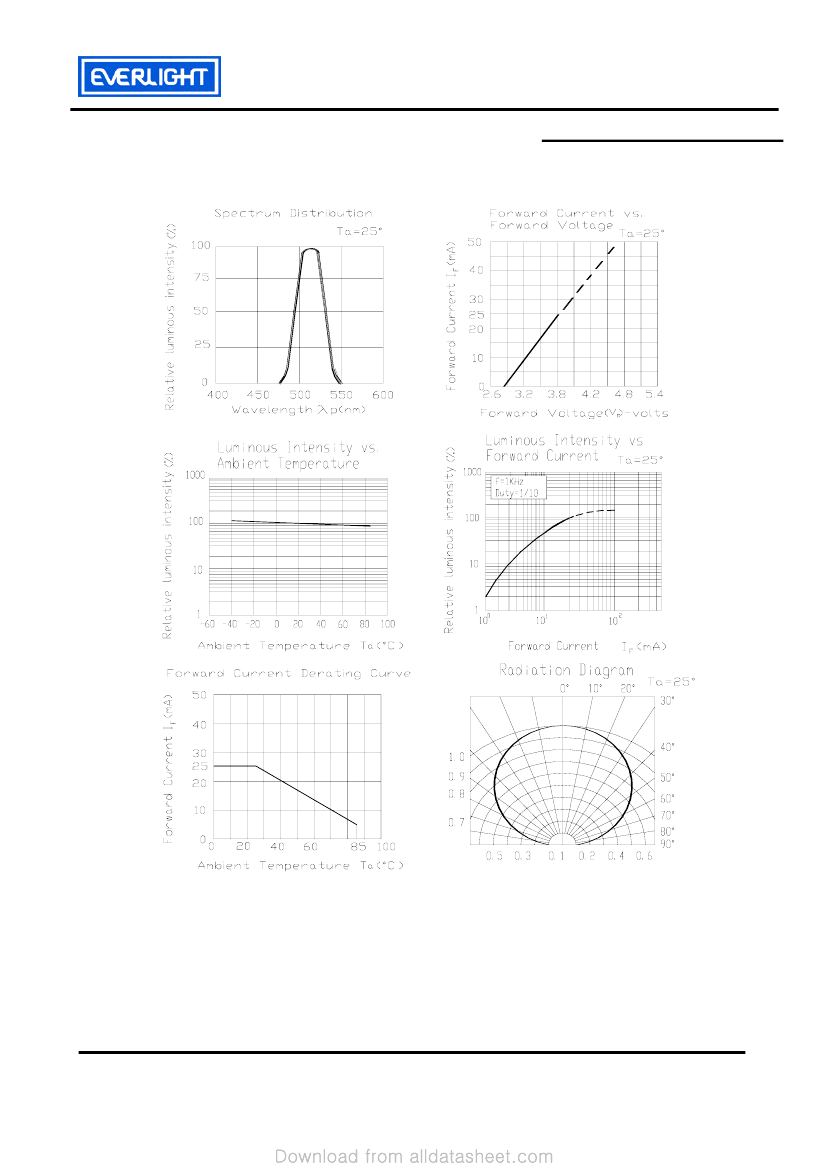

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No:SZDSE-193-G18
http://www.everlight.com
Prepared date: 27-May-2005
Rev. 1
Page: 5 of 10
Prepared by: Denghuadong
