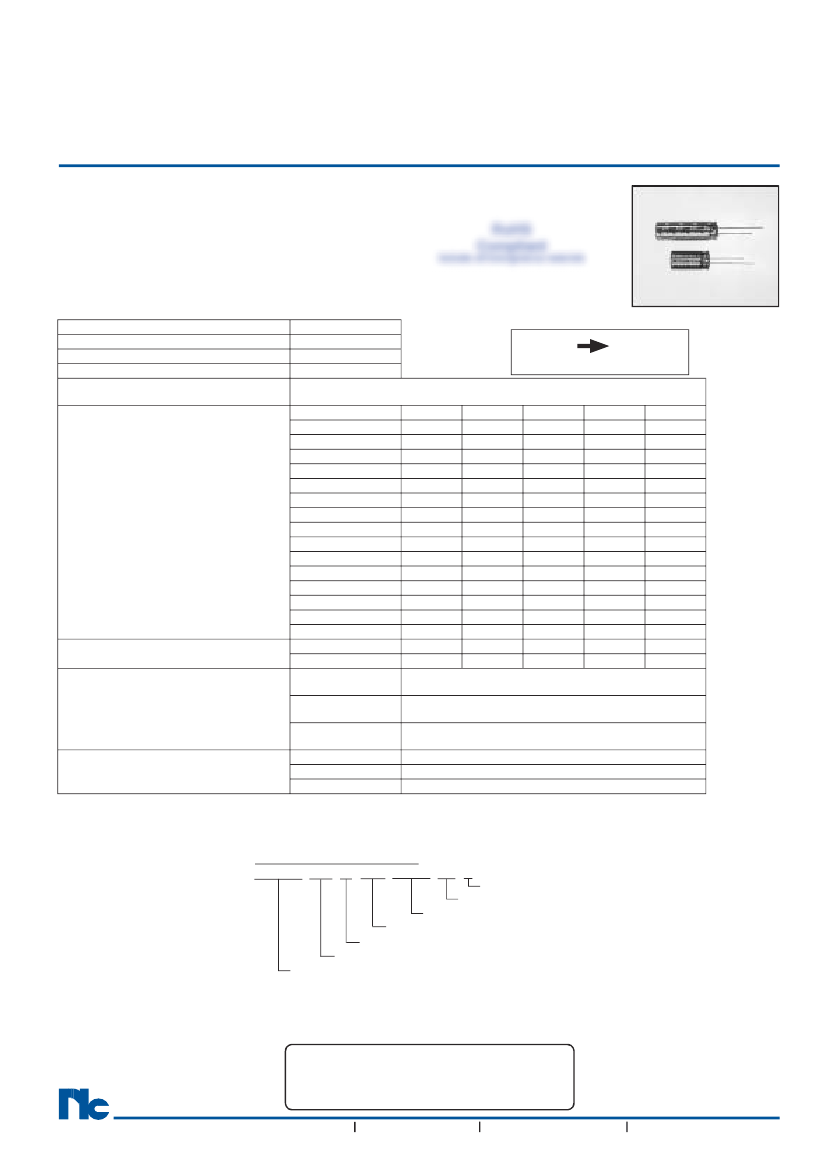

Miniature Aluminum Electrolytic Capacitors

VERY LOW IMPEDANCE(LOWER THAN NRSZ) AT HIGH FREQUENCY

RADIAL LEADS, POLARIZED ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

• VERY LOW IMPEDANCE

• LONG LIFE AT 105°C (2000 ~ 7000 hrs.)

• HIGH STABILITY AT LOW TEMPERATURE

• IDEALLY FOR SWITCHING POWER SUPPLIES

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Max. Leakage Current @ 20°C

after 2 min.

6.3 ~ 35VDC

47 ~ 18,000µF

-55 ~ +105°C

±20% (M)

0.01CV

W.V. (VDC)

S.V. (VDC)

C < 1,000µF

C = 1,800µF

C = 2,200µF

C = 2,700µF

C = 3,300µF

C = 3,900µF

C = 4,700µF

C = 5,600µF

C = 6,800µF

C = 8,200µF

C = 10,000µF

C = 12,000µF

C = 15,000µF

C = 18,000µF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Tanδ

Leakage Current

Capacitance Change

Tanδ

Leakage Current

6.3

0.22

0.24

0.26

0.28

0.30

0.32

0.36

0.40

0.44

0.50

0.56

0.19

0.21

0.23

0.26

0.27

0.29

0.33

0.37

0.41

0.47

0.16

0.18

0.20

0.22

0.24

0.26

0.30

0.34

0.14

0.16

0.18

0.22

0.24

NRSZC Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

NRSZ

NRSZC

(today’s standard)

(for new designs)

Max. Tanδ ~ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V. & 105°C

7,000 Hours: 16 ~ 18φ

5,000 hours: 12.5φ

4,000 hours: 10φ

3,000 hours: 8φ

2,000 hours: 5 ~ 6.3φ

Shelf Life Test

105°C for 1,000 hours

No Load

0.12

0.14

0.16

0.18

Within ±25% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

PART NUMBER SYSTEM

NRSZC 102 M 16V 10x16 TB F

RoHS Compliant

Optional Tape & Box*

Size (D∅ x L)

Rated Voltage

Tolerance Code

Capacitance Code

Series

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
