LFSPXO071977REEL datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LFSPXO071977REEL

Preview

LFSPXO071977REEL: DescriptionCMOS Output Clock Oscillator; CategoryPassive components oscillator; File Size211KB，2 Pages; ManufacturerIQD Frequency Products

Download Datasheet Parametric View All

LFSPXO071977REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO071977REEL	-	-	View	Buy Now

LFSPXO071977REEL Overview

CMOS Output Clock Oscillator

LFSPXO071977REEL Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Is Samacsys	N
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR
maximum descent time	200 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	1.6mm x 1.2mm x 0.7mm
longest rise time	200 ns
Maximum supply voltage	1.98 V
Minimum supply voltage	1.62 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

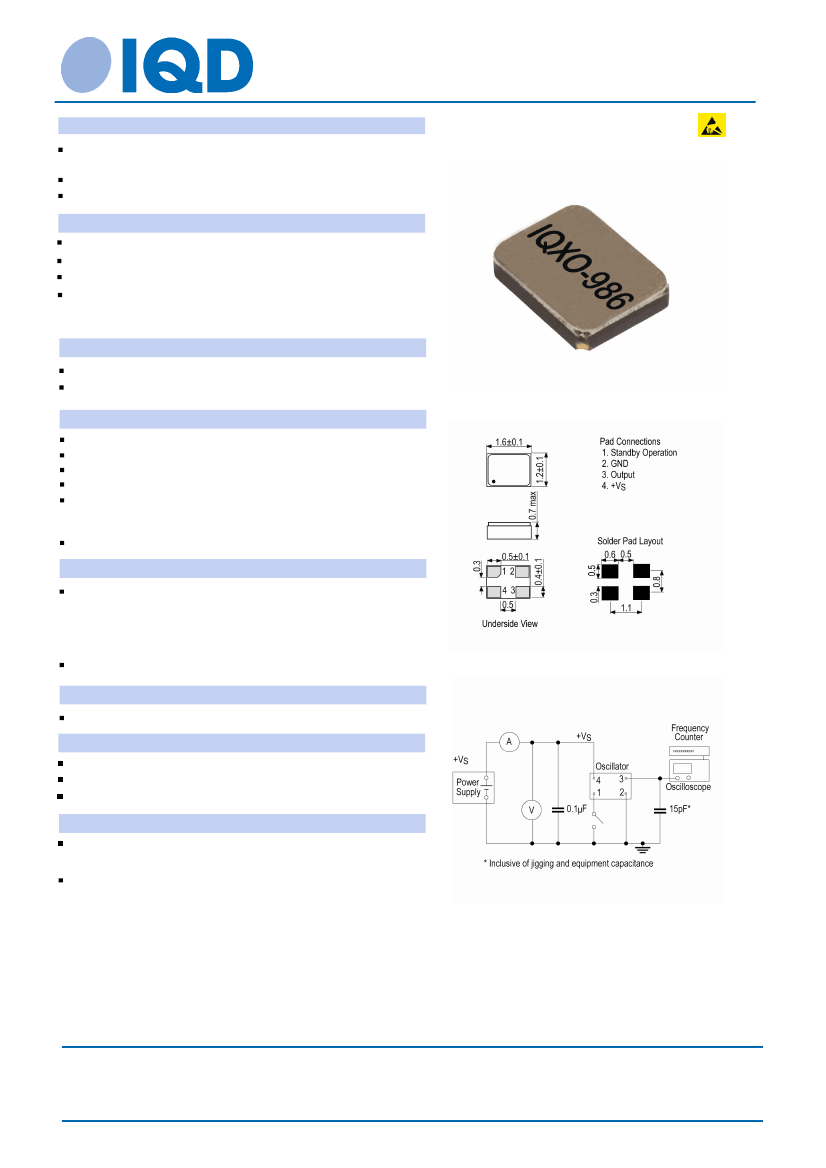

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO071977Reel

Description

1.6 x 1.2mm crystal oscillator in a ceramic package with a seam

sealed metal lid, hermetically sealed.

Model

IQXO-986

Model Issue number

1

Frequency Parameters

Frequency

Frequency Stability

32.7680kHz

±

50.00ppm

Operating Temperature Range

-40.00 to 85.00°C

Frequency Stability: Includes Frequency Tolerance @ 25°C,

operating temperature range, supply voltage variation and load

variation.

Electrical Parameters

Supply Voltage

Current Draw (typ)

Output Details

1.8V ±10%

0.024mA

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Voltage Levels:

Output Low (VoL): 10%Vs max

Output High (VoH): 90%Vs min

Start Up Time: 10ms max

Output Control

CMOS

15pF max

200.0ns max

45/55

Stand-by Mode:

Logic '0' (30%Vs max) to pad 1 disables the oscillator output,

the output goes to a high impedance state.

Logic '1' (70%Vs min) or no connection to pad 1 enables

oscillator output.

Stand-by Current: 1.4μA typical 3μA max

Environmental Parameters

Test Circuit

Storage Temperature Range: –40 to 85°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 19 Apr 18 12:12 using Part Data Sheet V1.00015
