161MPE122K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 161MPE122K

161MPE122K: DescriptionFilm Capacitor, Polypropylene, 1600V, 10% +Tol, 10% -Tol, 0.0012uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size23KB，1 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

161MPE122K Overview

Film Capacitor, Polypropylene, 1600V, 10% +Tol, 10% -Tol, 0.0012uF, Through Hole Mount, RADIAL LEADED

161MPE122K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	RATED AC VOLTAGE: 700V
capacitance	0.0012 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Manufacturer's serial number	MPE
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	1600 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

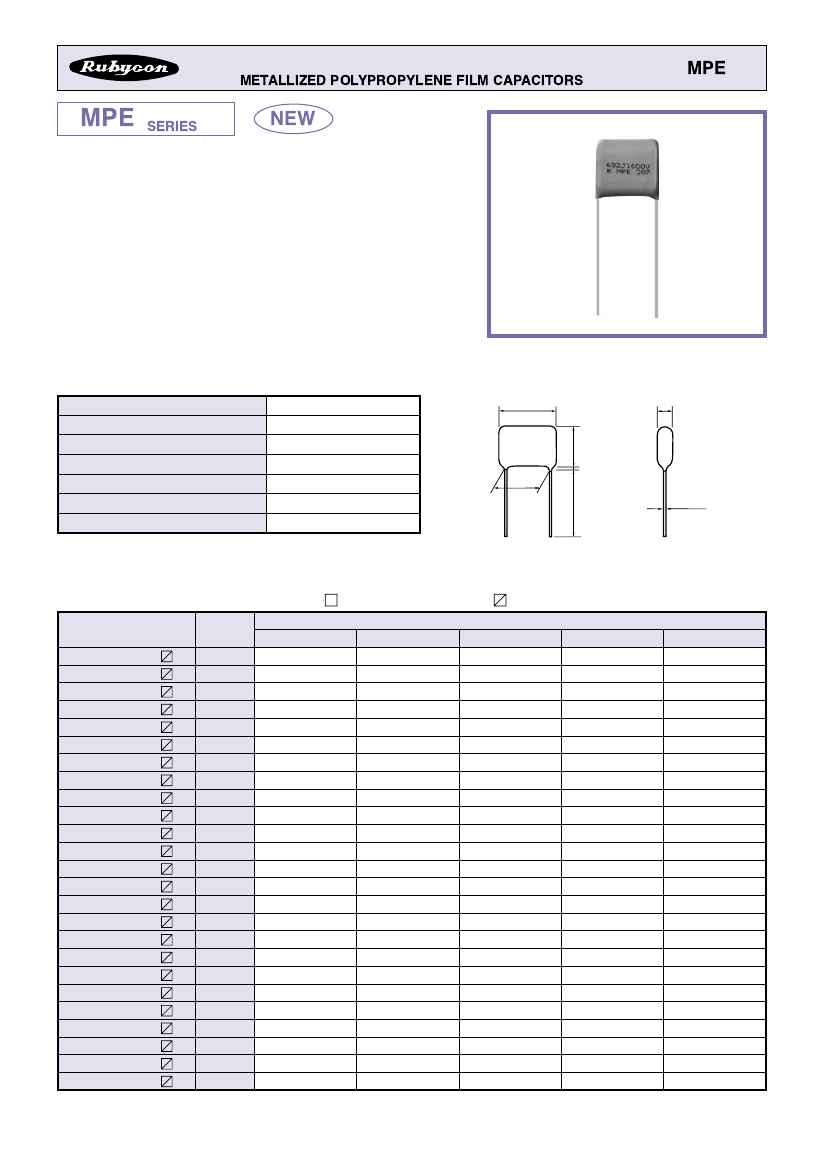

メタライズドポリプロピレンフィルムコンデンサ

MPE

シリーズ

SERIES

◆特長／FEATURES

METALLIZED POLYPROPYLENE FILM CAPACITORS

MPE

NEW

•

特殊電極構造によりコロナ放電特性をアップしたシリーズです。

•

周波数特性・温度特性に優れています。

•

照明電子バラストなどの高周波・高電圧回路に最適です。

•

Up the corona discharge characteristics by 3 section series construction.

•

Excellent characteristics of frequency and temperature.

•

For applications where high frequency, high voltage are like electronic ballast, etc.

◆規格／SPECIFICATIONS

カテゴリ温度/

Category temperture

定格電圧/

Rated voltage (U

)

誘電正接/

tanδ

耐電圧/

Voltage proof

絶縁抵抗/

Insulation resistance

準拠規格/

Reference standard

−40℃∼＋105℃

DC1600V／AC700V

◆寸法図／DIMENSIONS (mm)

A max

B max

静電容量許容差/

Capacitance tolerance

±3%(H), ±5%(J), ±10%(K)

0.001 max at 1kHz

×150% 60s

9000MΩ min

JIS C 5101-17 JIS C 5101-1

F±0.5

C max

20 min

1.0 max

φd±0.05

◆標準品／STANDARD PRODUCTS

品番

Part No.

161 MPE 102

161 MPE 112

161 MPE 122

161 MPE 132

161 MPE 152

161 MPE 162

161 MPE 182

161 MPE 202

161 MPE 222

161 MPE 242

161 MPE 272

161 MPE 302

161 MPE 332

161 MPE 362

161 MPE 392

161 MPE 432

161 MPE 472

161 MPE 512

161 MPE 562

161 MPE 622

161 MPE 682

161 MPE 752

161 MPE 822

161 MPE 912

161 MPE 103

静電容量

cap(μF)

0.001

0.0011

0.0012

0.0013

0.0015

0.0016

0.0018

0.002

0.0022

0.0024

0.0027

0.003

0.0033

0.0036

0.0039

0.0043

0.0047

0.0051

0.0056

0.0062

0.0068

0.0075

0.0082

0.0091

0.01

17.5

: 定格電圧/Rated voltage

6.0

7.5

8.5

9.5

10.0

: 静電容量許容差/Capacitance tolerance

15.0

0.8

1600VDC／700VAC

8.0

9.0

10.5

12.5

13.0

14.5

15.0

15.5

16.0

16.5

17.0

17.5

18.0

18.5
