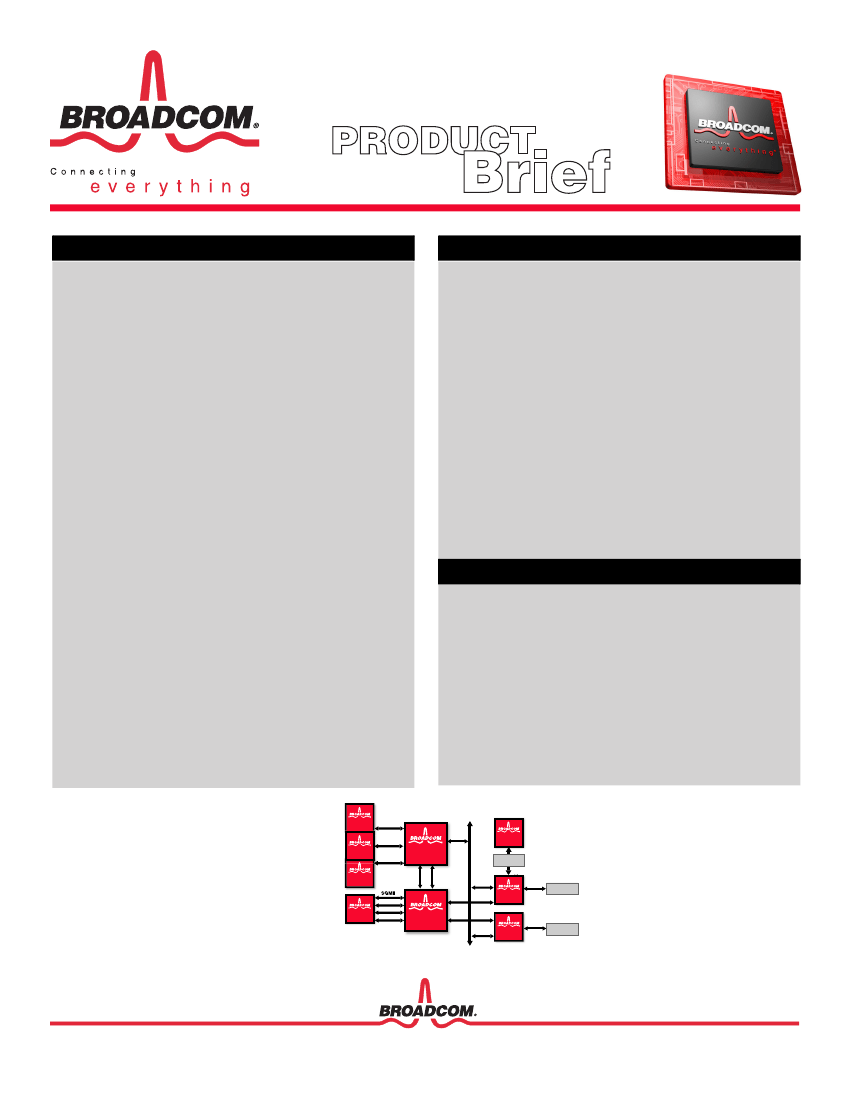

BCM1250
®
HIGH-PERFORMANCE, INTEGRATED 64-BIT MULTIPROCESSOR
FEATURES
•
Two scalable 64-bit MIPS CPUs
•
600 MHz–800 MHz
•
Quad-issue in order pipeline; dual execute, dual memory pipes
•
Enhanced skew pipeline enables zero load-to-use penalty
•
32-KB instruction cache, 32-KB data cache
•
Advanced branch predictors
•
Fast, on-chip multiprocessor bus
•
Connects the CPUs, L2 cache, memory controller and I/O bridges
•
Runs at half the CPU core frequency; 256 bits wide
•
On-chip L2 cache
•
512 KB, shared by both CPUs
•
4-way associative, ECC protected
•
Ways can be removed to provide fast on-chip RAM
•
DDR memory controller
•
wo channels, each with a 64-bit data bus plus optional ECC
•
Runs up to 200 MHz clock rate, 400 MHz data rate
•
Support for DDR SDRAM, SGRAM, and FCRAM
•
High-speed packet interfaces
•
Three 10/100/1000 Ethernet MACs; 802.3 compliant
•
Option to configure MACs into packet FIFOs
•
Up to two packet FIFOs each capable of OC-48 data rates
•
PCI interface
•
32 bits, 33/66 MHz (PCI 2.2)
•
Host bridge or target device
•
HyperTransport™ (formerly LDT) I/O interface
•
Complies with HyperTransport standard for high-speed I/O fabric
•
500-MHz clock rate, double data rate, for 600-MHz CPUs; 600-MHz
clock rate for 800-MHz CPUs
•
Peak bandwidth of 9.6 Gbps in each direction @ 600 MHz
•
Supports double-ended fabrics (to link two BCM1250s)
•
Integrated system I/O
•
Generic I/O for direct connect to boot ROM, flash
•
Two SMBus serial configuration interfaces
•
PCMCIA control interface
•
Two serial interfaces
•
Extensive, on-chip debug features
•
8–10W power dissipation @ 800 MHz
•
Support for leading operating systems including VxWorks
®
, Linux
®
and NetBSD
•
Evaluation board platform available with tools, firmware and software
drivers
Packet Processing Blade
BCM5238
SUMMARY OF BENEFITS
•
Industry-leading performance
•
Processing speed of up to 10 Mpps*
•
128-Gbps on-chip bus bandwidth; 50-Gbps memory bandwidth, 30-
Gbps total I/O bandwidth
Low power dissipation of 8–10W (@ 800 MHz)
High functional integration
Programming ease and flexibility based on MIPS64
®
Instruction Set
Architecture (ISA)
Scalable multiprocessor chip and system architecture
Broad tools and system software support
For additional information on the BCM1250 evaluation boards, refer
to the BCM91250A and BCM91250E product briefs
•
•
•
•
•
•
*Based on internal Broadcom benchmark, using BCM1250 for standard
IPv4 L3 look-up/switching.
APPLICATIONS
•
Due to the BCM1250's world-class performance, power efficiency and
integration, the processor is ideal for a broad variety of applications
including:
•
Enterprise workgroup and backbone switches
•
VPN switches/routers
•
Multiservice access concentrators
•
SAN routers/gateway/switches
•
IP services/subscriber management platforms
•
Web-server switches
•
High-end firewall/intrusion detection devices
•
Wireless basestations
SMII
PCI
BCM5840
2,400 Mbps
IPSec
24 10/100 Ports
BCM5238
BCM5615
24 10/100 +2
Gigabit Ports
FPGA
HyperTransport
BCM5238
GMII
4 10/100/1000 Ports
BCM5404
BCM1250
DDR
DRAM
BCM5680
8 Port
10/100/1000BASE-T
GMII
DDR
DRAM
BCM1250
Aggregation,
L2/L3 Switching
Deep Packet
Look-up, L4-L7
Processing
BCM5823
OVERVIEW
JTAG
Debug/ Bus
Trace
SB_1
Core
SB_1
Core
512 KB
L2 Cache
Data
Mover
DMA
55 Mbps
Serial
Interface
256 Bits
ZBBus
55 Mbps
Serial
Interface
DDR
Memory
Controller
16-50 Gbps
Bus runs at
1/2 core clock @ 128 Gbps
DMA
Dual SMBus
DMA
I/O Bridge
DMA
DMA
PCI/HT Bridge
GPIO/
Interrupt/
PCMCIA
Generic Bus
and
Flash I/O
10/100/
1000
MAC
10/100/
1000
MAC
10/100/
1000
MAC
32-Bit PCI
HT Host
Bridge
FIFO
FIFO
2 Gbps
1 Gbps
3 x GMII/2 x 16-bit FIFO
@ 2 Gbps/@ 6 Gbps
19.2 Gbps
BCM1250 Block Diagram
Broadcom’s first SiByte™ processor, the BCM1250, is a state-of-the-art
multiprocessor solution targeted at the fast-growing networking and
communications markets.
The BCM1250 is the first MIPS64™ processor to offer the industry-
leading performance, high functional integration, and low power levels
required by next-generation networking applications.
The BCM1250 is an intelligent on-chip multiprocessor system (CMP)
consisting of two Broadcom SB-1 high performance MIPS64 CPUs, a
shared 512-KB L2 cache, a DDR memory controller, and integrated I/O.
All major blocks of the processor are connected together via the ZBbus,
a high-speed, split-transaction multiprocessor bus. The bus implements
the standard MESI protocol to ensure coherency between the two CPUs,
L2 cache, I/O agents, and memory.
Three Gigabit Ethernet MACs (10/100/1000) enable easy interfacing to
LANs. To enable higher data rates, or in cases where Ethernet protocol
processing is not required, the MACs can be configured as either three 8-
bit or two 16-bit packet FIFOs. The high-speed I/O is provided using
HyperTransport (HT) I/O fabric and a 32-bit PCI (rev 2.2) local bus. Two
serial ports are available to use as UARTs for console ports or
asynchronous interface for WAN connections at up to T3/OC-1 rates (55
Mbps).
To enable low chip-count systems, the BCM1250 also includes a
configurable generic bus that allows glueless connection of a boot ROM
or flash memory and simple I/O peripherals. On-chip debug, trace, and
performance monitoring functions assist both hardware and software
designers in debugging and tuning the system. The system can be run in
either big- or little-endian mode. The BCM1250 is manufactured in
TSMC's 0.13µ process and is available in an 860 BGA package.
Implementation of MIPS64 ISA
The SB-1 CPU core is a high-performance implementation of the
standard MIPS64 instruction set architecture (ISA), and incorporates the
MIPS-3D and MIPS-MDMX application specific extensions (ASEs).
The core supports a four-issue enhanced skew pipeline and can dispatch
up to two memory and two ALU (Integer, Floating Point, MDMX or
MIPS-3D) instructions per cycle.
