PRELIMINARY
2.45 GHz Band Pass Filter
Detail Specification: 03/06/06
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450BP15D100
2400 - 2500
2.6 dB max.
9.5 dB min.
880 ~ 1990 MHz
2110 ~ 2170 MHz
4800 ~ 5000 MHz
7200 ~ 7500 MHz
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
30 dB
20 dB
30 dB
20 dB
Eg. 2450BP15D100S
Eg. 2450BP15D100E
Eg. 2450BP15D100(E or S)
Eg. 2450BP15D100(E or S)/Pb
Input Power
Impedance
Operating Temperature
Storage Temperature
Reel Quantity
3 Watts max.
50
Ω
-40 to +85°C
-40 to +85°C
4,000
P/N 2450BP15D100
Page 1 of 2

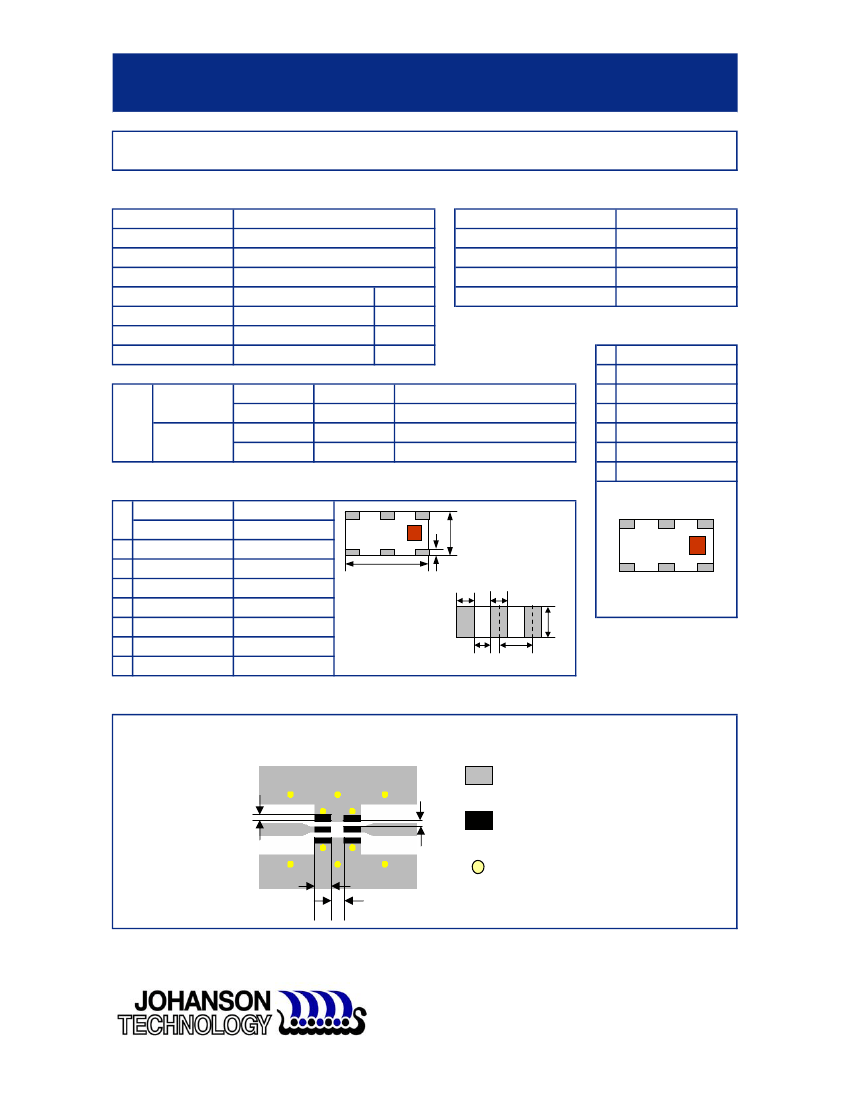

Terminal Configuration
No.
Function
GND
IN
GND
GND
OUT
GND
3
2
1
1
P/N
Suffix Termination
Style
Packaging
Style
2
3
4
5
6
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.079 ± 0.004
0.049 ± 0.004
0.022 ± 0.004
0.016 ± 0.016
0.016 ± 0.016
0.012 +.004/-.008
0.016 ± 0.008
0.031 ± 0.004
mm
2.00 ± 0.10
1.25 ± 0.10
0.55 ± 0.10
0.40 ± 0.40
0.40 ± 0.40
0.30
+0.1/-0.2
g
p
T
L
c
a
b
W
4
5
6
0.40 ± 0.20
0.80 ± 0.10
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
Solder Resist
0.4
0.4
Land
*
1.00
*
Through-hole (
φ
0.35)
0.80
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
PRELIMINARY
2.45 GHz Band Pass Filter
Detail Specification: 03/06/06
P/N 2450BP15D100
Page 2 of 2

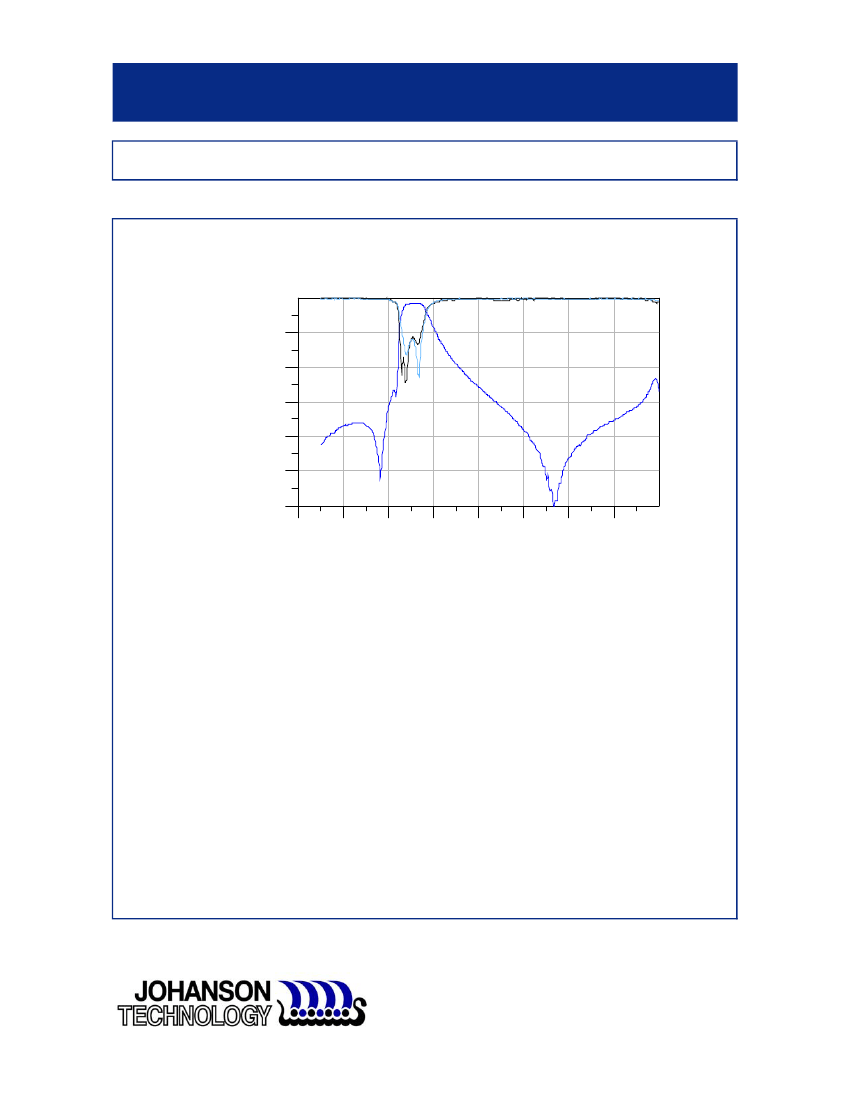

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
S(2,2)
0
-10
)
)
)
)
S(1,1)
dB(S(2,2))
dB(S(1,1))
dB(S(2,1))
dB
-20
-30
-40
-50
S(2,1)
)
-60
0
1
2
3
4
freq, GHz
5
6
7
8
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
