2.45 GHz Band Pass Filter
Part
Number
2450BP18C100C
P/N 2450BP18C100C
Detail Specification Page 1 of 2
Return
Loss
9.5 dB min.
Frequency
(MHz)
2450 ± 50
Insertion
Loss
2.5 dB max
Attenuation (min.)
40 dB @ 900-928 MHz
30 dB @ 1.2 - 1.8 GHz
25 dB @ 2.1 GHz
35 dB @ 4.8 - 5.0 GHz
40 dB @ 7.2 - 7.5 GHz
Ripple
0.7 dB min.
Input Power
500 mWatt max
Group Delay
5 nsec max
Impedance
50
Ω
Operating Temperature Range
-40 to +85°C

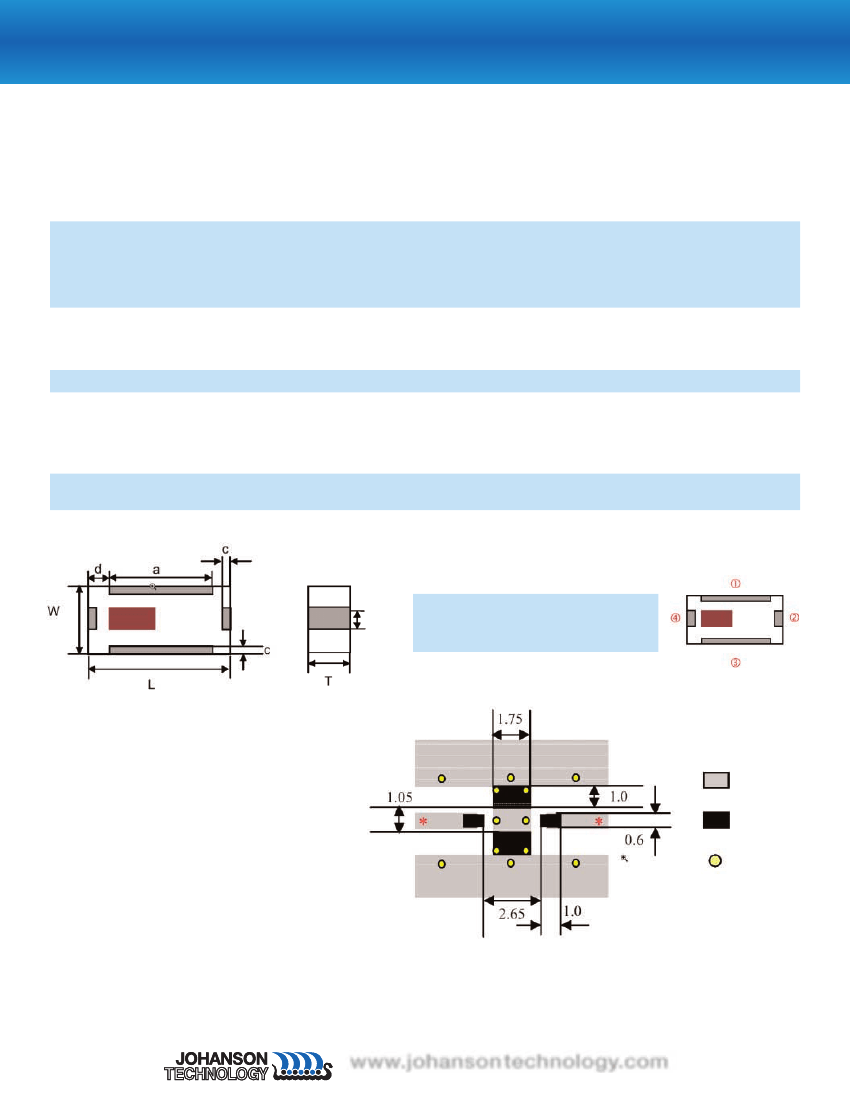

Mechanical Dimensions
L
Inches
mm
0.126 ± .006
3.2 ± 0.15
W
0.063 ± .006
1.6 ± 0.15
T
0.033 ± .004
0.85± 0.1
a
0.075 ± .006
1.9 ± 0.15
b
0.020 ± .006
0.5 ± 0.15
c
0.012 ± .008
0.30 ± 0.2
d
0.026 ± .008
0.65 ± 0.2
Terminal Configuration
No.
1
2
Function
GND
OUT
No.
3
4
Function
GND
IN
Mounting Considerations
Mount device with brown mark facing up.
Line width should be designed to provide 50Ω
impedance matching characteristics.
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johanson technology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
“High Frequency Ceramic Solutions”
2.45 GHz Band Pass Filter
P/N 2450BP18C100C
Detail Specification Page 1 of 2

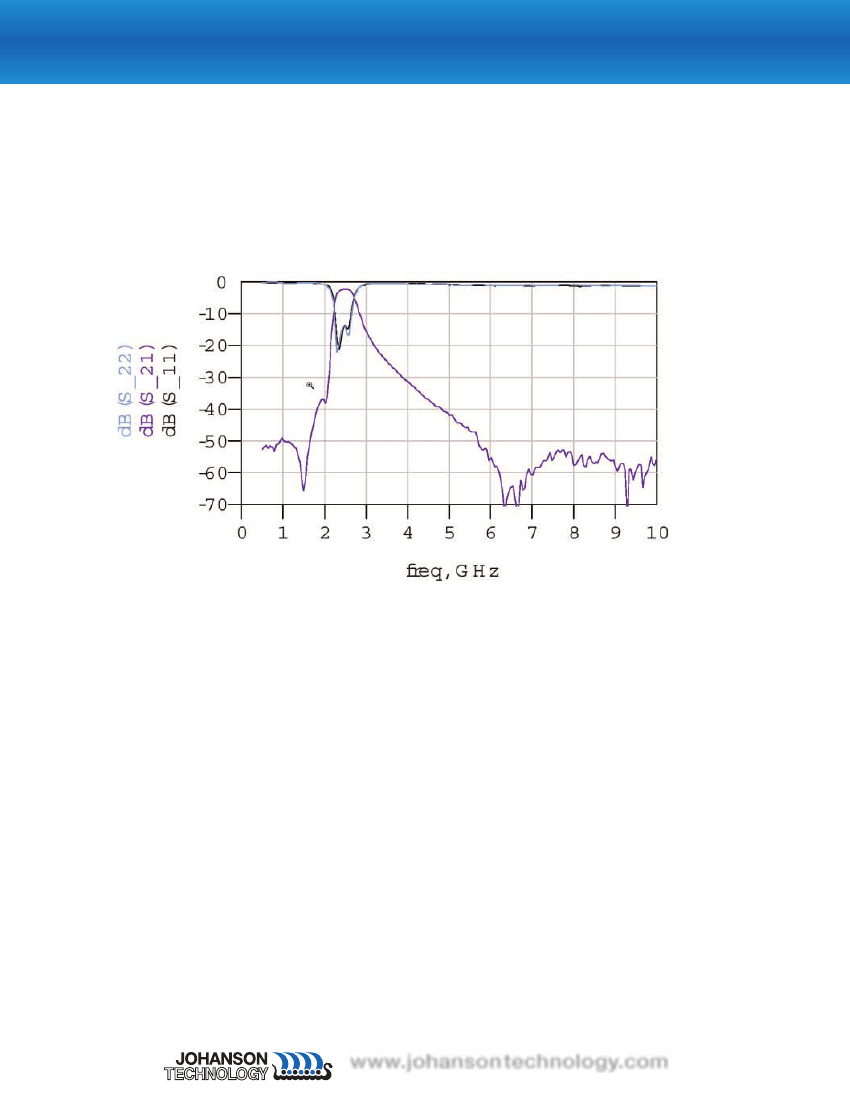

Typical Transmission / Return Loss: P/N 2450BP18C100C
