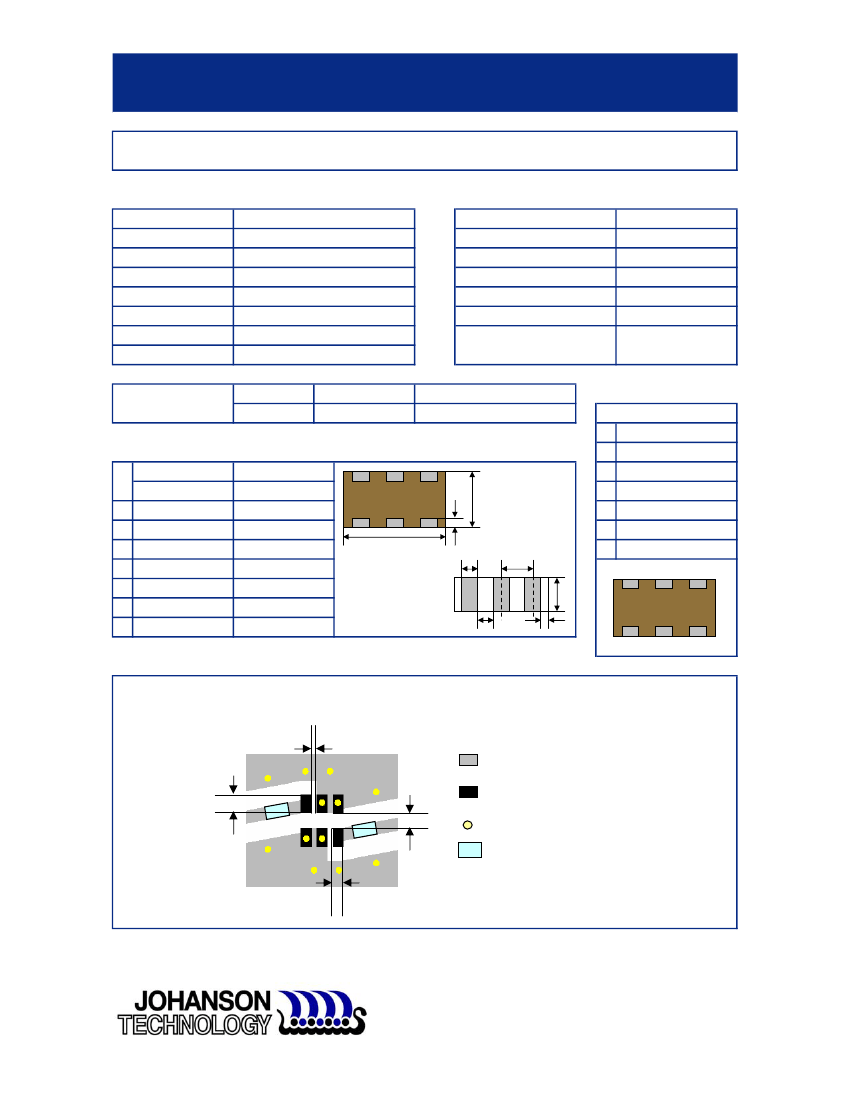

"High Frequency Ceramic Solutions"
2.45 GHz Band Pass Filter
Detail Specification: 08/18/08
P/N 2450BP18C100E
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450BP18C100E
2450 ± 50
2.5 dB max.
9.5 dB min.
40 dB @ 1.2 - 1.8 GHz
25 dB @ 2.1 GHz
35 dB @ 4.8 - 5.0 GHz
25 dB @ 7.2 - 7.5 GHz
100% Tin
Tin / Lead
Suffix = "None"
Suffix = "/Pb"
Ripple
Impedance
Input Power
Reel Quanity
Reel Quanity
Operating Temperature
Storage Temperature
0.7 dB max.
50
Ω
3 Watt max.
3,000
3,000
-40 to +85°C
+5 to +35°C, Humidity:
45-75%RH, 12 mos. max
Termination
Style
eg. 2450BP18C100E
eg. 2450BP18C100E/Pb
Terminal Configuration
No.
Function
I/O
GND
GND
GND
GND
I/O
1
2
3
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.126 ± 0.006
0.063 ± 0.006
0.033 ± 0.004
0.022 ± 0.006
0.014 ± 0.006
0.012 +.004/-.008
0.016 ± 0.006
0.039 ± 0.004
mm
3.20 ± 0.15
1.60 ± 0.15
0.85 ± 0.10
0.55 ± 0.15
0.35 ± 0.15
0.30
+0.1/-0.2
g
b
L
c
W
1
2
3
4
5
a
p
6
T
0.40 ± 0.15
1.00 ± 0.10
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
*
Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
Units: mm
0.35
Solder
Land
1.05
*
*
0.9
Through-hole (ø 0.35)
DC Blocking Capacitor
0.65
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
e • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2.45 GHz Band Pass Filter
Detail Specification: 08/18/08
P/N 2450BP18C100E
Page 2 of 2

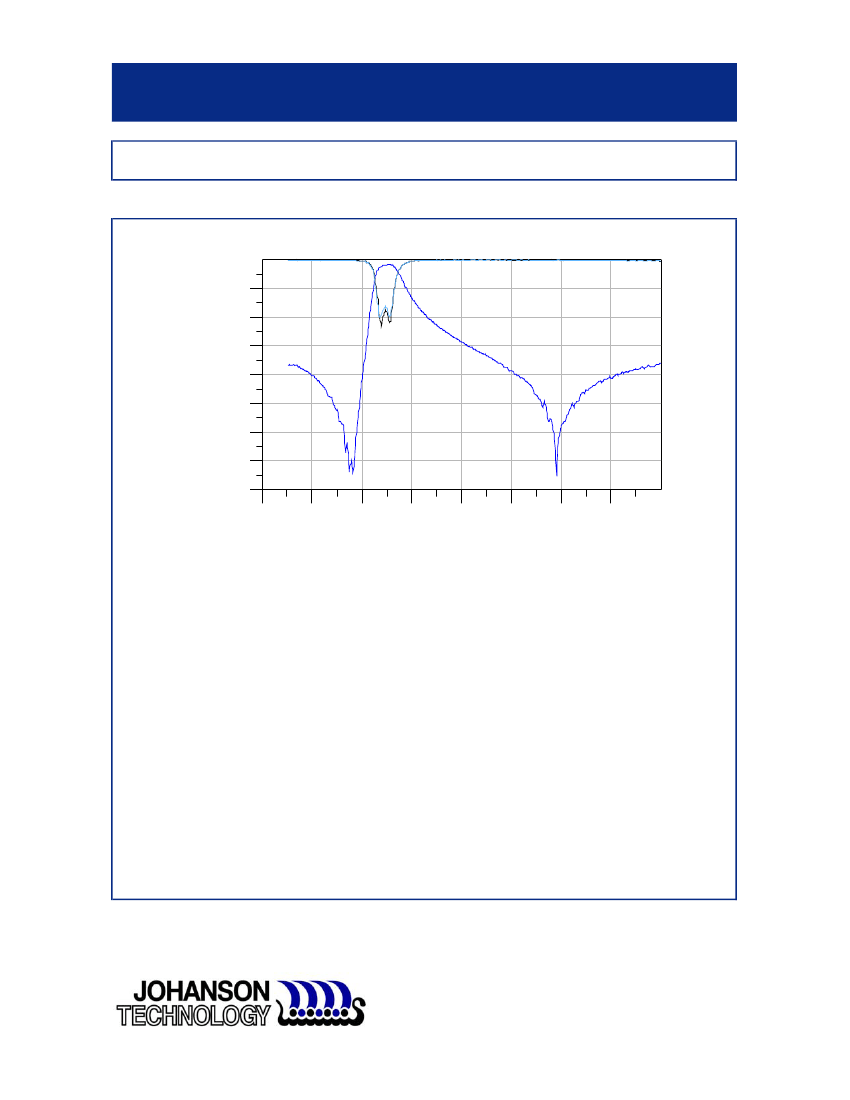

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
0
-10
-20
-30
-40
-50
-60
-70
-80
0
1
2
)
)
)
)
)
)
)
dB(S(2,2))
dB(S(1,1))
dB(S(2,1))
)
)
)
)
)
)
)
)
)
)
3
)
4
5
6
7
8
freq, GHz
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
