PRELIMINARY
2.45 GHz Band Pass Filter
Detail Specification: 06/05/07
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450BP39C100D
2400 - 2500
2.2 dB max.
9.5 dB min.
880 ~ 915MHz
1710 ~ 1785MHz
1850 ~ 1910MHz
2100MHz
4800 ~ 5000MHz
7200 ~ 7500MHz
30 dB
30 dB
25 dB
25 dB
25 dB
15 dB
Terminal Configuration
No.
1
2
Function
GND
OUT
GND
IN
1
Input Power
Impedance
Operating Temperature
Storage Temperature
Reel Quanity
MSL
500 mW max.
50
Ω
-40 to +85°C
-40 to +85°C
3,000
2
P/N 2450BP39C100D
Page 1 of 2

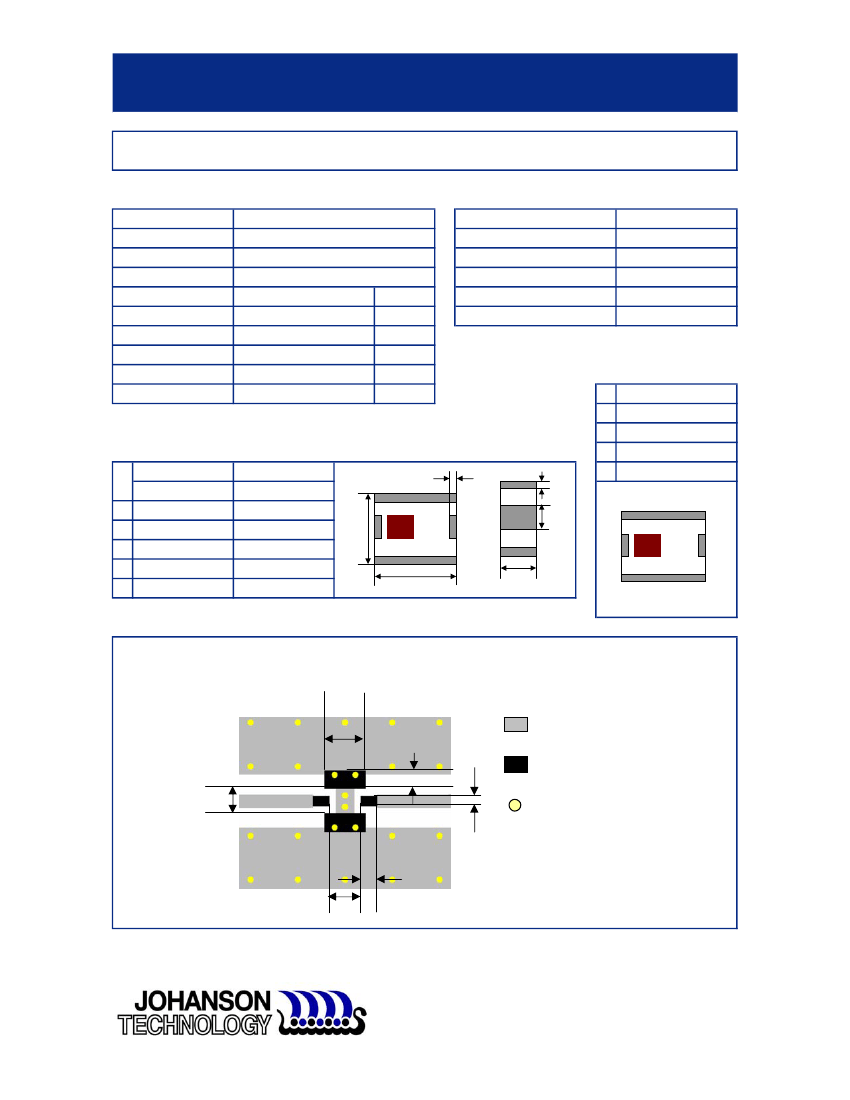

Mechanical Dimensions
In
L
W
T
a
b
c
0.098 ± 0.008
0.079 ± 0.008
0.035 ± 0.004
0.012 ± 0.008
0.024 ± 0.008
0.012 ± 0.008
mm
2.50 ± 0.20
2.00 ± 0.20
0.90 ± 0.10
0.30 ± 0.20
0.60 ± 0.20
0.30 ± 0.20
L
T
W
c
a
b
3
4
4
2
3
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
2.50
Solder Resist
Land
1.05
1.40
*
*
0.6
Through-hole (
φ
0.35)
1.0
1.9
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
PRELIMINARY
2.45 GHz Band Pass Filter
Detail Specification: 06/05/07
P/N 2450BP39C100D
Page 2 of 2

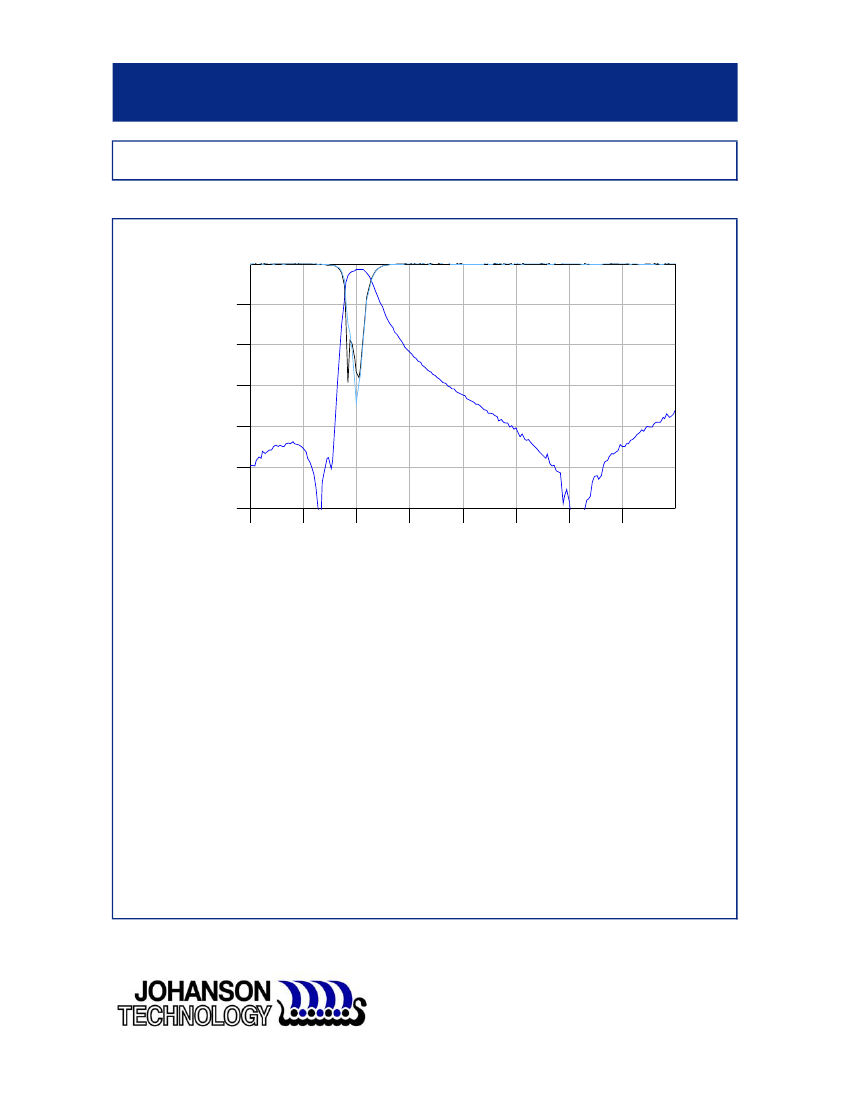

Typical Electrical Performance (T=25°C)
)
)
)
0
)
)
)
)
)
)
-10
-20
-30
-40
-50
-60
0.5
1.5
2.5
)
)
)
)
)
dB(S(2,2))
dB(S(1,1))
dB(S(2,1))
)
)
)
)
)
)
3.5
4.5
freq, GHz
5.5
6.5
7.5
8.5
)
)
)
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
