"High Frequency Ceramic Solutions"
2.45 GHz Band Pass Filter
Detail Specification: 10/18/05
P/N 2450BP39D100B
Page 1 of 2

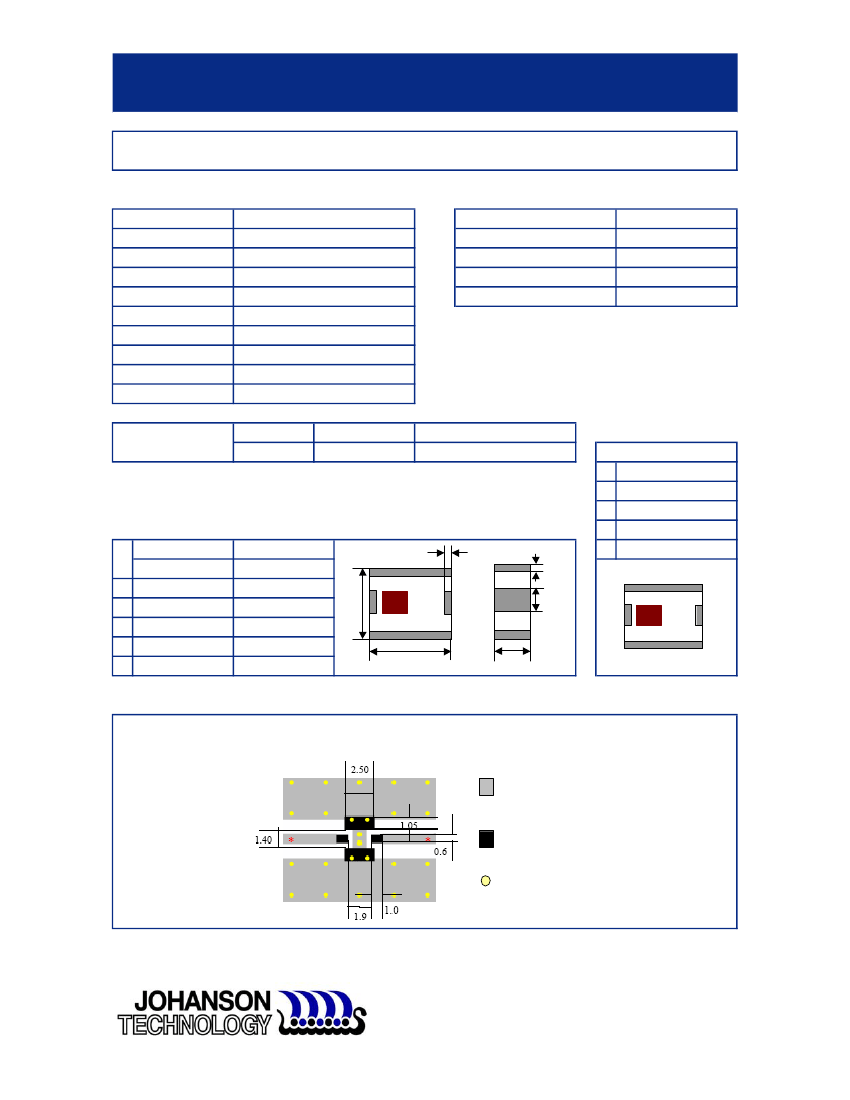

General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450BP39D100B
2400 - 2500
2.5 dB max.
9.5 dB min.
35 dB @ 880 - 915 MHz
18 dB @ 1710 - 1990 Mhz
12 dB @ 2100 MHz
35 dB @ 3200 MHz
22 dB @ 4800 - 5000 MHz
22 dB @ 7200 - 7500 MHz
100% Tin
Tin / Lead
Suffix = "None"
Suffix = "/Pb"
eg. 2450BP39D100B
eg. 2450BP39D100B/Pb
Terminal Configuration
No.
1
2
Impedance
Input Power
Operating Temperature
Storage Temperature
Reel Quanity
50
Ω
500 mW max.
-40 to +85°C
-40 to +85°C
3,000
Termination
Style
Function
GND
OUT
GND
IN
1
Mechanical Dimensions
In
L
W
T
a
b
c
3
mm
2.50 ± 0.20
2.00 ± 0.20
0.95 ± 0.10
0.30 ± 0.20
0.60 ± 0.20
0.30 ± 0.20
c
a
W
b
4
0.098 ± 0.008
0.079 ± 0.008
0.037 ± 0.004
0.012 ± 0.008
0.024 ± 0.008
0.012 ± 0.008
4
2
L
T
3
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
Solder
Land
Through-hole (φ0.35)
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2.45 GHz Band Pass Filter
Detail Specification: 10/18/05
P/N 2450BP39D100B
Page 2 of 2

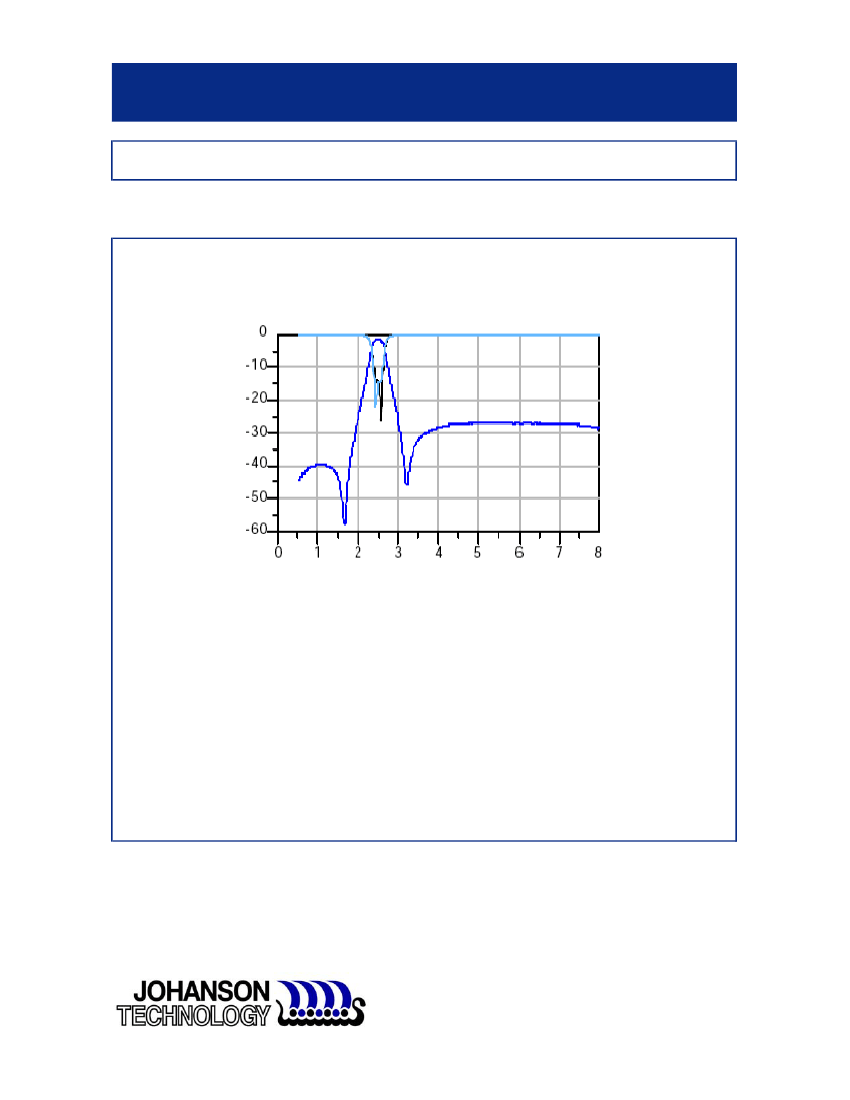

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
S(2,2)
)
)
)
)
)
)
)
)
)
)
)
)
)
S(1,1)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
S(2,1)
)
)
)
)
)
)
)
)
)
dB
)
Frequency (Ghz)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
