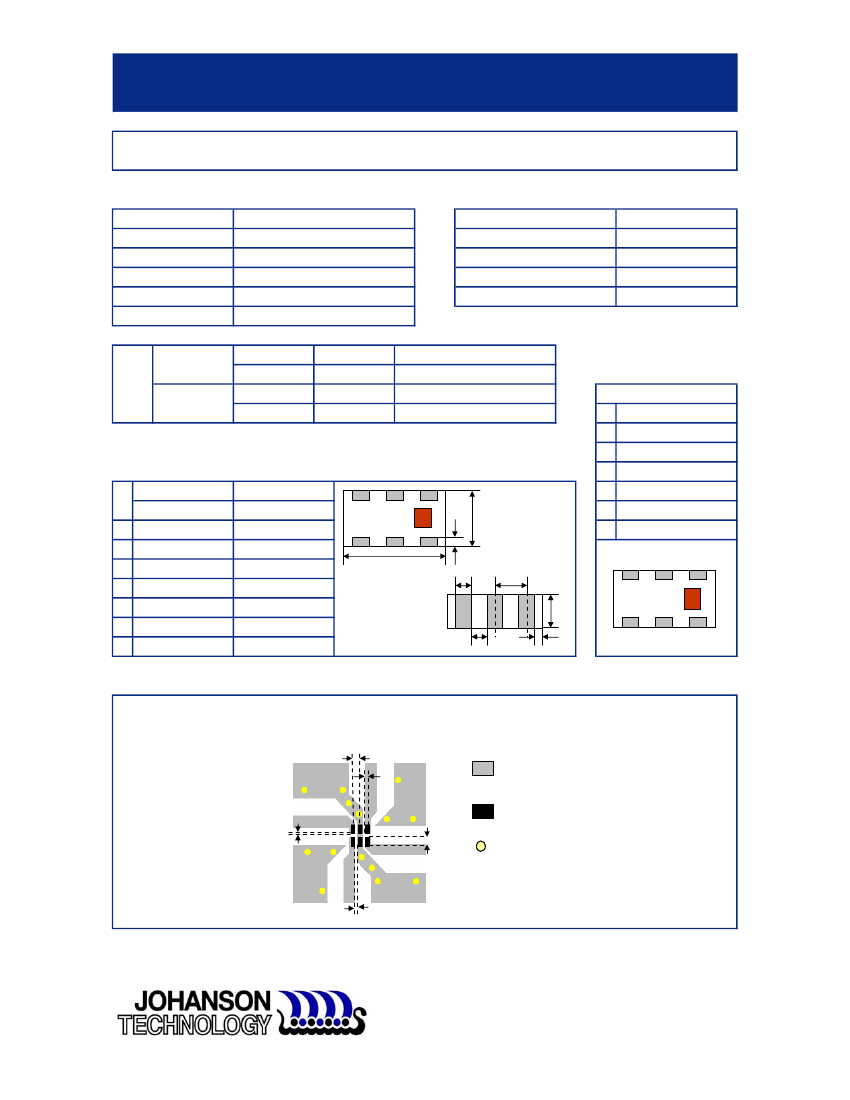

"High Frequency Ceramic Solutions"
2450 MHz Directional Coupler
Detail Specification: 01/06/06
P/N 2450CP14A100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Coupling
Isolation
2450CP14A100
2400 - 2500
0.74 dB max.
10.9 dB min.
10 ± 1.0 dB
22.0 dB min.
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Eg. 2450CP14A100
Eg. 2450CP14A100
Eg. 2450CP14A100(E or S)
Eg. 2450CP14A100(E or S)/Pb
Terminal Configuration
No.
Impedance
Input Power
Operating Temperature
Storage Temperature
Reel Quanity
50
Ω
3 Watt max.
-40 to +85°C
-40 to +85°C
4,000
P/N
Suffix Termination
Style
Packaging
Style
Function
IN
GND
Coupled Out
Termination
GND
Main Out
3
2
1
1
2
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.063 ± 0.004
0.031 ± 0.004
0.024 ± 0.004
0.008 ± 0.004
0.008 +.004/-.008
0.006 ± 0.004
0.012 ± 0.004
0.020 ± 0.002
3
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.20 +0.1/-0.15
0.15 ± 0.10
0.30 ± 0.10
0.50 ± 0.05
g
b
T
L
c
a
p
W
4
5
6
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
Units: mm
0.50
*
0.25
*
0.25
0.55
Solder Resist
Land
Through-hole
φ
0.3)
(
*
0.25
*
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2450 MHz Directional Coupler
Detail Specification: 01/06/06
P/N 2450CP14A100
Page 2 of 2

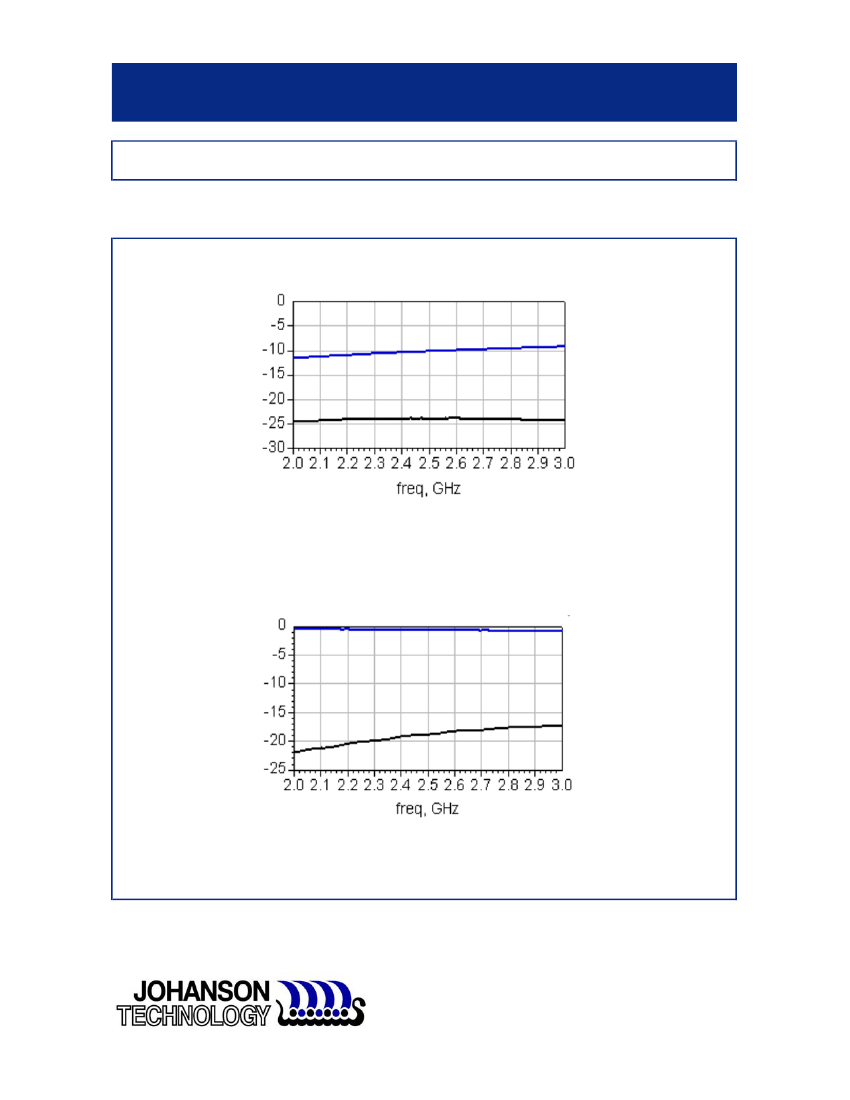

Typical Electrical Performance (T=25°C)
)
)
)
)
Coupling and Isolation
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Coupling
)
)
)
)
)
)
)
)
dB
)
)
)
)
Isolation
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Attenuation and Return Loss
)
)
)
)
Attenuation
)
)
)
)
)
)
)
)
dB
)
Return Loss
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
