High Frequency Ceramic Solutions
2450 MHz Directional Coupler
Detail Specification: 01/19/10
P/N 2450CP14B100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Coupling
Isolation
Packaging
Style
2450CP14B100
2400 - 2500
0.34 dB max.
15.6 dB min.
17.65 ± 1.0 dB
25.0 dB min.
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Eg. 2450CP14B100S
Eg. 2450CP14B100E
Eg. 2450CP14B100(E or S)
Eg. 2450CP14B100(E or S)/Pb
Terminal Configuration
No.
Impedance
Input Power
Operating Temperature
Storage Temperature
Reel Quanity
50
Ω
3 Watt max.
-40 to +85°C
-40 to +85°C
4,000
P/N
Suffix Termination
Style
Function
IN
GND
Coupled Out
Termination
GND
Main Out
3
2
1
1

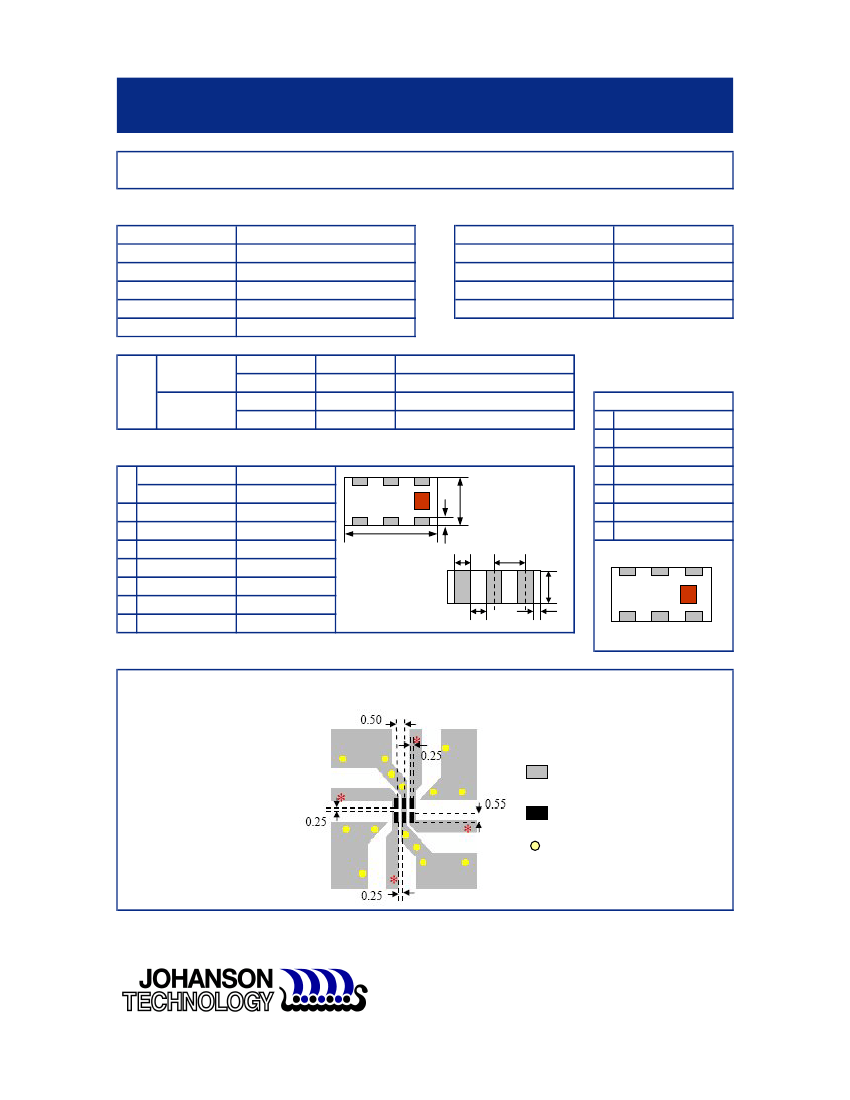

Mechanical Dimensions
In
1.60
L
0.063 ± 0.004
0.80
W
0.031 ± 0.004
0.60
T
0.024 ± 0.004
0.20
a
0.008 ± 0.004
b
0.008 +.004/-.006 0.20
0.15
c
0.006 ± 0.004
0.30
g
0.012 ± 0.004
0.50
p
0.020 ± 0.002
Mounting Considerations
2
mm
± 0.10
± 0.10
± 0.10
± 0.10
+0.1/-0.15
± 0.10
± 0.10
± 0.05
g
b
T
3
W
c
L
a
p
4
5
6
4
5
6
Mount these devices with brown mark facing up.
*
Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
Units: mm
Solder Resist
Land
Through-hole (
φ
0.3)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2010 Johanson Technology, Inc. All Rights Reserved
High Frequency Ceramic Solutions
2450 MHz Directional Coupler
Detail Specification: 01/19/10
P/N 2450CP14B100
Page 2 of 2

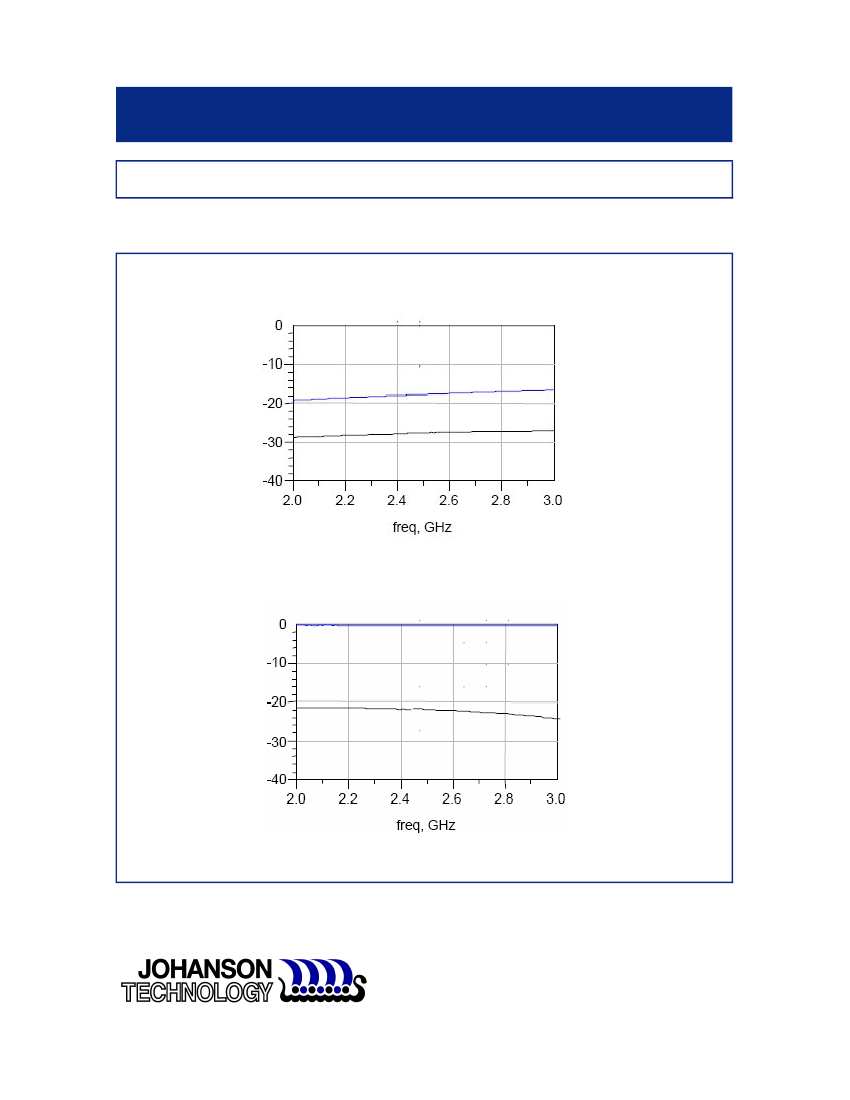

Typical Electrical Performance (T=25°C)
Coupling and Isolation
Coupling
dB
Isolation
Attenuation and Return Loss
Attenuation
dB
Return Loss
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2010 Johanson Technology, Inc. All Rights Reserved
