“High Frequency Ceramic Solutions”
2.45/5.512 GHz Diplexer
Detail Specification: 01/13/2003
Part
Number
2450DP15A5512_
P/N 2450DP15A5512
Page 1 of 2
Attenuation
Low Band
0.70 dB max.
20 dB min.
Frequency
(MHz)
2400 - 2500
5150 - 5875
Attenuation
High Band
15 dB min.
0.9 dB max.
Return
Loss
9.5 dB min.
9.5 dB min.
Input Power
3 Watts max
Impedance
50
Ω
Operating Temperature Range
-40 to +85°C
Reel Qty
4000

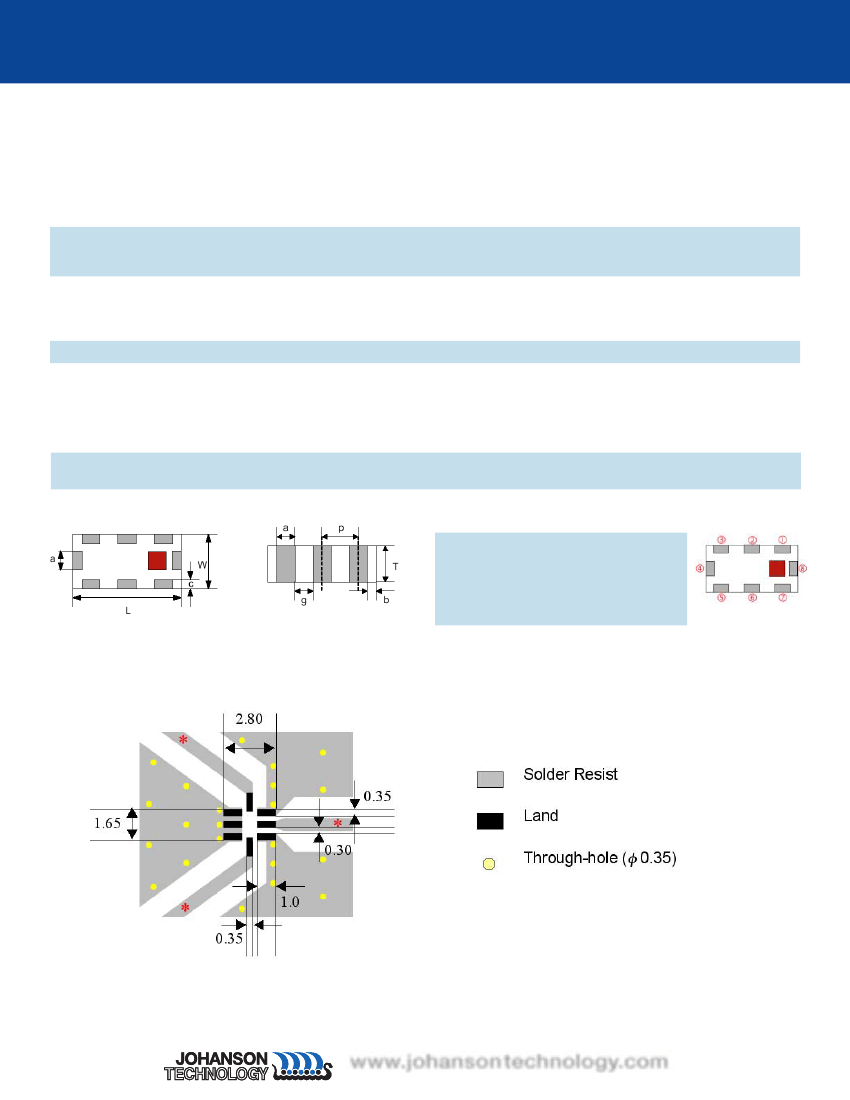

Mechanical Dimensions
L
Inches
mm
0.079 ± .004
2.0 ± 0.1
W
0.049± .004
1.25 ± 0.1
T
0.034 ± .004
0.85 ± 0.1
a
0.012 ± .004
0.30 ± 0.1
b
0.008 ± .004
0.20 ± 0.1
c
0.012 + .004/-.008
0.30+0.1/-0.2
g
0.014 ± .004
0.35 ± 0.1
p
0.026 ±.002
0.65 ± 0.05
Terminal Configuration
No.
1
2
3
4
Function
GND
Common Port (P1)
GND
High Freq. Port (P3)
No.
Function
5
GND
6
GND
7
GND
8 Low Freq. Port (P2)
Mounting Considerations
Mount these devices with brown colored side facing up. Line width should be designed to provide 50Ω impedance matching characteristics.
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johanson technology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
“High Frequency Ceramic Solutions”
2.45/5.512 GHz Diplexer
Detail Specification: 01/13/2003
P/N 2450DP15A5512
Page 2 of 2

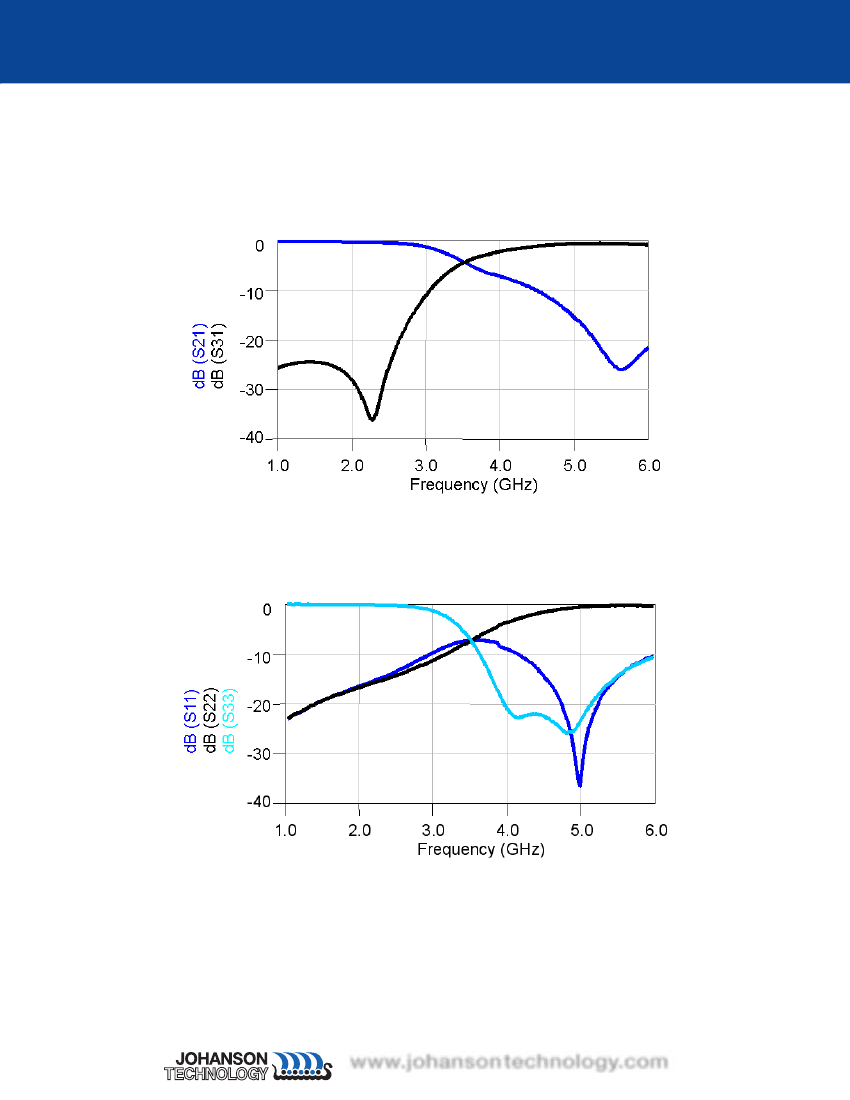

Insertion Loss
Return Loss
For the above graphs: Port 1 is Pin 2
(Common Port); Port 2 is Pin 8 (Low Band); Port 3 is Pin 4 (High Band)
www.johanson technology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
