"High Frequency Ceramic Solutions"
2450 / 5400 MHz Diplexer ( LPF / BPF)
Detail Specification: 05/12/04

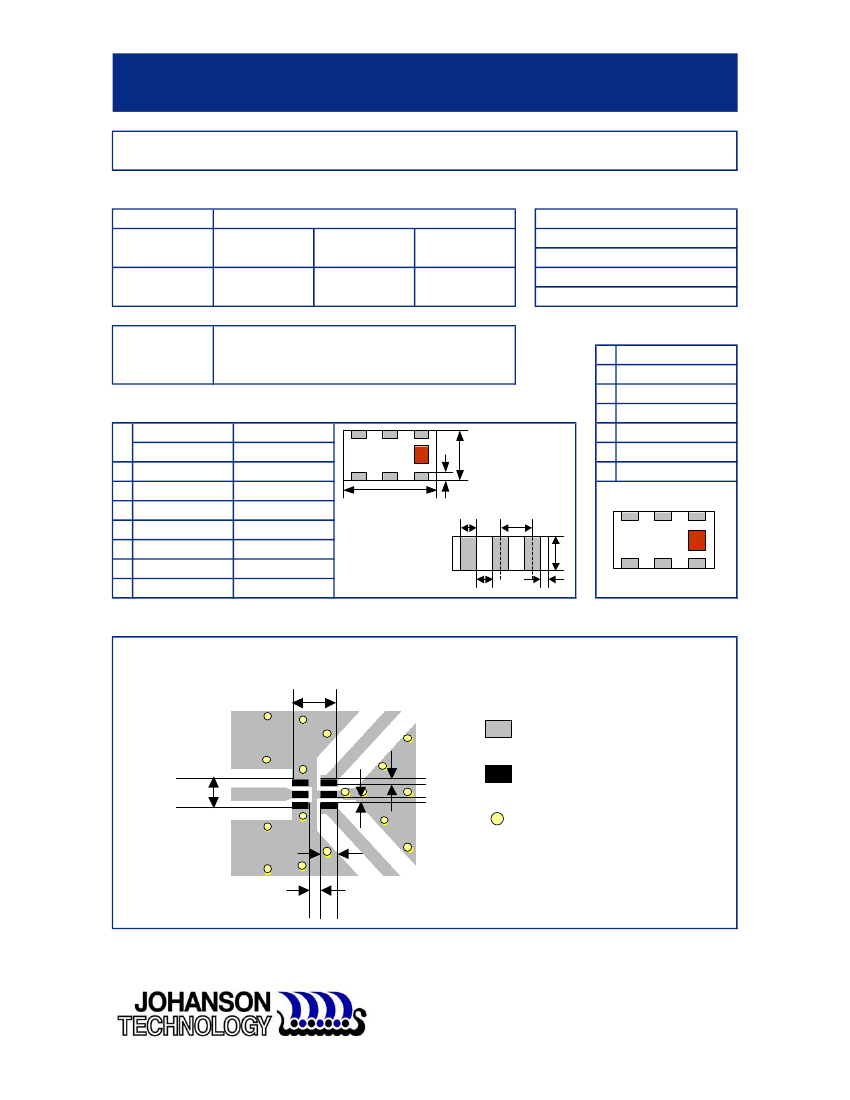

P/N 2450DP15E5400
Page 1 of 2
General Specifications
Part Number
Attenuation in
Attenuation in
2450DP15E5400
20 dB min. @
4.8 ~ 6.0 GHz
17 dB min. @
1.8 ~ 2.5 GHz
20 dB min. @
7.2 ~ 7.5 GHz
20 dB typ. @
10.3 ~ 10.7 GHz
Input Power
Impedance
Operating Temp
Storage Temp
Reel Quanity
3 Watts max.
50
Ω
-40 to +85°C
-40 to +85°C
4000
* 0.70 dB max.@
2.4 ~ 2.5 GHz
Low Band Path
* 1.60 dB max.@
High Band Path
4.9 ~ 5.875 GHz
Pass-band
Return Loss
In Both Bands
Terminal Configuration
9.5 dB min.
No.
Function
Higher Freq. Port (P1)
GND
Lower Freq. Port (P3)
GND
Common Port (P2)
GND
3
2
1
1
2
3
4
W
c
L
a
p
* Note:
The I.L. parameters are based on probed & TRL cal'd measurement
Mechanical Dimensions
In
L
0.079 ± 0.004
W
0.049 ± 0.004
T
0.035 ± 0.004
0.012 ± 0.004
b
0.008 ± 0.004
c
0.012
+.004/-.008
a
g
0.014 ± 0.004
p
0.026 ± 0.002
mm
2.00 ± 0.10
1.25 ± 0.10
0.90 ± 0.10
0.30 ± 0.10
0.20 ± 0.10
0.30
+0.1/-0.2
0.35 ± 0.10
0.65 ± 0.05
Unit : mm
g
b
5
6
T
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50Ω impedance matching characteristics.
Units: mm
2.80
*
0.35
1.65
Solder Resist
Land
Through-hole (φ0.3)
*
0.30
1.00
0.80
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
*
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2450 / 5400 MHz Diplexer ( LPF / BPF)
Detail Specification: 05/12/04
P/N 2450DP15E5400
Page 2 of 2

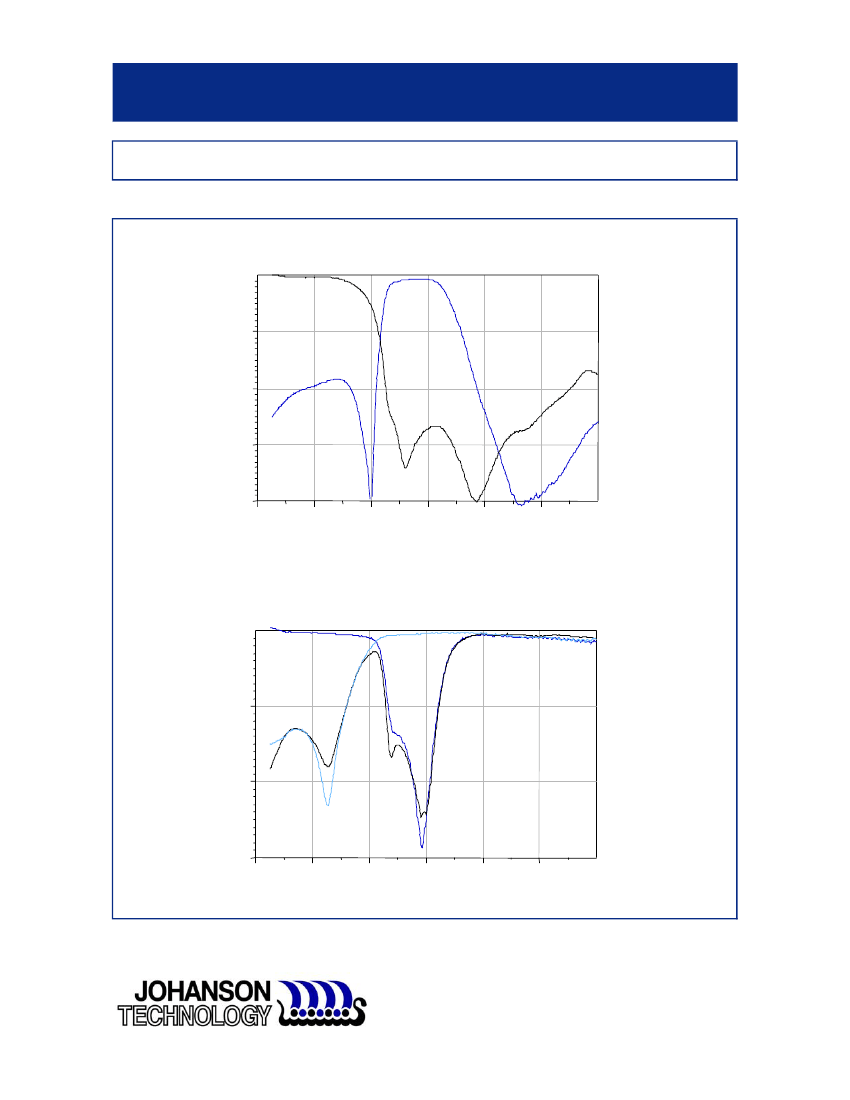

Typical Electrical Performance (T=25°C)
Attenuation
)
)
)
S_32
)
)
)
0
)
)
)
-10
)
S_12
-20
dB
-30
-40
0
2
4
)
6
freq, GHz
)
)
8
10
12
Return Loss
0
S_11
)
)
)
-10
S_33
S_22
-20
dB
-30
0
2
4
6
freq, GHz
)
8
10
12
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
