"PRELIMINARY"
2.45 GHz High Pass Filter
Detail Specification: 07/27/06
General Specifications
Part Number
Freq Range (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450HP15A100
2400 - 2500
0.85 dB max.
9.5 dB min.
25 dB @ 875 ~ 920MHz
20 dB @ 1705 ~ 1790MHz
19 dB @ 1845 ~ 1915MHz
100% Tin
Tin / Lead
Suffix = "None"
Suffix = "/Pb"
eg. 2450HP15A100
eg. 2450HP15A100/Pb
Impedance
Operating Temperature
Reel Quantity
Input Power
50
Ω
-40 to +85°C
4,000
3 W max.
P/N 2450HP15A100
Page 1 of 2

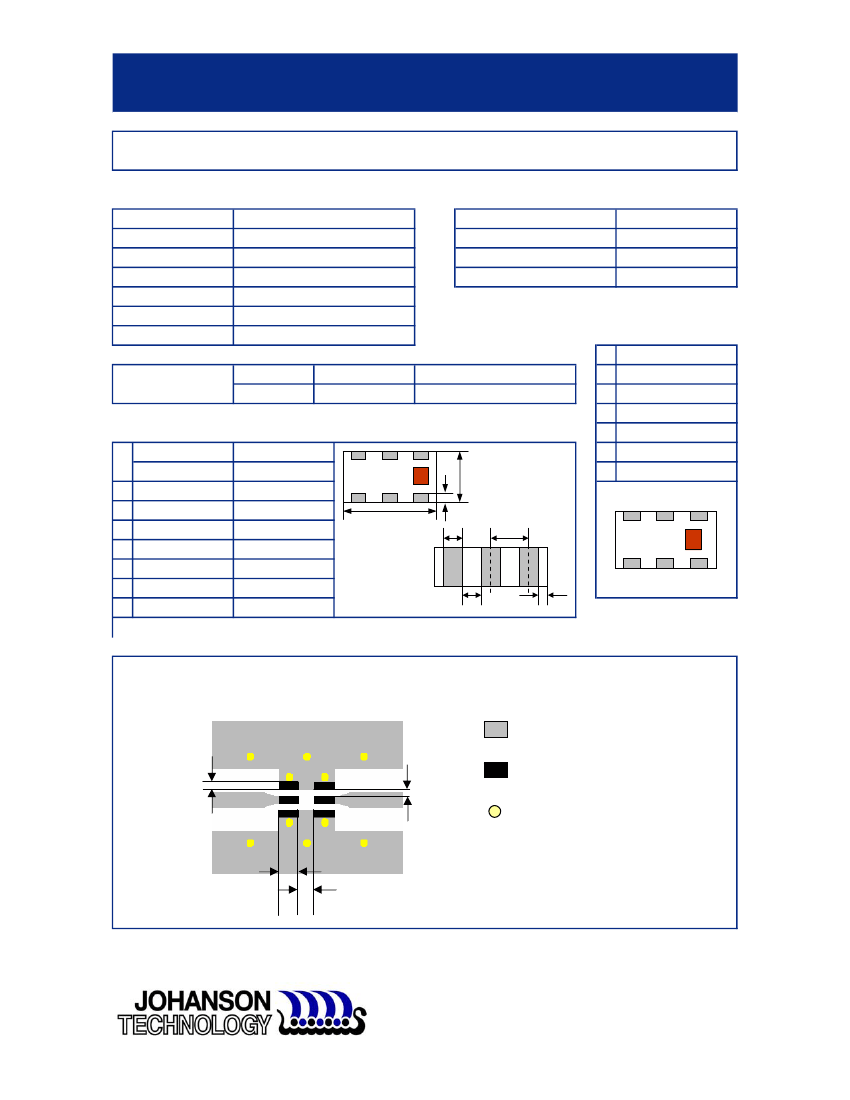

Terminal Configuration
No.
Function
GND
IN
GND
GND
OUT
GND
3
2
1
Termination
Style
1
2
3
4
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.079 ± 0.004
0.049 ± 0.004
0.037 ± 0.004
0.012 ± 0.004
0.008 ± 0.004
0.008 +.004/-.008
0.014 ± 0.008
0.026 ± 0.006
mm
2.00 ± 0.10
1.25 ± 0.10
0.95 ± 0.10
0.30 ± 0.10
0.20 ± 0.10
0.20
+0.1/-0.2
g
b
T
0.35 ± 0.20
0.65 ± 0.15
L
a
p
c
5
W
6
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
Solder Resist
0.35
0.30
Land
Through-hole (
φ
0.5)
*
1.00
*
0.80
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2.45 GHz High Pass Filter
Detail Specification: 07/27/06
P/N 2450HP15A100
Page 2 of 2

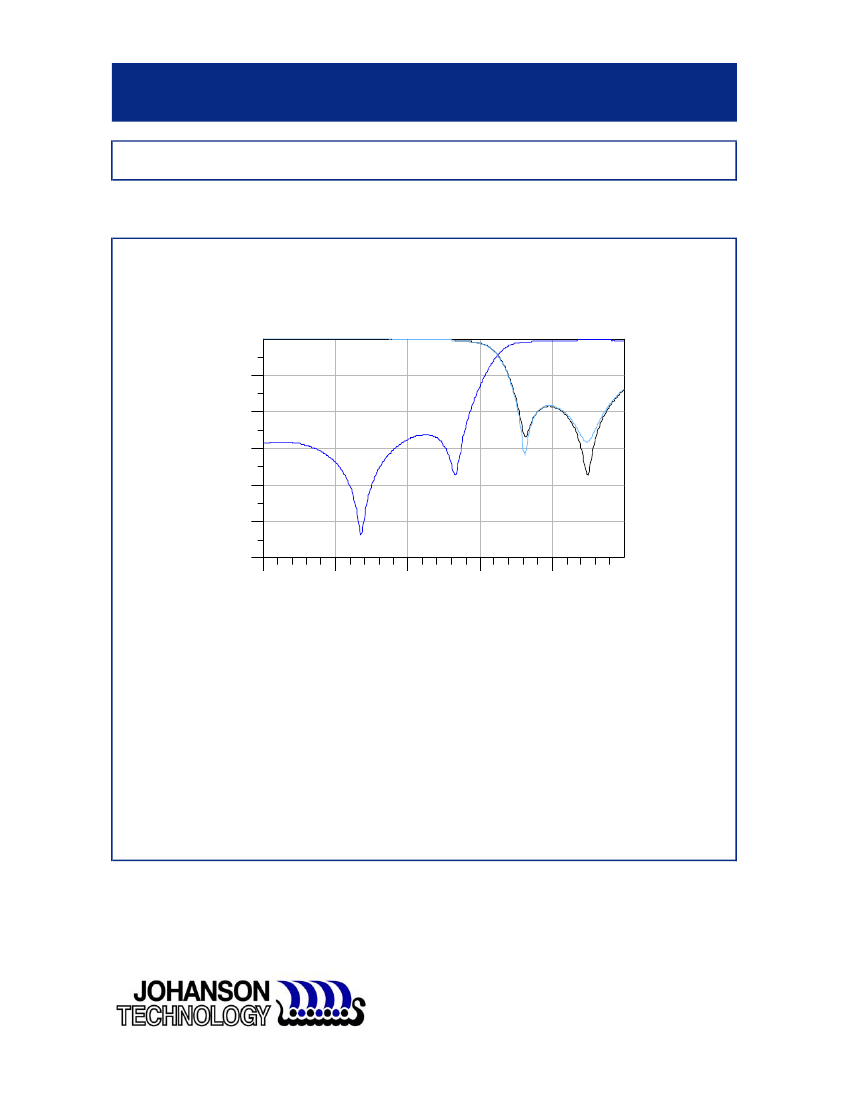

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
)
Insertion/Return Loss
)
)
)
)
)
)
)
)
)
0
)
)
)
)
)
)
-10
dB(S(2,2))
dB(S(1,1))
dB(S(2,1))
)
)
)
)
)
)
)
-20
-30
-40
-50
-60
0.5
1.0
1.5
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
2.0
)
)
2.5
3.0
freq, GHz
)
)
)
)
)
)
)
)
)
)
