2450LP07A0100S: Description2.45 GHz Low Pass Filter; File Size115KB，2 Pages; ManufacturerJohanson Dielectrics

Download Datasheet View All

2450LP07A0100S Overview

2.45 GHz Low Pass Filter

Preview

Download Datasheet

View All

Preliminary

"High Frequency Ceramic Solutions"

P/N 2450LP07A0100

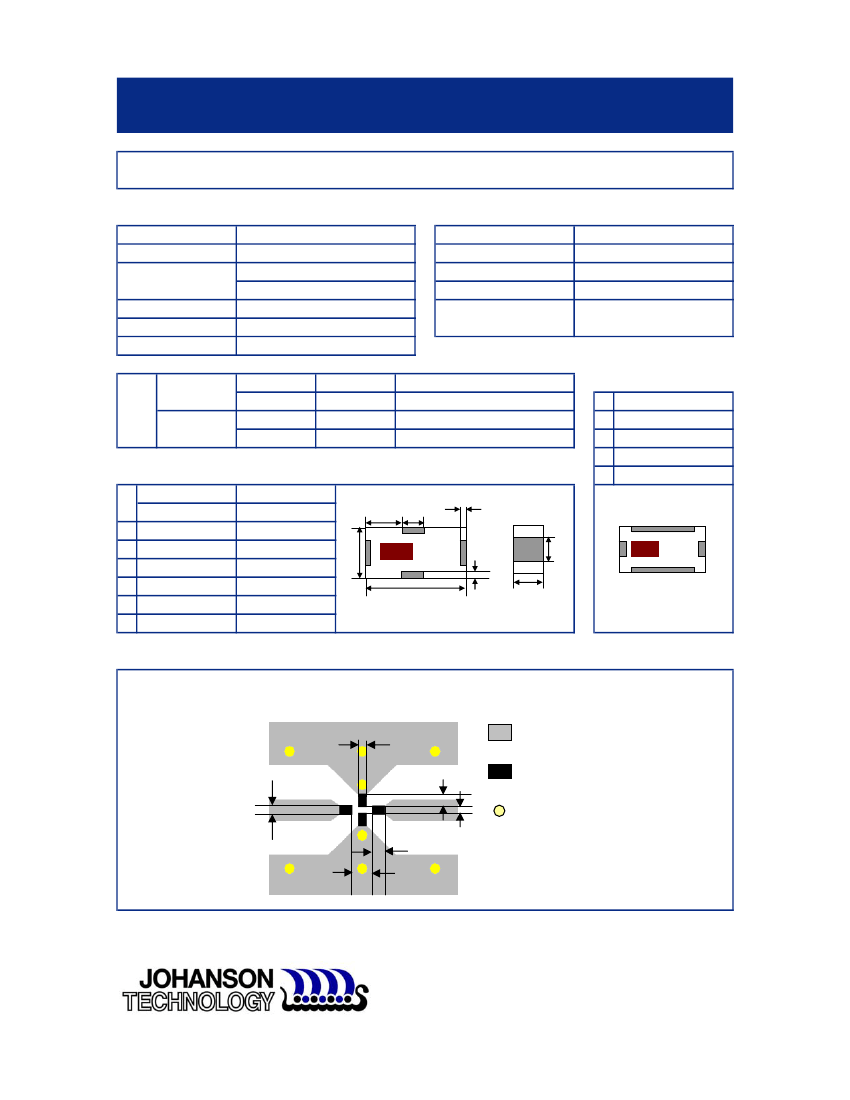

Page 1 of 2

2.45 GHz Low Pass Filter

Detail Specification: 03/12/09

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

Packaging

P/N

Style

Suffix Termination

2450LP07A0100

2400 - 2500

0.45 dB max. @ 25°C

0.55 dB max. @ -40~85°C

11.7 dB min.

21 dB @ 4800 - 5000 MHz

21 dB @ 7200 - 7500 MHz

Bulk

T&R

100% Tin

Tin / Lead

Suffix = S

Suffix = E

Suffix = None

Suffix = /Pb

Eg. 2450LP07A0100S

Eg. 2450LP07A0100E

Eg. 2450LP07A0100(E or S)

Eg. 2450LP07A0100(E or S)/Pb

Impedance

Reel Quantity

Input Power

Operating Temperature

Storage Temperature

Ω

10,000

2W max.

-40 to +85°C

+5 to +35°C, Humidity:

45-75%RH, 12 mos. Max

Terminal Configuration

No.

Function

GND

OUT

GND

Mechanical Dimensions

0.039 ± 0.002

0.020 ± 0.002

0.016 max.

0.012 ± 0.004

0.004 ± 0.002

0.014 ± 0.004

1.00 ± 0.05

0.50 ± 0.05

0.40 max.

0.30 ± 0.10

0.10 ± 0.05

0.35 ± 0.10

Mounting Considerations

Mount these devices with brown mark facing up.

Line width should be designed to provide 50

Ω

impedance matching characteristics.

Units: mm

0.3

Solder Resist

Land

Through-hole (

0.35)

0.45

0.3

0.45

0.2

0.7

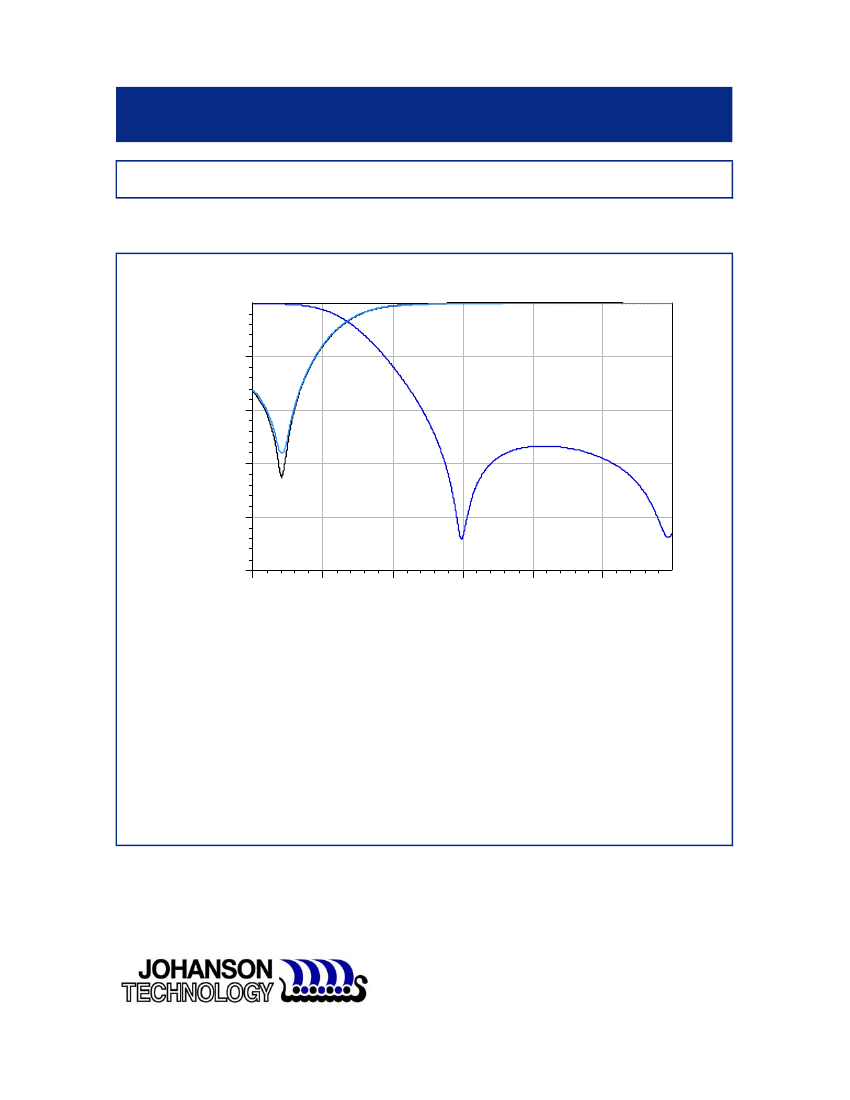

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
