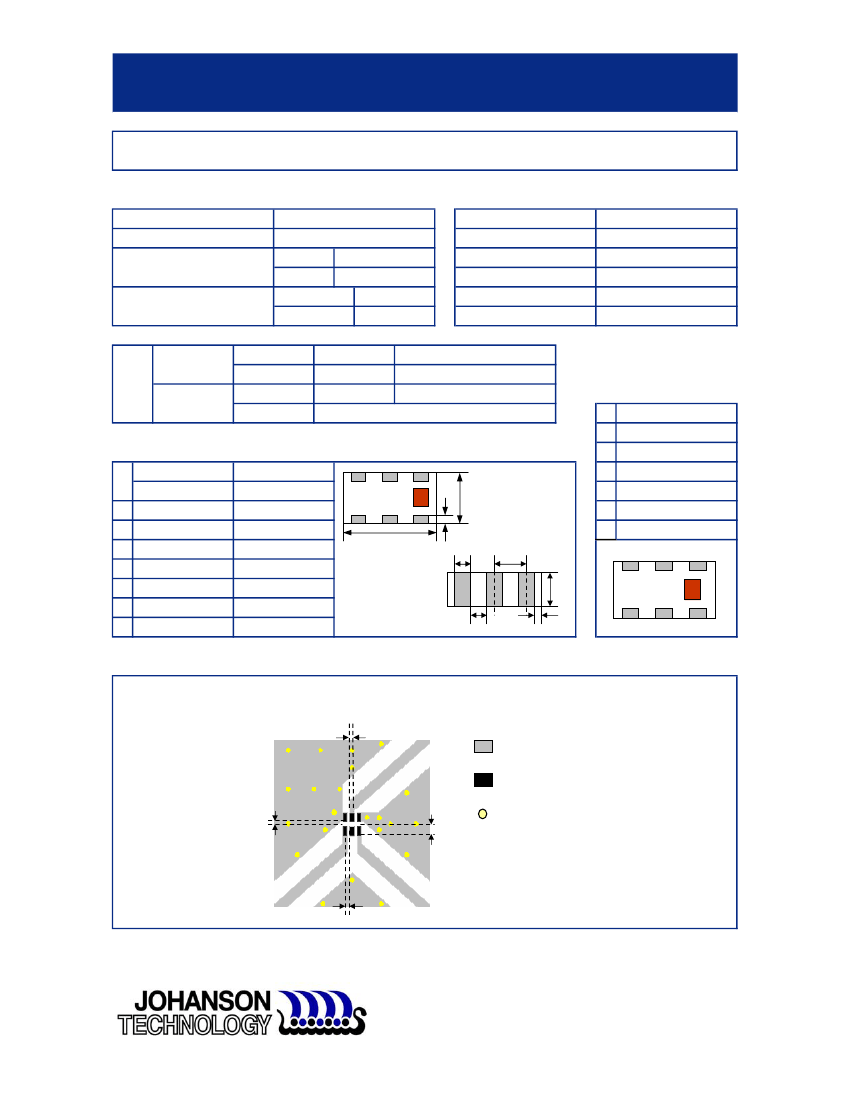

PRELIMINARY
2450 MHz Power Divider
Detail Specification: 08/10/07
P/N 2450PD14A0100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss @ BW
2450PD14A0100
2400 - 2500
OUT1
OUT2
4800 - 5000
7200 - 7500
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
3.4 ± 0.6
3.4 ± 0.6
8 dB min.
15 dB min.
Return Loss
Phase Balance
Isolation
Operating Temperature
Reel Quanity
Power Capacity
14 dB min.
0° ± 3
25 dB min.
-40 to +85°C
4,000
500 mW max.
Attenuation
P/N
Suffix Termination
Style
Packaging
Style
Eg. 2450PD14A0100S
Eg. 2450PD14A0100E
Eg. 2450PD14A0100(E or S)
Terminal Configuration
No.
1
Function
GND
IN
Please consult Factory
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.063 ± 0.004
0.031 ± 0.004
0.024 ± 0.004
0.008 ± 0.004
0.008 +.004/-.006
0.006 ± 0.004
0.012 ± 0.004
0.020 ± 0.002
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.20 +0.1/-0.15
0.15 ± 0.10
0.30 ± 0.10
0.50 ± 0.05
g
b
T
L
W
2
3
4
5
6
a
p
GND
OUT1
NC or GND
OUT2
3
2
1
c
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
100 ohm external resistor is required between OUT1 and OUT2.
*
Line width should be designed to match 50
Ω
characteristic impedance, depending on PCB material and thickness.
0.25
*
0.3
0.55
Solder Resist
Land
Through-hole (
Φ
0.35)
*
0.25
*
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
PRELIMINARY
2450 MHz Power Divider
Detail Specification: 08/10/07
P/N 2450PD14A0100
Page 2 of 2

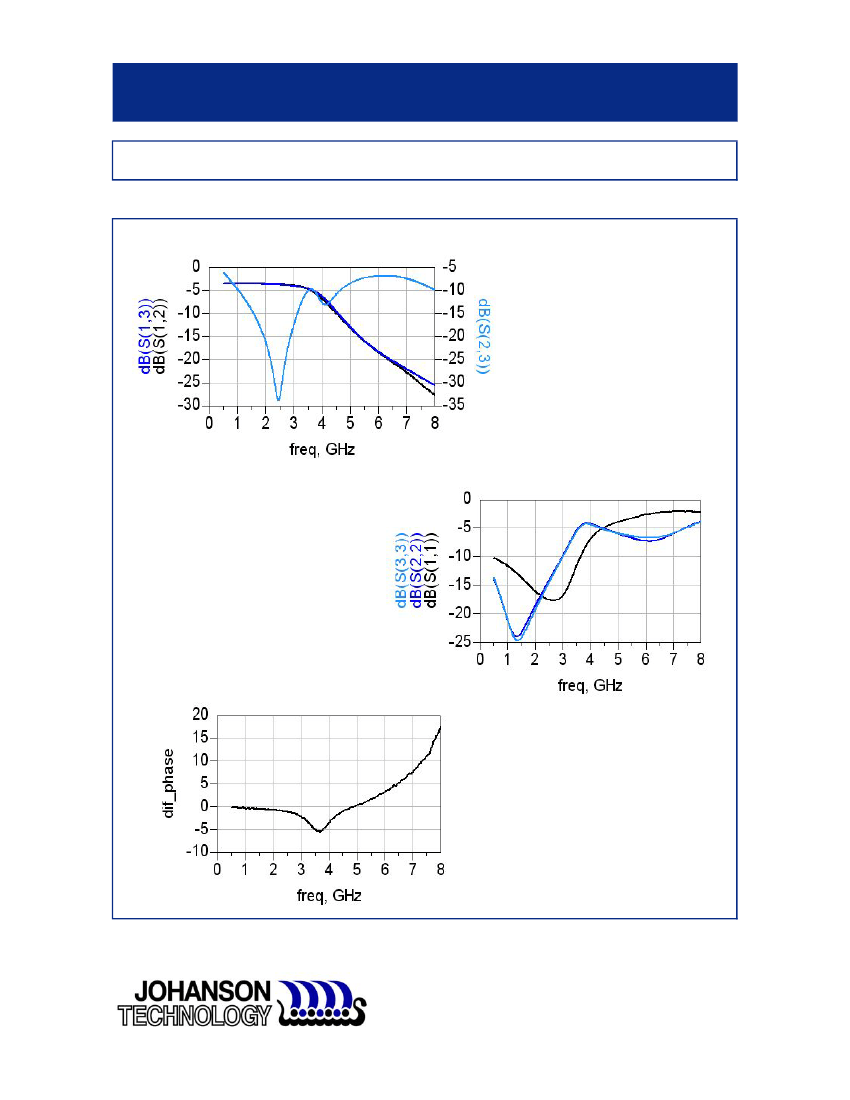

Typical Electrical Performance (T=25°C)
Attenuation & Isolation
)
)
)
)
)
)
)
Attenuation & Isolation
)
Return Loss
)
)
)
)
Phase Balance
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
