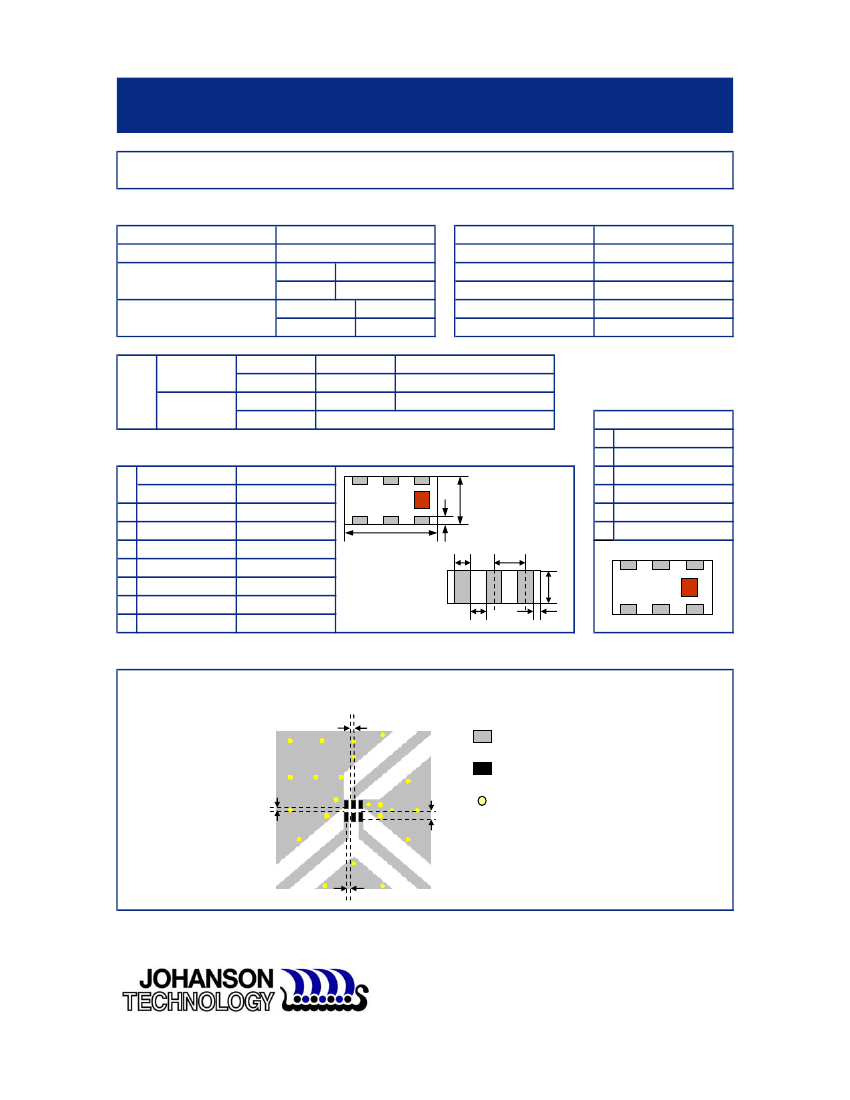

"High Frequency Ceramic Solutions"
2450 MHz Power Divider
Detail Specification: 12/19/08
P/N 2450PD14B0100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss @ BW
Attenuation
2450PD14B0100
2400 - 2500
OUT1
OUT2
4800 - 5000
7200 - 7500
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
3.4 ± 0.6
3.4 ± 0.6
10 dB min.
15 dB min.
Return Loss
Phase Balance
Isolation
Operating Temperature
Reel Quanity
Power Capacity
14 dB min.
0° ± 3
20 dB min.
-40 to +85°C
4,000
500 mW max.
P/N
Suffix Termination
Style
Packaging
Style
Eg. 2450PD14B0100S
Eg. 2450PD14B0100E
Eg. 2450PD14B0100(E or S)
Terminal Configuration
No.
1
2
Function
GND
IN
Please consult Factory
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.063 ± 0.004
0.031 ± 0.004
0.024 ± 0.004
0.008 ± 0.004
0.008 +.004/-.006
0.006 ± 0.004
0.012 ± 0.004
0.020 ± 0.002
mm
1.60 ± 0.10
0.80 ± 0.10
0.60 ± 0.10
0.20 ± 0.10
0.20 +0.1/-0.15
0.15 ± 0.10
0.30 ± 0.10
0.50 ± 0.05
g
b
T
L
W
3
4
5
6
a
p
GND
OUT1
NC or GND
OUT2
3
2
1
c
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
*
Line width should be designed to match 50
Ω
characteristic impedance, depending on PCB material and thickness.
0.25
*
0.3
0.55
Solder Resist
Land
Through-hole (
Φ
0.35)
*
0.25
*
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2008 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
2450 MHz Power Divider
Detail Specification: 12/19/08
P/N 2450PD14B0100
Page 2 of 2

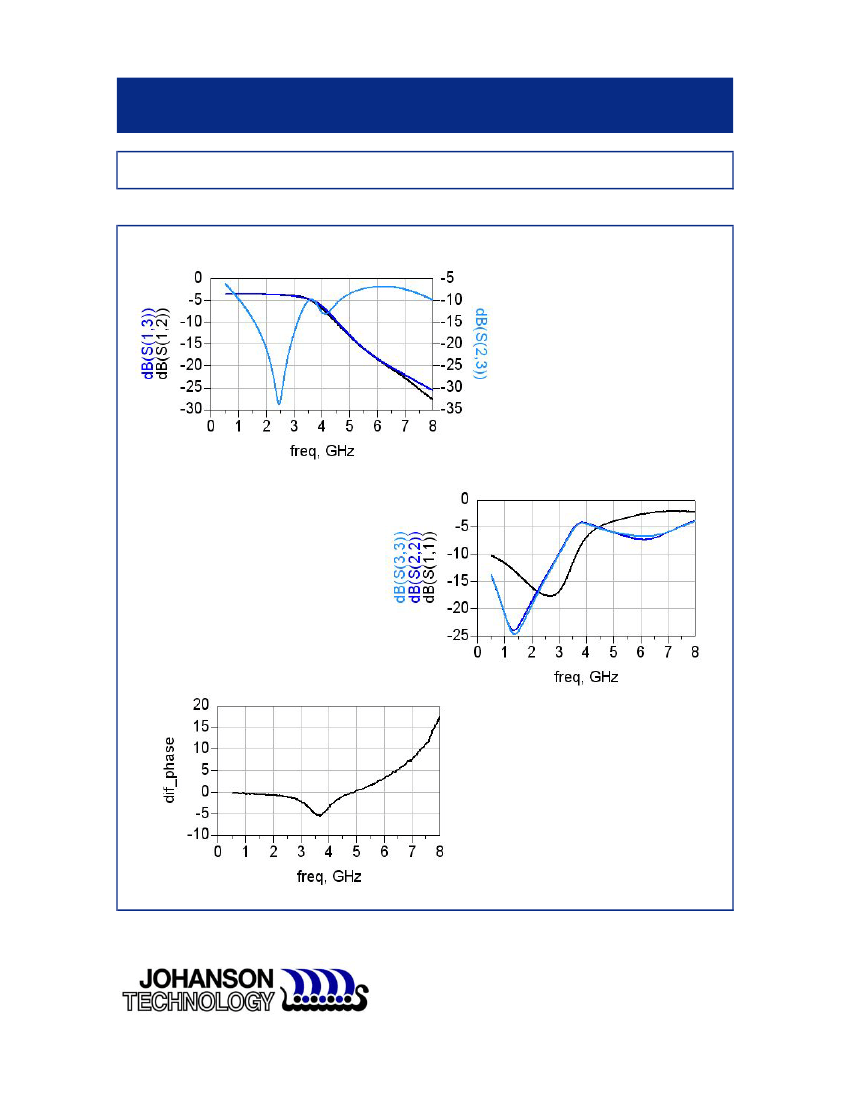

Typical Electrical Performance (T=25°C)
Attenuation & Isolation
Return Loss
Phase Balance
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2008 Johanson Technology, Inc. All Rights Reserved
